Dake

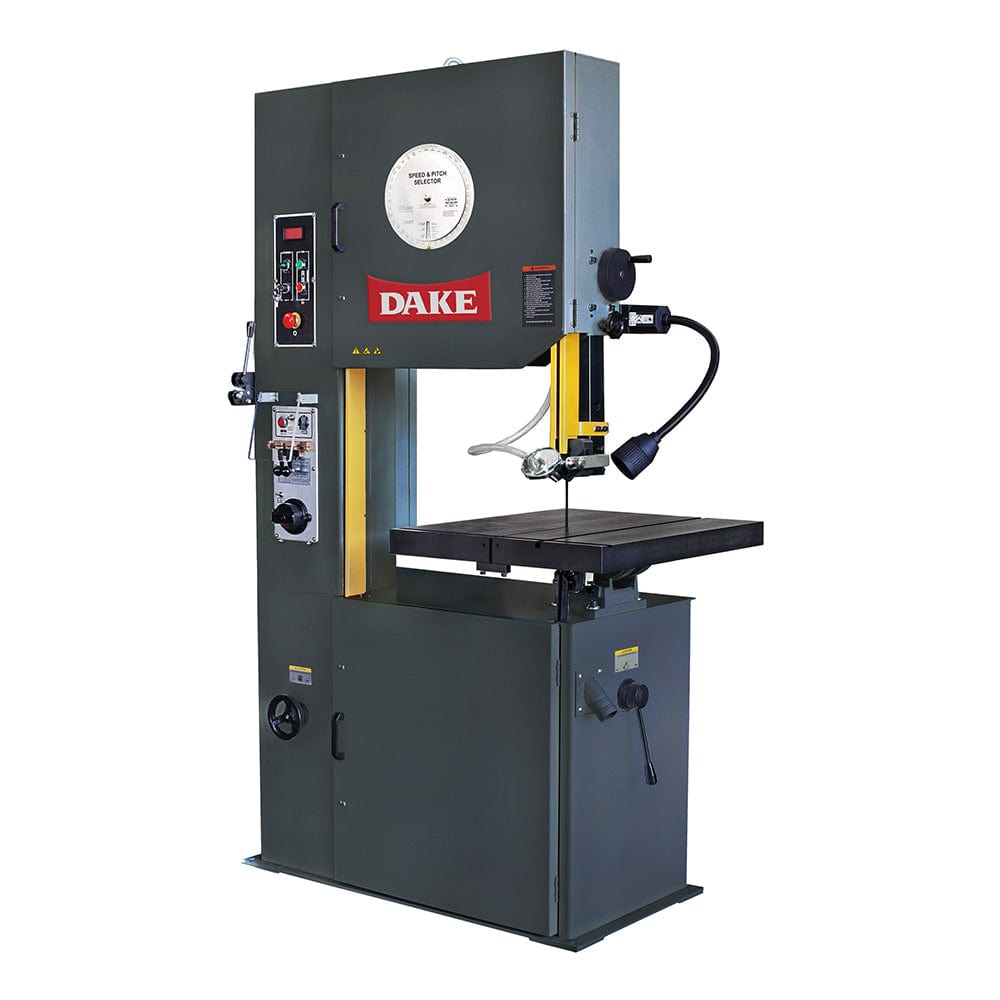

26" Throat Vertical Bandsaw- Electric Power Table- 220V 3 Ph

Item #194342 Model D-987032
Regular price $19,995.00
Sale price $19,995.00 Regular price $19,995.00

This item has an additional shipping charge

Skip to product information
New
1 of 1

Dake

26" Throat Vertical Bandsaw- Electric Power Table- 220V 3 Ph

Item #194342 Model D-987032
Regular price $19,995.00
Sale price $19,995.00 Regular price $19,995.00

This item has an additional shipping charge

This heavy duty vertical bandsaw is designed for large production pieces. A 26" capacity, power feed table, and variable speeds offer cutting capabili. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.

Details

This heavy duty vertical bandsaw is designed for large production pieces. A 26" capacity, power feed table, and variable speeds offer cutting capabilities for many applications. Additional features include a digital tachometer, speed and pitch selector, rip fence, miter gauge, and 4 cutting modes. Complete with a built in welder/grinder/cutter this saw is sure to get the job done.
*440V model requires step-down transformer for operation (part number: 300674) Sold Separately

Features:
  • Variable Speeds with 50 - 415 feet per minute in low range and 550 - 5,000 feet per minute in the high range
  • Electronic Power Fed Table. Torque motor driven with rack and pinion
  • Heavy cast table with chip clearance grooves and back stop bar
  • Low voltage controls, main power lock out switch and door limit switches
  • Rip Fence, miter gauge, circle cutting attachment
  • Built in blade welder with grinder and shear to easily fix broken blades
  • Blade speed / pitch selector guide and digital tachometer
  • Work light comes standard for increased visibility
Specifications:
  • Horsepower: 3
  • Voltage: 220V
  • Blade Width: 1/4"-1"
  • Blade Length: 184 1/4"
  • Blade Speed: 550-5000 fpm
  • Worktable Travel Distance: 12"
  • Band Wheels Number: 2
  • Band Wheels Size: 26 1/4"
  • Throat Size (band to column): 26"
  • Maximum Work Height: 13"
  • Work Table Dimensions: 23 1/2" x 27 1/2"
  • Worktable Tilt: 45° R / 10°L
  • Worktable Height: 39 3/8"
  • Machine Height: 84"
  • Machine Floor Space: 51" x 32"
  • Weight: 1540 lbs
  • 440V model requires step-down transformer for operation (part number: 300674) - Sold Separately
What's Included:
  • Heavy Duty Frame
  • Rip Fence
  • Work Light
  • Blade Welder / Grinder / Shear
  • Speed Indicator (Digital Readout)
  • Blade Tension Indicator
  • Digital Tachometer
  • Chip Blower & Blade Brush
  • 1 Standard Blade

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
  • Liftgate and Residential Delivery is covered with the excess weight fee, and the freight company will call the day before delivery to set up a time at no charge to you.

Return Information

Laguna does not accept returns. If your shipment was damaged, please refuse delivery, for defective items, please contact Woodcraft Supply customer service @ 1-800-535-4482.

Warranty Information

New woodworking machines sold by Laguna Tools carry a two-year warranty effective from the date of shipping. Laguna bandsaw blades' welds are backed by their 1-yr manufacturer's warranty. Machines sold through dealers must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. Laguna Tools guarantees all new machine sold to be free of manufacturers’ defective workmanship, parts and materials. Laguna Tools will repair or replace, without charge, any parts determined by Laguna Tools, Inc. to be a manufacturer’s defect. They require that the defective item/part be returned to Laguna Tools with the complaint. In the event the item/part is determined to be damaged due to lack of maintenance, cleaning or misuse/abuse, the customer will be responsible for the cost to replace the item/part, plus all related shipping charges.

For warranty repair information, call 1-800-332-4094.
