Dake

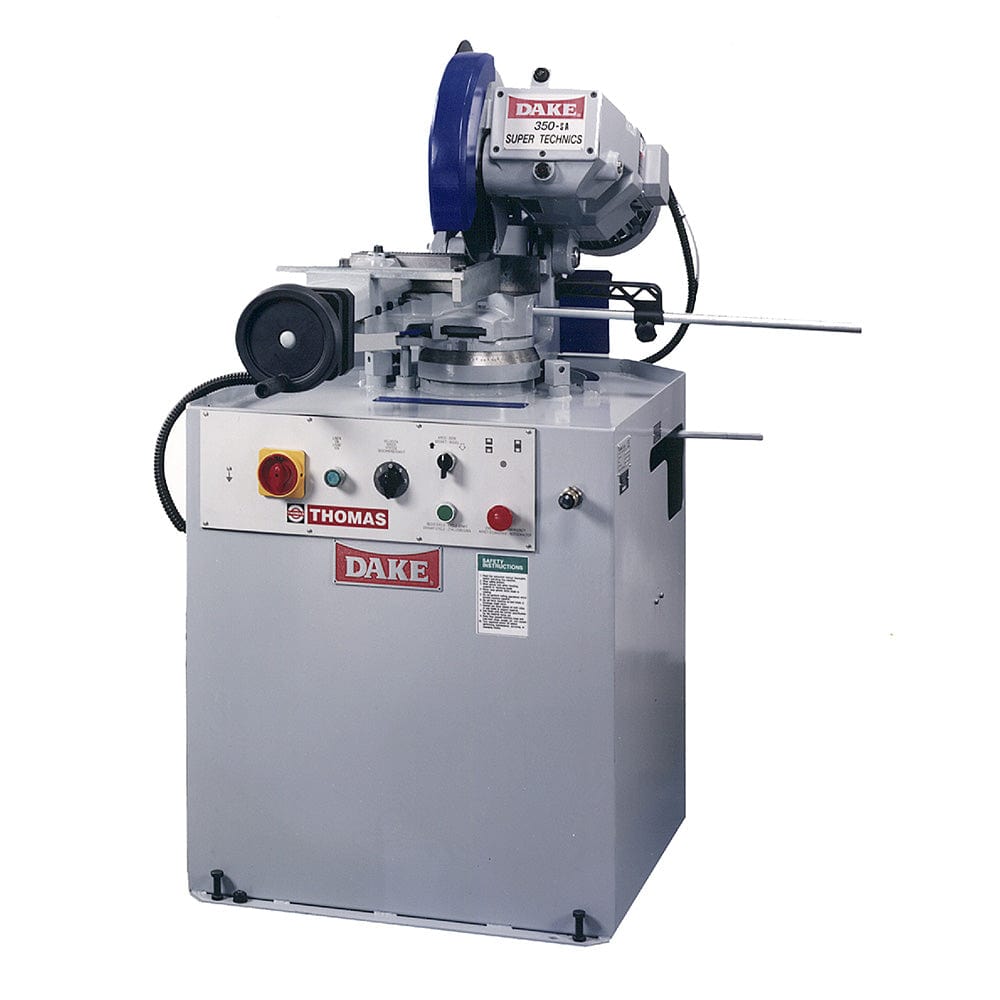

14" Semi-Automatic Cold Saw Variable Speed- 220V 3 Ph

Item #194359 Model D-974355
Regular price $14,195.00
Sale price $14,195.00 Regular price $14,195.00

This item has an additional shipping charge

Skip to product information
New
1 of 1

Dake

14" Semi-Automatic Cold Saw Variable Speed- 220V 3 Ph

Item #194359 Model D-974355
Regular price $14,195.00
Sale price $14,195.00 Regular price $14,195.00

This item has an additional shipping charge

Semi-automatic cold saw that has a push-button or foot switch activation, an oversized pedestal base, shroud enclosed head feed cylinder, adjustable p. . . View More Details

Ships from Manufacturer

Shipping Info

Purchase Note: This machine requires 3-phase power. Most residential power is single or 1-phase. Verify your power requirements before ordering.

Details

Semi-automatic cold saw that has a push-button or foot switch activation, an oversized pedestal base, shroud enclosed head feed cylinder, adjustable pneumatic vise. Variable speed controlled by a frequency inverter increases the material cutting range.

Features:
  • Push button or foot-switch activation to avoid operator fatigue
  • Shroud enclosed head feed cylinder with sliding cams for fast cutting stroke adjustment
  • Additional ball bearing support of hardened and ground spindle shaft to prevent failure
  • Adjustable pneumatic vise with sliding gib to true up clamping under blade with 1/4 stroke
  • Oversized pedestal base to reduce vibration
  • Head rotates 45º right and 60º left of center for easy miter cutting
  • Removable hardened, serrated vise jaw faces
  • Ability to add a programmable feed system to make fully automatic with wide range of capabilities
Specifications:
  • Voltage: 220V
  • Horsepower: 3.5 max
  • Cutting Ability: Ferrous/Non-Ferrous/Plastic
  • Maximum Blade Diameter: 14”
  • Maximum Vise Opening: 6-5/8"
  • Maximum Feed Vise Opening: n/a
  • Maximum Angle: 60° left/ 45° right
  • Slotting: No
  • Phase: 3
  • Speeds: 20-105 rpm
  • Weight: 890 lbs
  • Solid Round 90˚ Capacity: 3-3/8”
  • Solid Round 45˚ Capacity: 3”
  • Tube 90˚ Capacity: 4-3/4"
  • Tube 45˚ Capacity: 4”
  • Square 90˚ Capacity: 4-1/8”
  • Square 45˚ Capacity: 3-3/8”
  • Rectangle 90˚ Capacity: 6-1/4” x 3-1/2”
  • Rectangle 45˚ Capacity: 3-3/8” x 2-3/4”
  • Work Height: 36-3/4”
  • Height: 60”
  • Width: 33”
  • Depth: 50”
  • 440V model requires step-down transformer for operation (part number: 300674) Sold Separately
What's Included:
  • Blade
  • Coolant
  • Tools kit for changing blades
  • Instruction and service manual
  • Adjustable positive stop
