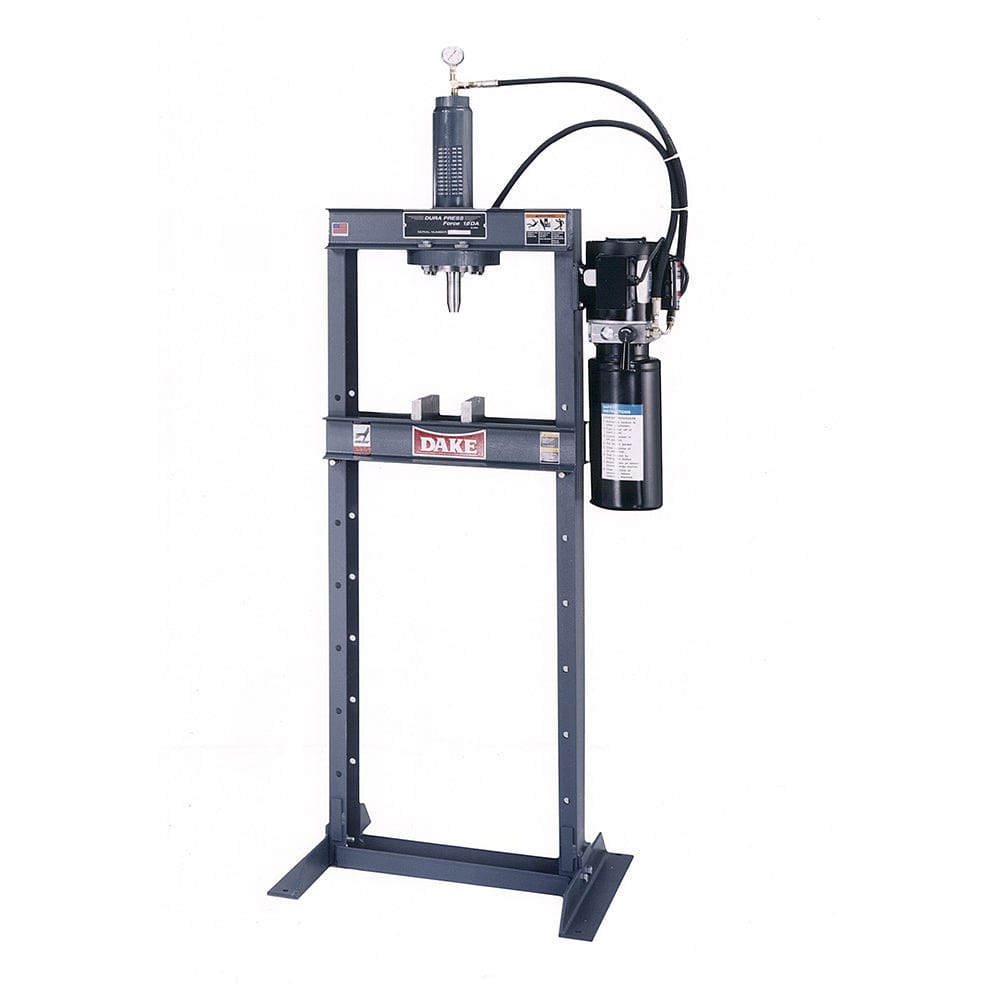

Take your workshop to the next level with the Dake Electrically Operated H-Frame - 110V - 1 Ph - 10-Ton . Designed for both woodworking and metalworking, this heavy-duty press operates on standard 110V, 1-phase power, making it a versatile addition to any shop. Whether you're working on precision pressing, bending, or straightening, this press delivers the power and control you need. Table height adjusts for proper positioning. The three-point lever provides single-handed control over ram movement. A double-acting cylinder moves the ram during the downstroke and the return, providing smooth movement in both directions and enabling precise positioning.

• Electric power unit has convenient single phase, 110 volt operation for greater portability
• Lever control ram advance for easy operation
• Double acting cylinder allows for convenient positioning of ram
• Sturdy, welded channel iron frame for durability
• Quiet, low pressure hydraulic components for greater efficiency and smooth pressing
• One hand ram positioning with 4-way valve hydraulic control

• Capacity: 10 tons
• Operation: Electric
• Horsepower: 1
• Voltage: 110V, Single Phase
• Width Between Uprights: 20”
• Width Between Table Channels: 4”
• Minimum Ram to Table: 4”
• Maximum Ram to Table: 40”
• Ram travel: 10"
• Screw Travel: n/a
• Horizontal Workhead Travel: Fixed
• Footprint: 29-3/4” x 24"
• Height: 80"
• Weight: 300 lbs
• Base: 29-3/4” x 24"
• Ram Advance Speed: n/a
• Pressing Speed: 20 ipm
• RPM: 3,450
• Air Pressure: n/a

• Frame
• Safety Relief Valve
• 2 Combination Table Plate/V-Blocks
• Pressure Gauge
