California Air Tools

4HP 20 Gallon Oil-Free Compressor with Air Drying System and Auto Drain Valve in Soundproof Cabinet

Item #173570 Model CAT-20040DSPCADC
Regular price $5,441.00
Sale price $5,441.00 Regular price $5,441.00

This item has an additional shipping charge

Skip to product information
1 of 7

California Air Tools

4HP 20 Gallon Oil-Free Compressor with Air Drying System and Auto Drain Valve in Soundproof Cabinet

Item #173570 Model CAT-20040DSPCADC
Regular price $5,441.00
Sale price $5,441.00 Regular price $5,441.00

This item has an additional shipping charge

The California Air Tools 20040DSPCADC Ultra Quiet, Ultra Dry Oil-Free Air Compressor with Air Drying System in a Soundproof Cabinet is designed to be . . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer

Shipping Info

Items you may need

  • Hybrider Flex 1/4" 50ft Hybrid Air Hose with Quick Connect Air Fittings

    Regular price $39.99
    Sale price $39.99 Regular price $39.99
    Hybrider Flex 1/4" 50ft Hybrid Air Hose with Quick Connect Air Fittings alt 0
  • Hybrider Flex 1/4" 25ft Hybrid Air Hose with Quick Connect Air Fittings

    Regular price $29.99
    Sale price $29.99 Regular price $29.99
    Hybrider Flex 1/4" 25ft Hybrid Air Hose with Quick Connect Air Fittings alt 0

Details

The California Air Tools 20040DSPCADC Ultra Quiet, Ultra Dry Oil-Free Air Compressor with Air Drying System in a Soundproof Cabinet is designed to be one of the quietest 4.0 HP air compressors in the industry having only 65 decibels of sound. The two powerful 2.0 HP motors operate at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.


The Oil-Free Dual Piston Pump System is engineered for high performance and durability. The CAT-20040DSPCADC Air Compressor has an Oil-Free Dual Piston pump designed to have a life cycle before wear of over 3000 hours. The Oil-Free pump allows for use in a variety of temperatures (cold starts) and eliminates oil from being in the air.

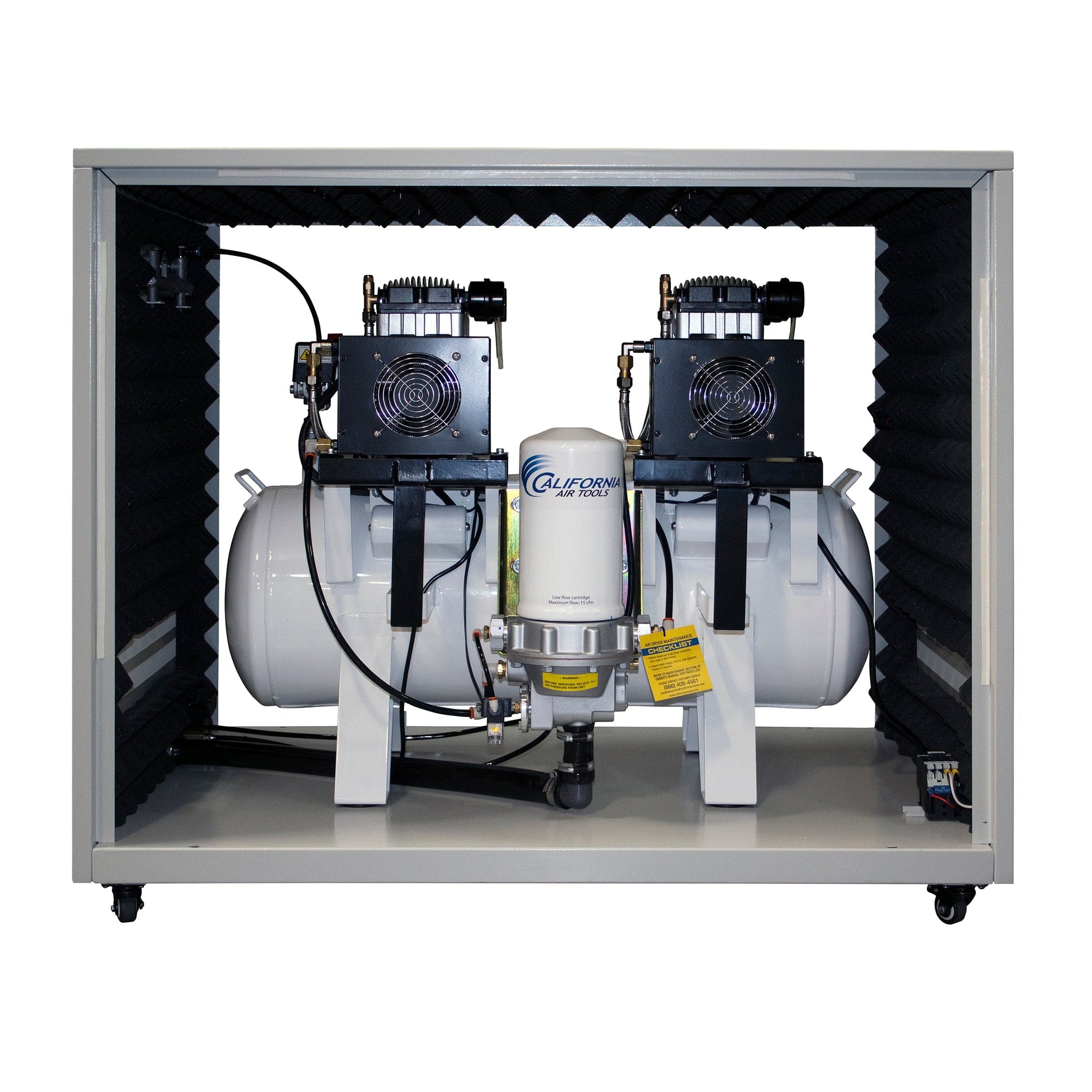

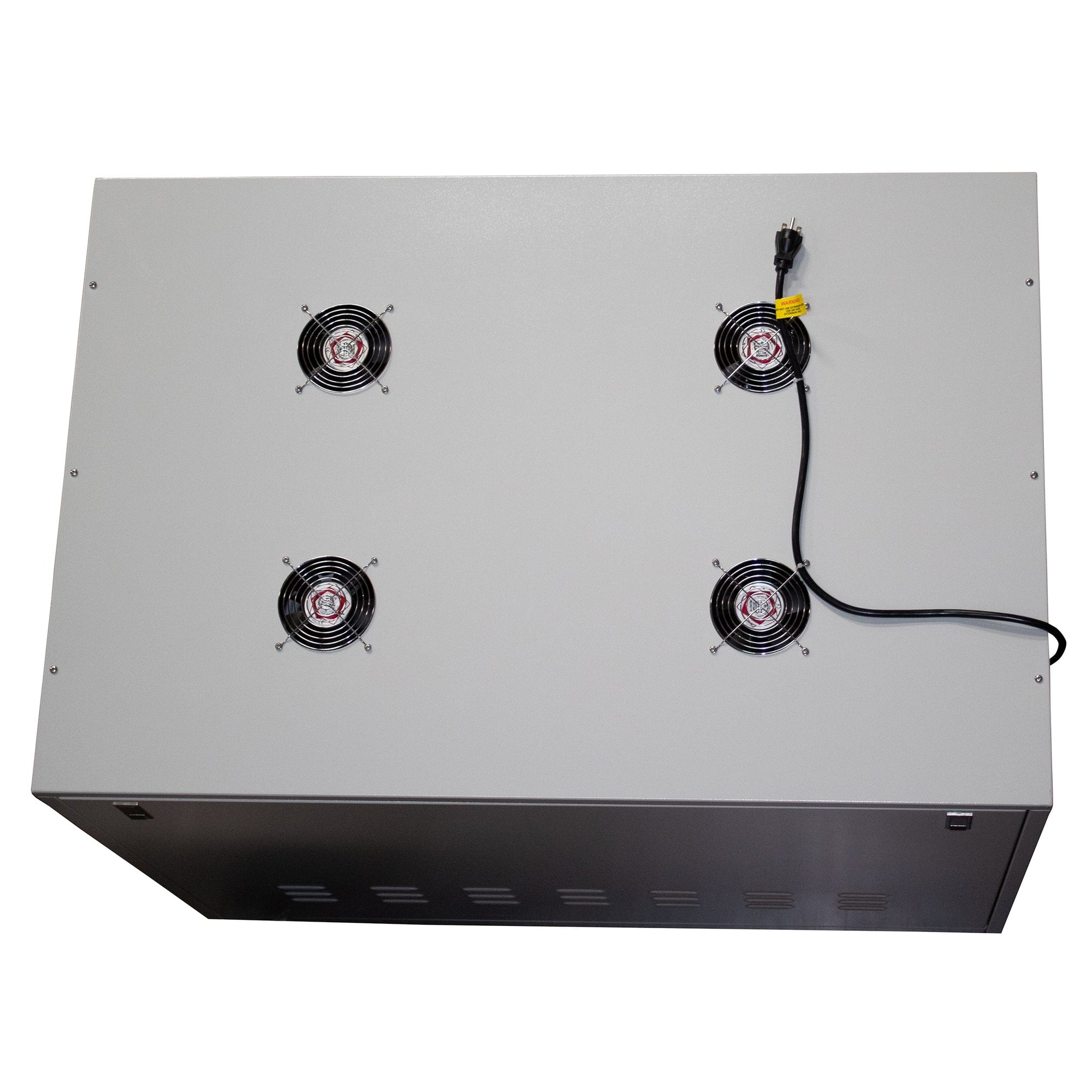

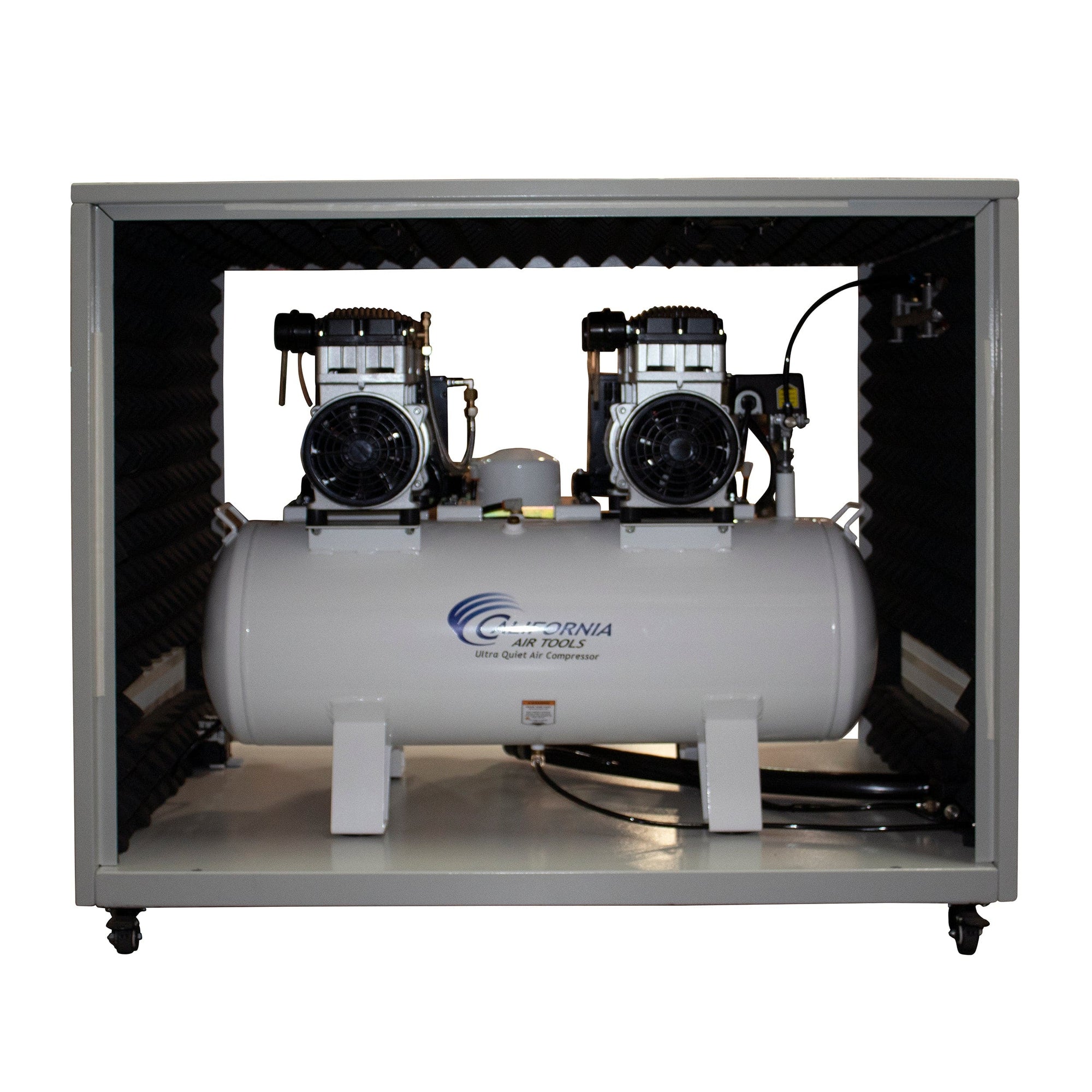

The sturdy steel soundproof cabinet has a large 20-gallon steel air tank and caster wheels that makes it easy to move. The interior of the cabinet is lined with acoustic soundproofing foam insulation to reduce the air compressor's noise and vibration. The two latching door handles allow for easy access to the air compressor. The four exhaust fans are designed to remove the air from the cabinet for a cooler running air compressor.


The Air Dryer is specially designed to remove up to 98% of the water vapor from the air to protect sensitive tools and machinery. To dry the air from the air compressor, an aftercooler and dryer are utilized. The aftercooler is a heat exchanger for cooling the discharge air from the air compressor. The water vapor from the compressed air is condensed into liquid form and pushed into the Air Dryer. The easy to replace "Spin-On" Air Dryer Cartridge has a regenerating High-Temperature Molecular Sieve Desiccant to dry the air. This cartridge dryer has a life of 2 years before replacement.


The California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. Designed for the person looking for power, dry air, air flow and less service with at least 30% less noise!


Features



  • Ultra quiet - only 65 decibels
  • Oil-free pump for less maintenance and costs
  • Includes a sound proof cabinet, auto drain, ultra dry air dryer, aftercooler

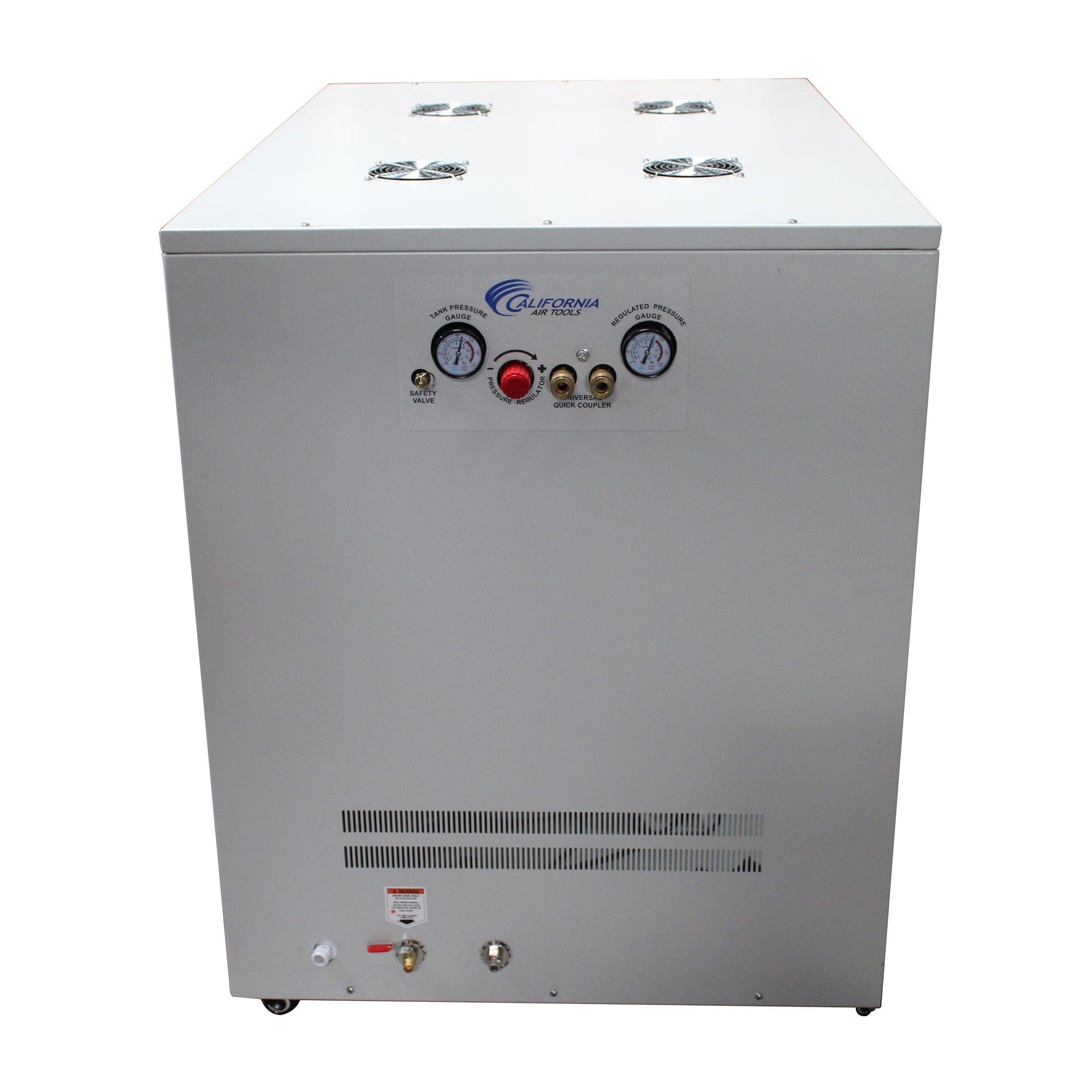

  • Two pressure control gauges
  • Thermal overload protector
  • Less time to fill the tank - only 150 seconds
  • Low vibration - motor speed of 1680 RPM
  • Less heat - dissipates heat more efficiently
  • Extra large dual piston pump for increased compression
  • Extra long pump life of over 3000 hours
  • Oil-free pump allows you to use in different temperatures & terrains

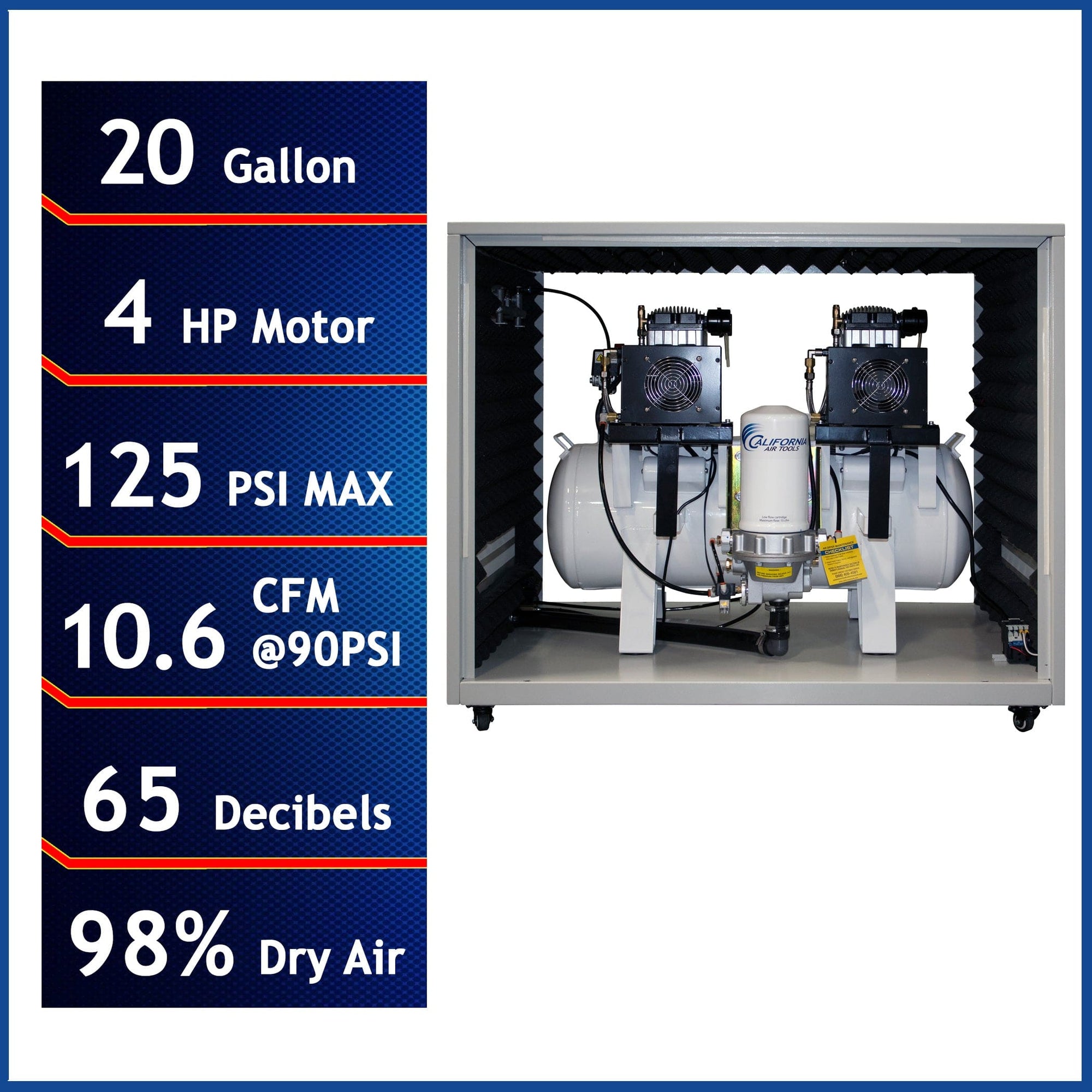

Specifications



  • 20.0 gallon steel tank
  • Two powerful 2.0 HP (rated / running) motors
  • 12.80 CFM @ 40 PSI
  • 10.60 CFM @ 90 PSI
  • Maximum pressure: 125 PSI
  • PDP performance range: -20° F. to -51° F.
  • Air Quality: ISO 8573 - Class 2.3.1.
  • One 1/4" industrial quick connector
  • Low amp draw: 14 amps, 220 volts, 60 hertz
  • Weight: 375 lbs.


Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-10 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

Unused items can be returned within 30 days of the order date. A 10% Restocking Fee will be charged for all returns. If you have a return issue, contact Woodcraft's customer service department @ 1-800-535-4482.

Warranty Information

California Air Tools products are covered by their 1 Year Limited Warranty. For more details, please contact California Air Tools @ 866-409-4581.
