California Air Tools

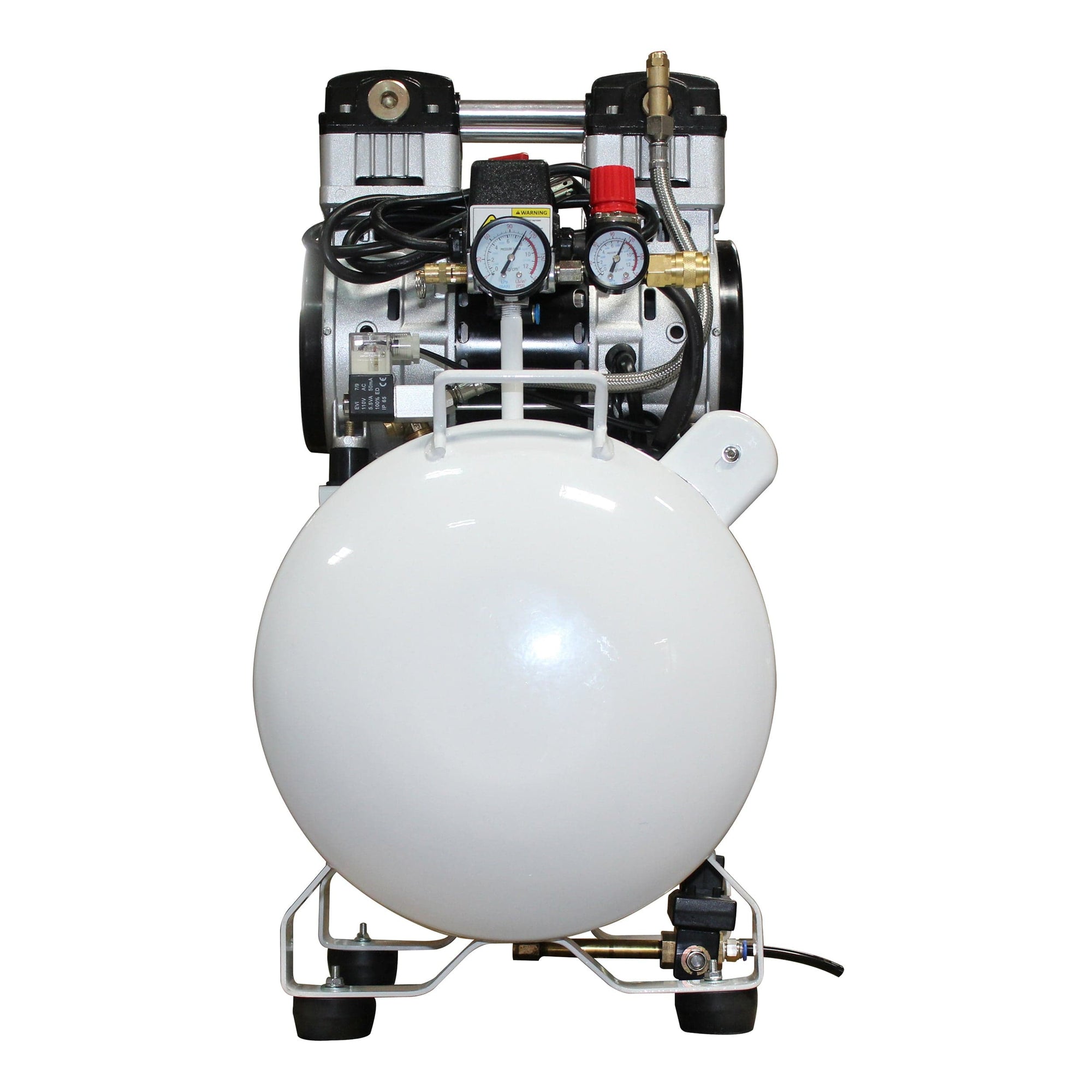

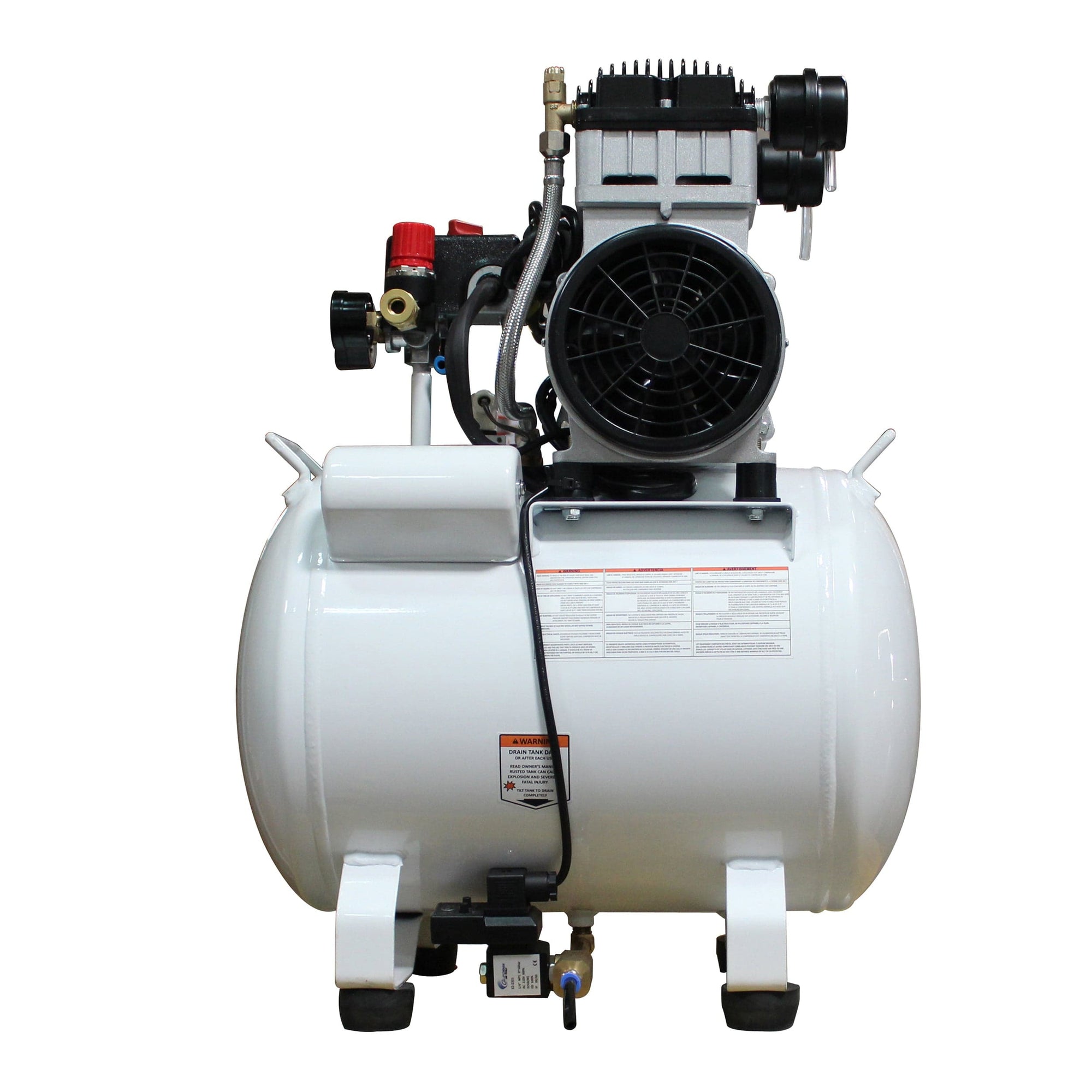

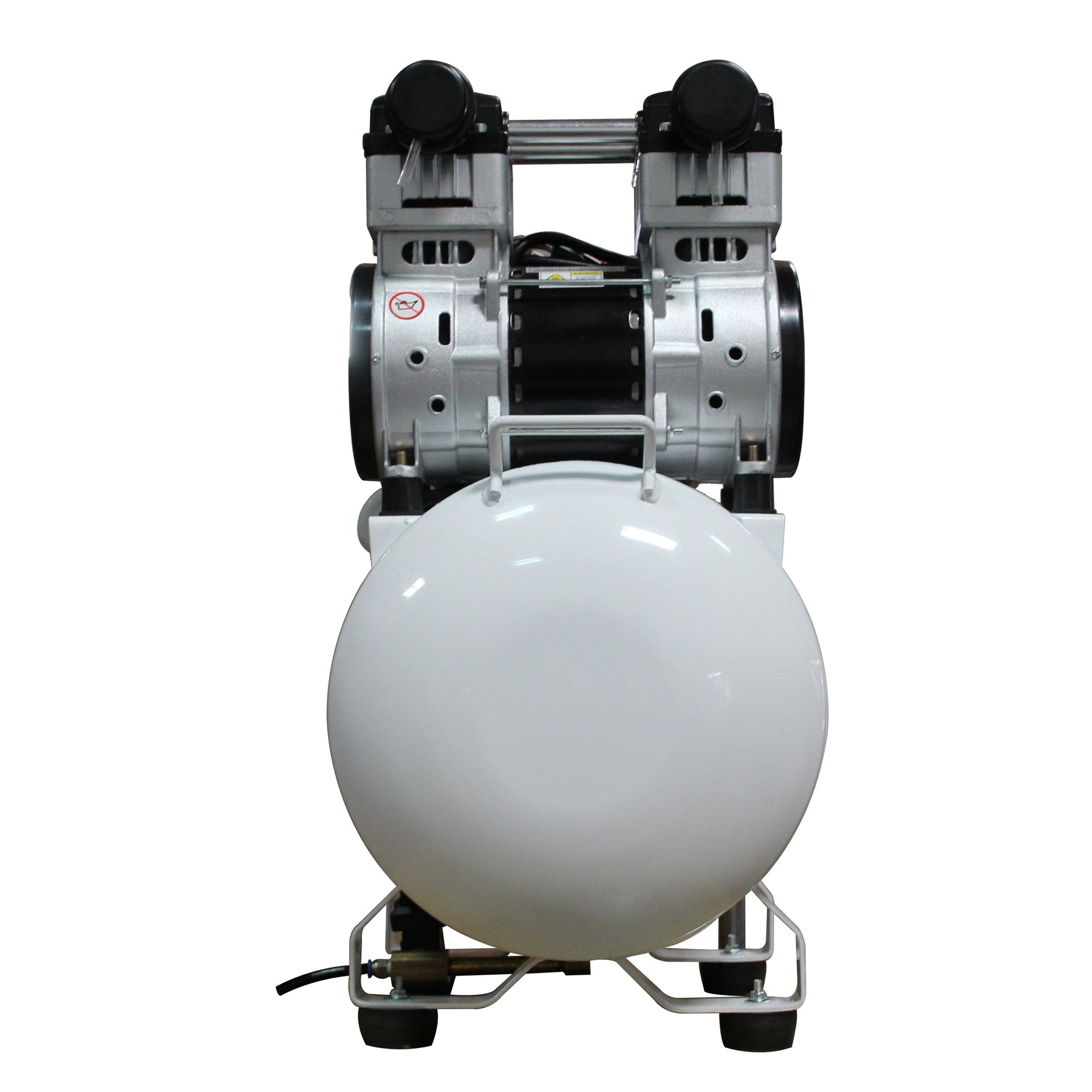

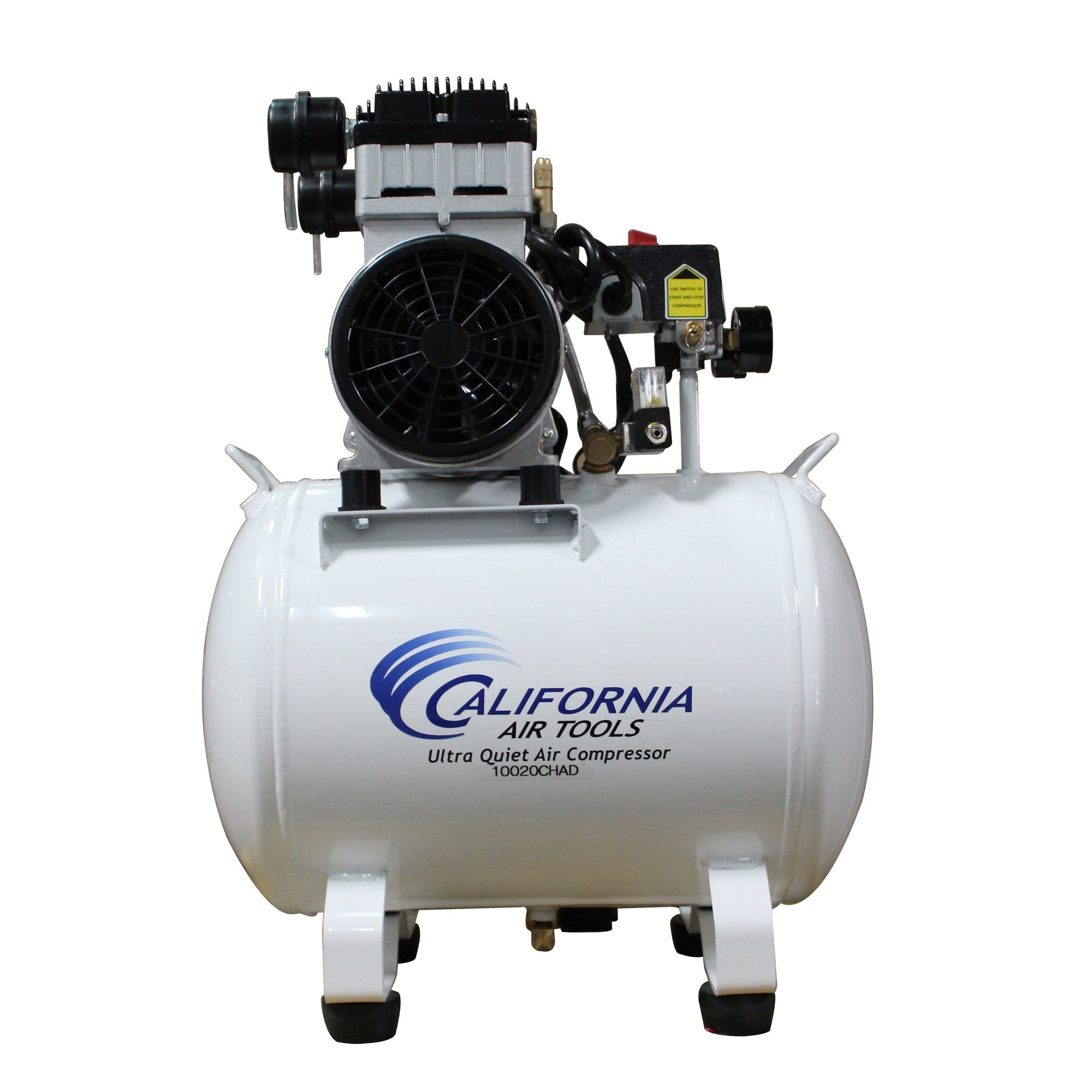

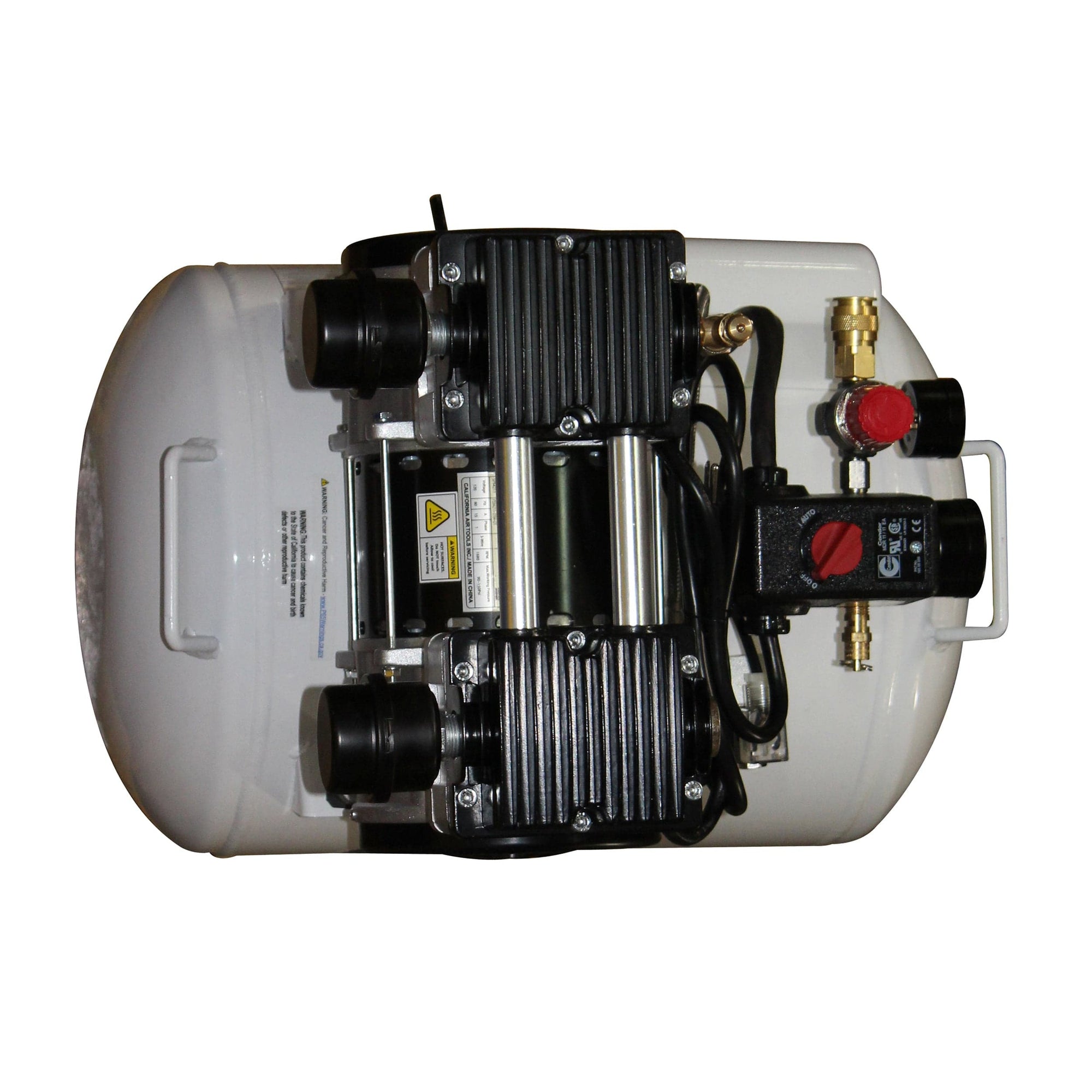

2HP 220V 10 Gallon Oil-Free Steel Tank Air Compressor with Auto Drain Valve

Item #173562 Model CAT-10020CHAD-22060
Regular price $551.00
Sale price $551.00 Regular price $551.00
Skip to product information
1 of 6

California Air Tools

2HP 220V 10 Gallon Oil-Free Steel Tank Air Compressor with Auto Drain Valve

Item #173562 Model CAT-10020CHAD-22060
Regular price $551.00
Sale price $551.00 Regular price $551.00
The California Air Tools 10020CHAD-22060 Ultra Quiet and Oil-Free Air Compressor is designed to be one of the quietest 2. 0 HP air compressors in the i. . . View More Details

Enjoy Extended Coverage with a Woodcraft Protection Plan

Ships from Manufacturer

Shipping Info

Items you may need

  • Hybrider Flex 1/4" 50ft Hybrid Air Hose with Quick Connect Air Fittings

    Regular price $39.99
    Sale price $39.99 Regular price $39.99
    Hybrider Flex 1/4" 50ft Hybrid Air Hose with Quick Connect Air Fittings alt 0
  • Hybrider Flex 1/4" 25ft Hybrid Air Hose with Quick Connect Air Fittings

    Regular price $29.99
    Sale price $29.99 Regular price $29.99
    Hybrider Flex 1/4" 25ft Hybrid Air Hose with Quick Connect Air Fittings alt 0

Details

The California Air Tools 10020CHAD-22060 Ultra Quiet and Oil-Free Air Compressor is designed to be one of the quietest 2.0 HP air compressors in the industry having only 70 decibels of sound. The powerful 2.0 HP motor (220v 60hz) operates at only 1680 RPM creating less noise and less wear. The SP Series of Ultra Quiet Air Compressor Motors have been designed to increase duty cycle and allow for longer continuous run times.

The oil-free dual piston pump system is engineered for high performance and durability. The CAT-10020CHAD-22060 Air Compressor has an oil-free dual piston pump designed to have a life cycle before wear of over 3000 hours. The oil-free pump allows for use in a variety of temperatures (cold starts) and uneven terrains (no oil in the pump).

The easy start valve feature allows for a easier start up using less starting amps. The easy start valve releases a small amount of air from the pump at start up to produce a no-load condition allowing the motor to spin freely. This no-load start up requires less amps for a easier start up in cold temperatures.

The large, low profile 10 gallon steel horizontal air tank makes storing under a bench, desk or shelf very easy. The factory installed California Air Tools EZ-1 Automatic Drain Valve has been designed to eliminate manually draining your air compressor air tank. The manually set timer allows you to set the time for both the frequency and duration of the draining process. The 10020CHAD-22060 is designed for the person looking for power, air flow, less service and maintenance with at least 30% less noise!

Features
  • Ultra quiet - only 70 decibels
  • Oil-free pump for less maintenance and costs
  • Portable and easy to store
  • Two pressure control gauges
  • Thermal overload protector
  • Less time to fill the tank - only 120 seconds
  • Low vibration - motor speed of 1680 RPM
  • Less heat - dissipates heat more efficiently
  • Extra large dual piston pump for increased compression
  • Extra long pump life of over 3000 hours
  • Oil-free pump allows you to use in different temperatures and terrains
Specifications
  • 10.0 gallon steel tank
  • Powerful 2.0 HP (rated / running) motor
  • 6.40 CFM @ 40 PSI
  • 5.30 CFM @ 90 PSI
  • Maximum pressure: 125 PSI
  • One 1/4" Universal Quick Connector
  • Low amp draw: 7.0 amps, 220 volts, 60 hertz
  • Weight: 82.75 lbs.

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-10 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

Unused items can be returned within 30 days of the order date. A 10% Restocking Fee will be charged for all returns. If you have a return issue, contact Woodcraft's customer service department @ 1-800-535-4482.

Warranty Information

California Air Tools products are covered by their 1 Year Limited Warranty. For more details, please contact California Air Tools @ 866-409-4581.

Instructions / MSDS

Reviews
