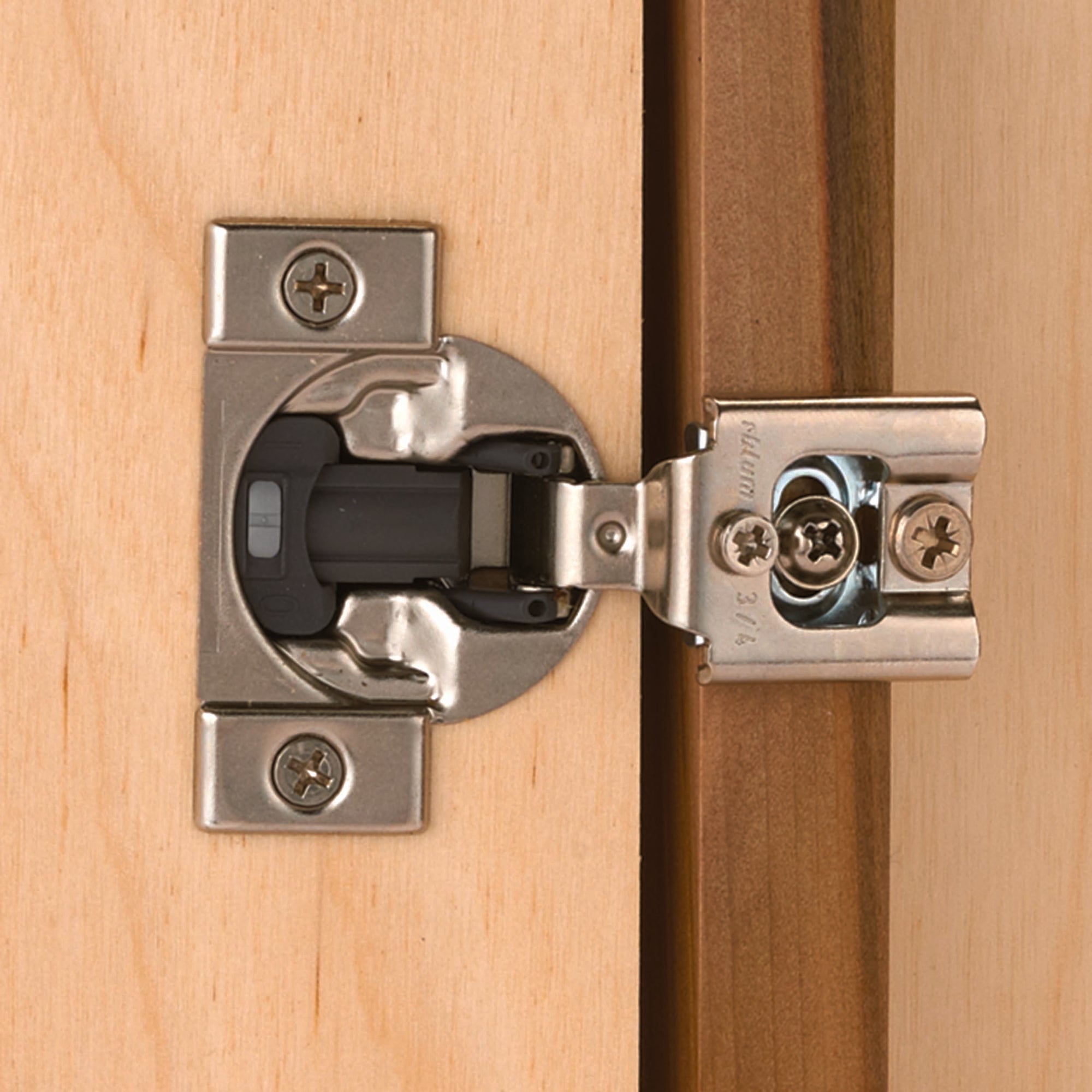

Upgrade your cabinetry with Blum Compact Hinges featuring BLUMOTION soft close technology. Designed for 3/4 inch overlay doors on face frame cabinets, these concealed hinges provide a 105 degree opening angle and a compact, one-piece design that’s ideal for both new installations and retrofits.
Each hinge includes an integrated soft close mechanism that ensures smooth, quiet door operation. The compact body and pre-attached mounting plate make installation fast and accurate, with built-in adjustability to ensure proper alignment.
Features:
- Full access to cabinet interiors
- Integrated BLUMOTION soft close for quiet, controlled door movement
- Compatible with 3/4 inch overlay doors on face frame cabinets
- One-piece compact design with pre-attached mounting plate
- Three-way adjustment for easy vertical, horizontal, and depth tuning
- Concealed mount for a clean, professional finish
Specifications:
- Hinge type: Compact concealed hinge with BLUMOTION
- Cabinet type: Face frame
- Overlay: 3/4 inch (19 mm)
- Opening angle: 105 degrees
- Mounting type: Screw-on
- Closing mechanism: Integrated soft close
- Material: Steel with nickel-plated finish
What's Included:
- (1) Package of blum Compact Face Frame Hinge - 3/4" Overlay - 105 Degree with BLUMOTION - 1 Pair
- Mounting hardware
- Instructions
