Bessey STC-HH70
Item 152929

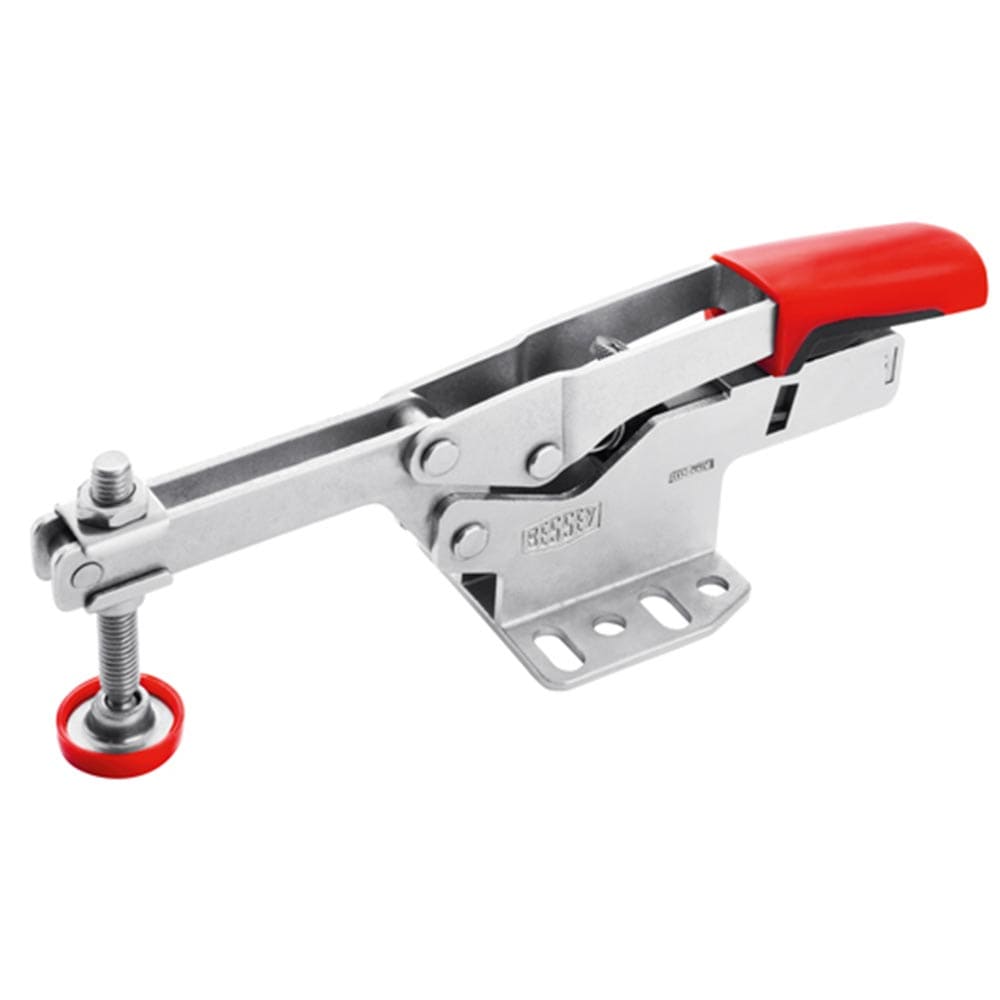

Auto-Adjust Horizontal Toggle Clamp High

$19.25

In Stock

The BESSEY® Auto-Adjust Toggle Clamp automatically adjusts to variations in work piece dimensions while maintaining constant clamping force with a max vertical opening distance of 2-3/4". No more...

You May Also Like

Details

The BESSEY® Auto-Adjust Toggle Clamp automatically adjusts to variations in work piece dimensions while maintaining constant clamping force with a max vertical opening distance of 2-3/4". No more time-consuming manual adjustment of the spindle height to maintain a safe and correct clamping force. The removable non-marring plastic cap is included on the 7/8"-diameter pads. The integrated clamping force adjustment screw can be used to create an actually applied clamping force from 25 to 550 lbs. (max holding capacity 700 lbs.). One BESSEY Auto-Adjust Toggle Clamp can replace a range of competitive clamps. The large flanged baseplate is designed for use with 1/4" or M6 fasteners.



  • Max vertical opening distance: 2-3/4"


  • Force adjustable from 25-550 lbs. (700 lbs. max)


  • Large 2-1/4" x 2-1/2" baseplate


  • Comfort grip handle


Videos

Articles & Blogs

Menlo1

The Facebook corporate culture at Menlo Park in California features a perk-filled environment that creates happy efficient employees.  Brain power takes a lot of energy, so this 57-acre amenity-filled campus gives “home-is-where-the-heart-is”, a whole new meaning.  A small city within itself, Facebook has it all.  Energy efficient on-campus transportation system, a bank, barbershop, barbecue shack, burger joint, candy and ice cream shops, coffee shop, dental and physician offices, dry cleaners, Mexican restaurant, pizzeria, sushi restaurant, video arcade, and more are all available to employees free of charge or at a very low cost.

Read More >

Reviews

5.0 out of 5 stars
2 Reviews
  1. 5.0 out of 5 stars
    by on

    Bessey engineer gets an A from me

    OK, so this is billed as an "auto-adjust" clamp. What that comes down to is that you select the clamping force once and then you're done. A huge range of thicknesses is accommodated; thick to thin, all are squeezed with the same force. This is accomplished with a very clever and compact mechanism. I mounted it temporarily and passed it around the table at gents' coffee, and everyone admired it as much as I did as it grabbed any of a selection of sticks. Force is adjusted with easily accessible screw, but you might need a small wrench to work the jam nut if you want to secure it in a production situation. I like the two-parameter adjustment of the pad: distance from pivot and height. You can see this aspect in the catalog photos, though the auto-adjust mechanism is not visibly obvious. As an engineer I want to take it apart, but I shall resist the temptation. It's so solidly put together I'd bust it in the attempt. Buy one, try it, and you'll be back for more.

  2. 5.0 out of 5 stars
    by on

    Great product!

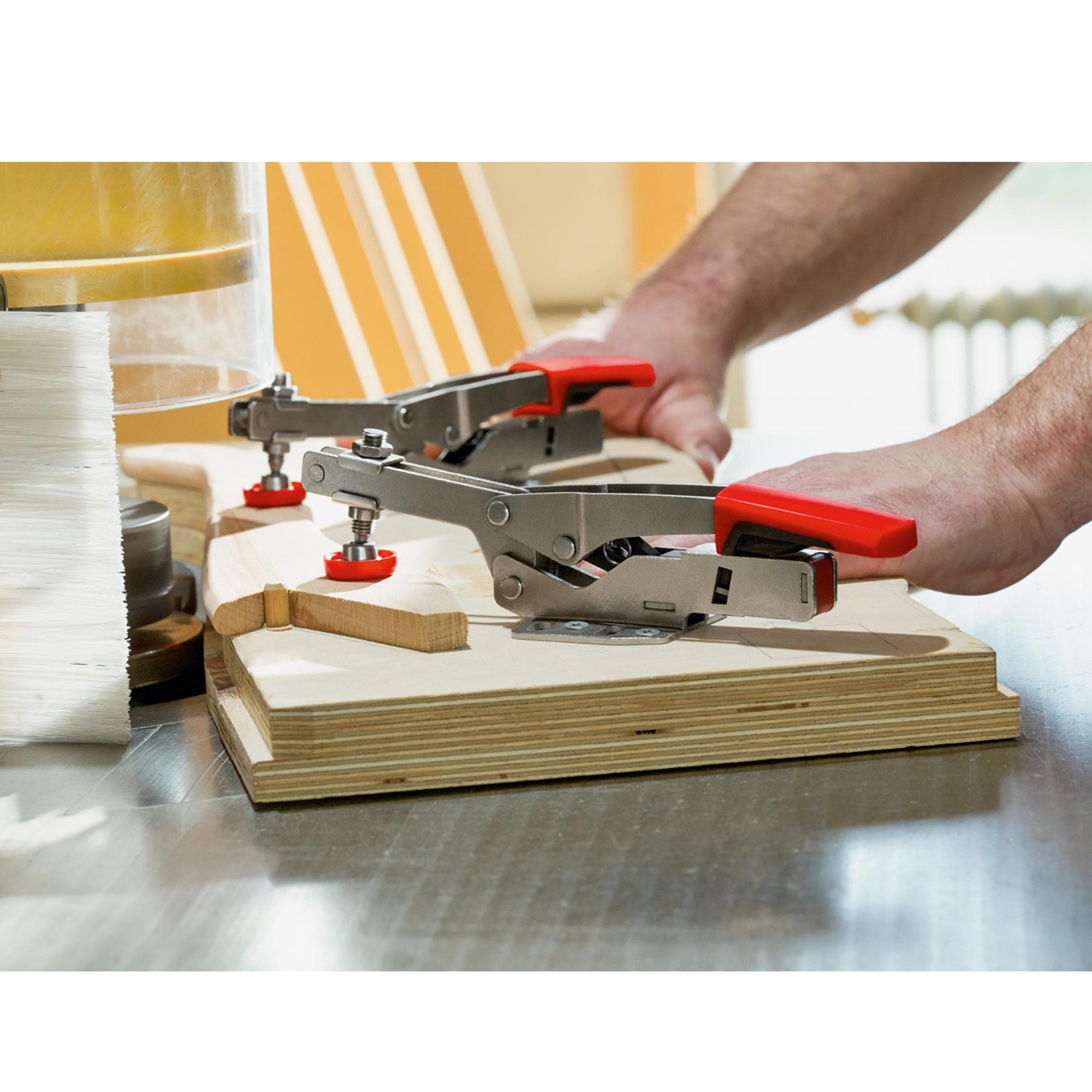

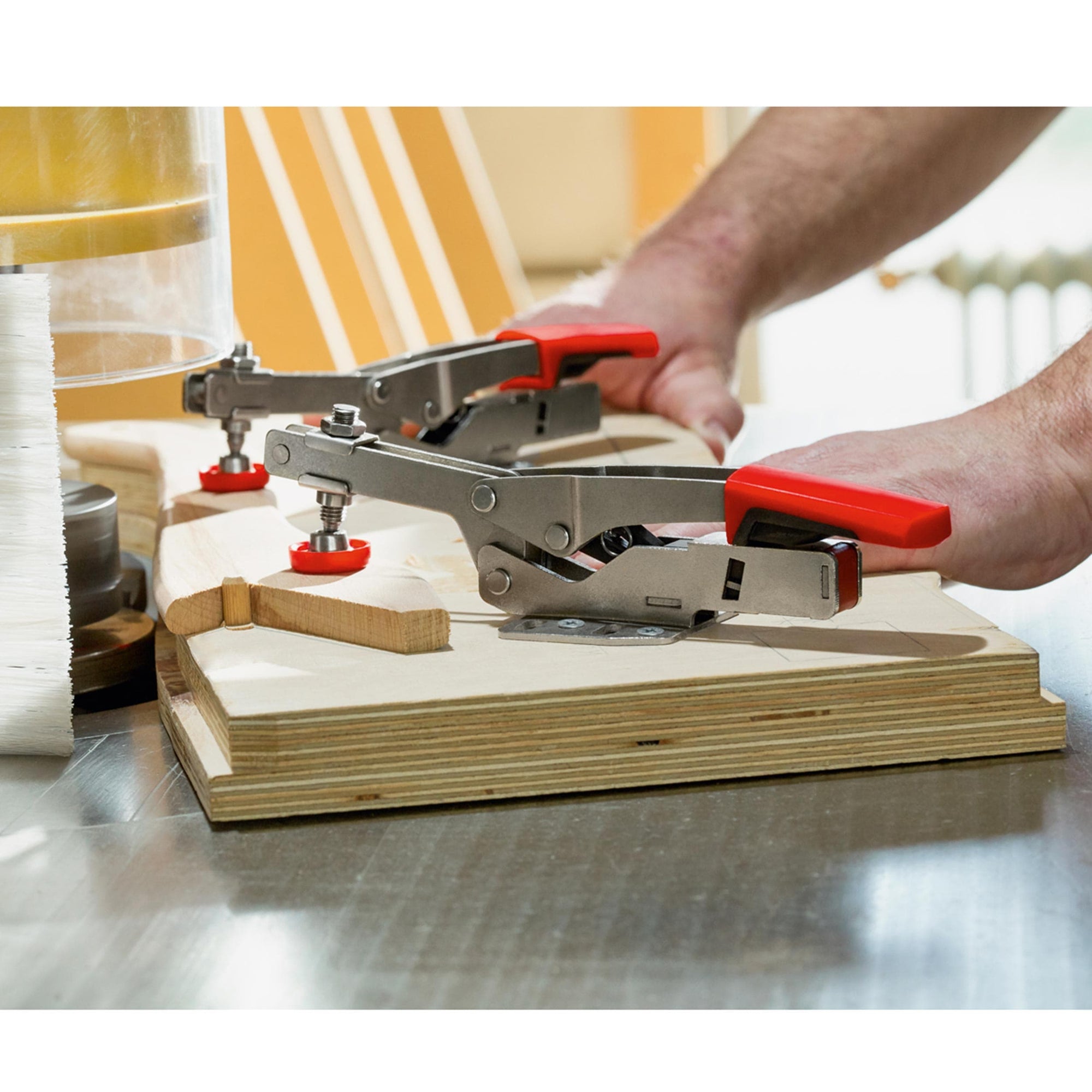

    I bought these to add to a horizontal router table I had set up for mortising. I was constantly going between different thicknesses of stock and resetting my old toggle clamps for each stock thickness was a pain. I was skeptical at first but these work exactly as advertised. They get moved from one jig to another and my old toggle clamps, which I have lots of, don't get used any more.
