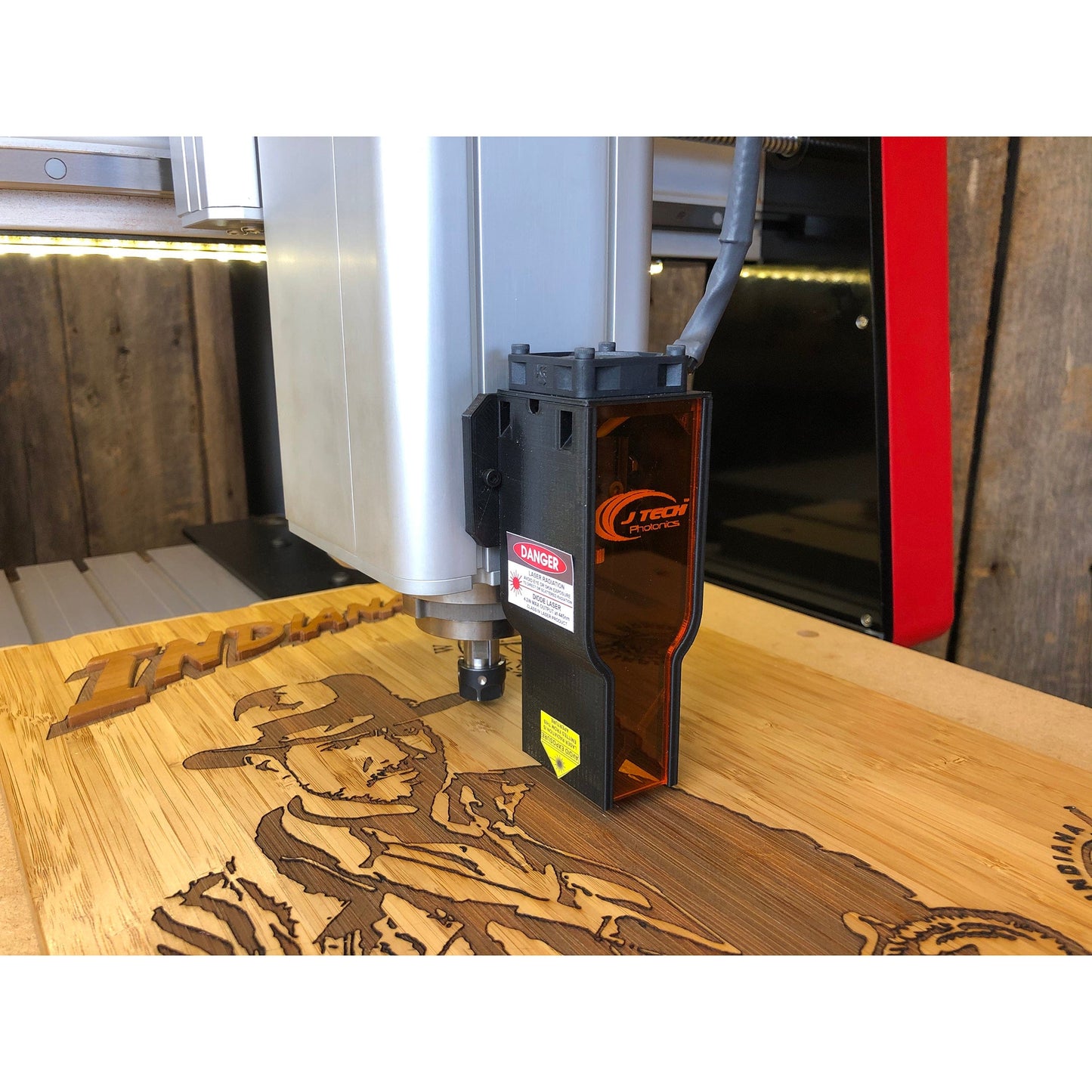

JTech Photonics 2.8 Watt Laser Kit (Iconic Series)

Item #172928 Model AX9-ALK28
Regular price $599.00
Sale price $599.00 Regular price $599.00
The Axiom CNC laser by J Tech Photonics raises the bar in CNC accessory lasers. Precision laser trimmed regulators for constant current to the laser, . . . View More Details

Ships from Manufacturer

Shipping Info


The Axiom CNC laser by J Tech Photonics raises the bar in CNC accessory lasers. Precision laser trimmed regulators for constant current to the laser, 0.01 tuning resolution, digital isolation, soft start, ESD protection, current limiting, and the list goes on. The US Federal Government has a list of things that are required for operating these high power class 4 lasers.

Here is a rundown of the safety features which will protect yourself and others:

  • Key Switch – A key is needed to enable the laser. When the key switch is turned on, the laser is enabled and the key CANNOT come out. You can only remove the key when it is disabled.
  • Remote Interlocks – This feature allows for addition of a switch on your enclosure so when it is open, the laser will automatically turn off. An interlock switch is also installed on the rear surface of the laser which insures that if the laser is removed from your Axiom CNC router, the beam is interrupted. They’ve also added an E Stop button for the laser, which is always good for if you need to stop the laser quickly!
  • Power Fault Protection – In the event of a power failure, your laser will be disabled, preventing the beam to illuminate as the power is restored. Simply press the reset button and you are back in action!
  • Emission Indicator – The small little LED on the front to let you know when your laser is on.
Compatible with all Iconic and Axiom i2R series machines.This kit is specific to the Axiom Precision Iconic line of CNC machines.

Includes the following:
  • 2.8W 445nm Laser in Custom Protective Housing and Mount
  • 2.0 Amp Adjustable Safety Compliant Laser Diode Driver with Pre-Wired Connections
  • Power Adapter 12V 2.5A, US Style Plug
  • Laser Safety Goggles for 445nm Lasers
  • Laser Extension Cables

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 2-4 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

All customer returns, excepting defects, are subject to a 20% restocking fee. If you need help initiating a return, please contact Woodcraft Customer Service at 1-800-535-4482.

Warranty Information

Axiom Tool Group warrants their products to be free from defects in materials and workmanship for a period of 1 year. If you have a warranty inquiry, please contact Axiom Tool Group at 844-642-4902.
Free Technical Support direct from Axiom
