Amana Tool

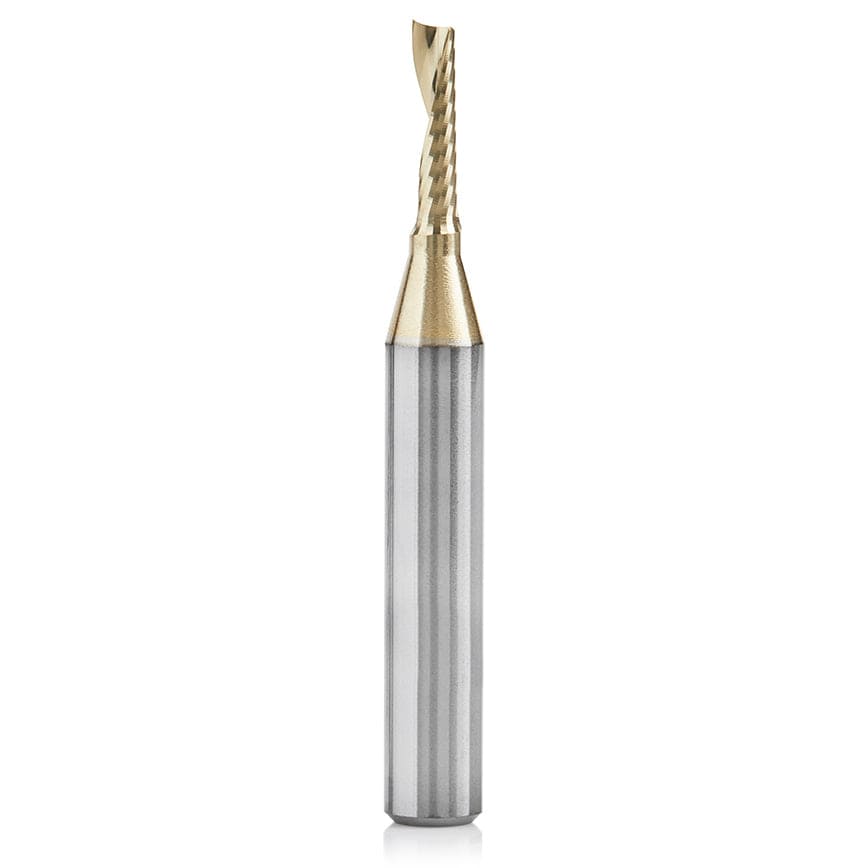

51454-Z Spiral O Single Flute ZrN Coated Aluminum Cutting Up-Cut Mirror Finish Router Bit 1/8"D 1/2"CH 1/4"SH 2"OL

Item #180664 Model 51454-Z
Regular price $50.44
Sale price $50.44 Regular price $50.44
Skip to product information
1 of 1

Amana Tool

51454-Z Spiral O Single Flute ZrN Coated Aluminum Cutting Up-Cut Mirror Finish Router Bit 1/8"D 1/2"CH 1/4"SH 2"OL

Item #180664 Model 51454-Z
Regular price $50.44
Sale price $50.44 Regular price $50.44
The Amana Spiral O Single Flute ZrN Coated Aluminum Cutting Up-Cut Mirror Finish Router Bit is made to be used only on CNC machines and routers with a. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • Iconic 24" x 24" for Axiom CNC Router

    Regular price $3,999.00
    Sale price $3,999.00 Regular price $4,999.00
    Iconic 24" x 24" for Axiom CNC Router alt 0
  • Axiom Iconic 24" x 48" CNC Router

    Regular price $4,999.00
    Sale price $4,999.00 Regular price $5,999.00
    Axiom Iconic 24" x 48" CNC Router alt 0
  • Iconic 24" x 36" CNC Router

    Regular price $4,499.00
    Sale price $4,499.00 Regular price $5,499.00
    Iconic 24" x 36" CNC Router alt 0

Details

The Amana Spiral O Single Flute ZrN Coated Aluminum Cutting Up-Cut Mirror Finish Router Bit is made to be used only on CNC machines and routers with automatic feeding. Using the highest quality sub-micrograin carbide these bits have a special proprietary edge processing system featuring a super high polished cutting edge with a unique “mirror finish” resulting in clean cuts, less chance for chip re-welding, a superior surface finish and a longer tool life. Right hand helix right hand cut.



Specifically designed for a variety CNC machining applications excellent for cutting:


  • ALPOLIC Copper Composite
  • Material (CCM)
  • Alucobond
  • Aluminum
  • Aluminum 5052
  • Aluminum 6061
  • Aluminum Alloys
  • Aluminum Composite
  • Materials (ACM)
  • Aluminum Composite Panel (ACP)
  • Alupanel
  • Brass
  • Copper
  • Dibond
  • Durabond
  • e-panel
  • Etalbond
  • Fomex with Aluminum Face
  • Gold
  • Non-Ferrous Metals
  • Plastic
  • Silver
  • Solid Surface
  • Titanium Composite Material (TCM)
  • Wood

Ideal for industrial applications Amana spiral ‘O’ flute router bits are manufactured using innovative techniques and materials that yield superior results with each cut and help make aluminum projects less labor-intensive.


Benefits of Mirror-Finish:


  • Razor sharp cutting edge
  • Effortless chip removal
  • Helps prevent chip re-welding
  • Extends tool life
  • Exceptional cut quality
  • Dissipates heat well and prevents melting

Benefits of Zirconium Nitride (ZrN) Coating


  • Creates a harder and tougher cutting edge allows for a prolonged cutting edge life and helps to prevent the build-up of material in the flutes while cutting
  • Have the tendency to run/spin much faster than an uncoated tool
  • Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter (where the machine or work piece vibrates) under high chip loads (when used with low TIR spindles)
  • High flute volume supports high feed rates and chip loads
  • High aspect ratio for single pass deep-reach cutting

Warning: Never attempt to cut ferrous metals with these bits. Inspect cut quality adjust feed / speed accordingly. For optimal results and extended tool life use mist lubricant system or air cooling.



Specifications

  • Diameter: 1/8"
  • Cutting Height: 1/2"
  • Shank: 1/4"
  • Overall Length: 2"









https://www.woodcraft.com/media/W1siZiIsIjIwMTkvMDUvMDEvMTAvNTQvMTAvNTE1L3ZlY3RyaWNfd2ViX2xvZ29fc21hbGxlci5qcGciXV0/vectric-web-logo-smaller.jpg?sha=fb58496759ac82e1


Download Vectric 51454-K File



Tool #51454-K Vectric Compatible Tool File

51454-K tool file to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve.


This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.


Installation:

1. Download to a safe location such as your desktop.

2. In the software, open the Tool Database and use the import option to load the file from the safe location.


Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
