Amana Tool

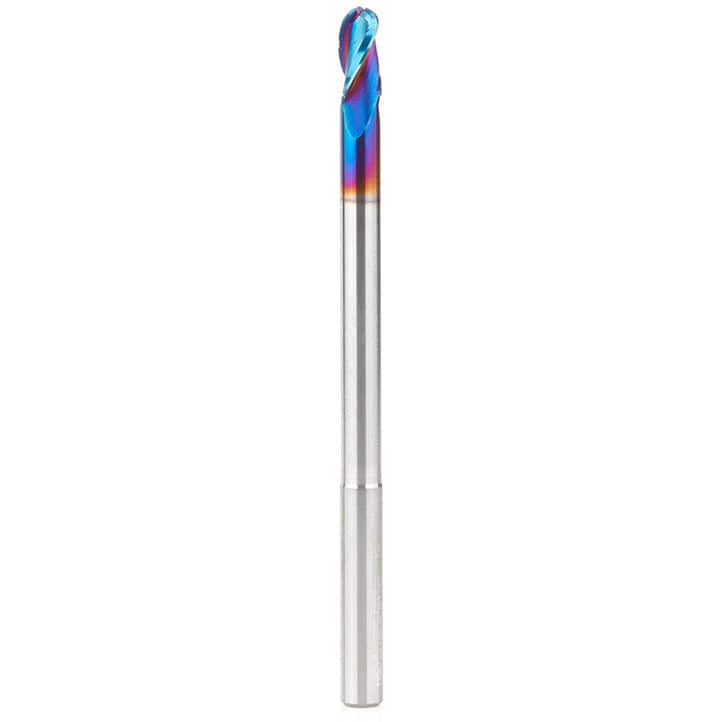

46490-K Extra Long 2D/3D Carving Tapered Ball Nose Triple Flute Router Bit 0.10 Deg Angle 1/4"D 1/8 "R 1/2"CH 1/4"SH 4"O

Item #180657 Model 46490-K
Regular price $91.43
Sale price $91.43 Regular price $91.43
Skip to product information
1 of 2

Amana Tool

46490-K Extra Long 2D/3D Carving Tapered Ball Nose Triple Flute Router Bit 0.10 Deg Angle 1/4"D 1/8 "R 1/2"CH 1/4"SH 4"O

Item #180657 Model 46490-K
Regular price $91.43
Sale price $91.43 Regular price $91.43
The Amana Extra Long 2D/3D Carving Tapered Ball Nose Triple Flute Router Bit is made with an extra-long reduced shank section for deeper reach and bet. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

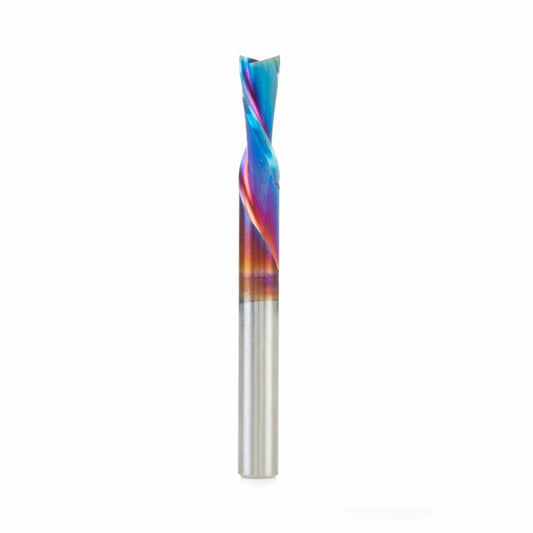

  • 46202-K Solid Carbide Coated Spiral Plunge Router Bit, 1/4 Diameter x 3/4 x 1/4 Inch Shank

    Regular price $39.99
    Sale price $39.99 Regular price $39.99
    46202-K Solid Carbide Coated Spiral Plunge Router Bit, 1/4 Diameter x 3/4 x 1/4 Inch Shank alt 0

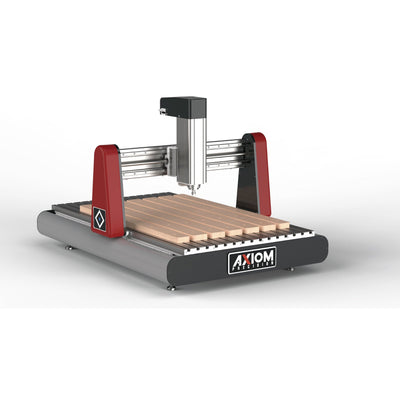

  • Iconic 24" x 36" CNC Router

    Regular price $4,499.00
    Sale price $4,499.00 Regular price $5,499.00
    Iconic 24" x 36" CNC Router alt 0

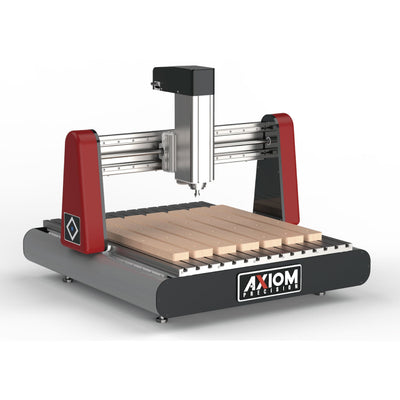

  • Iconic 24" x 24" for Axiom CNC Router

    Regular price $3,999.00
    Sale price $3,999.00 Regular price $4,999.00
    Iconic 24" x 24" for Axiom CNC Router alt 0

Details

The Amana Extra Long 2D/3D Carving Tapered Ball Nose Triple Flute Router Bit is made with an extra-long reduced shank section for deeper reach and better chip clearance and incorporates high shear, multi-flute and Spektra coating designed for the ultimate combination of finish and tool longevity in aerospace materials. Modern-day materials present challenges to the fabricator, using these special multi-flute edge tools featuring Spektra ceramic coating addresses these challenges with a winning geometry combination. Tools are manufactured with high balance that allows them to run up to 60,000 RPMs. Adjust your chip load and feed rate accordingly.


Applications:


  • A perfect bit for 3D carving
  • Precision 2D and 3D large scale carving
  • Great for deep profiling
  • Dimensional signage
  • 3D millwork
  • 2D and 3D contouring, profiling, modeling and pattern making for cabinetry, sign making, furniture making and jewelry mold making
  • Perfect for model-makers on large 3D milling profiles in abrasive EPS foam and other materials

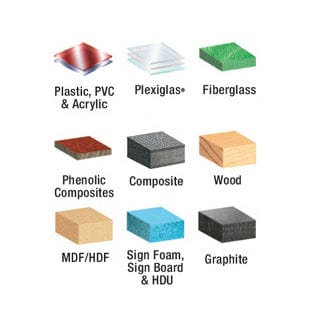

  • Excellent for cutting:
  • Acrylonitrile-Butadiene-Styrene (ABS)
  • Acrylic
  • Acrylic Stone
  • Composite
  • Corian
  • Coroplast
  • Dibond
  • Ethafoam
  • Ethylene-vinyl Acetate Foam (EVA)
  • Expanded Polypropylene (EPP)
  • Expanded Polystyrene Foam (EPS)
  • Extruded Polystyrene Foam (XPS)
  • Fiberglass
  • Fiberglass PCB Board
  • Foam Board
  • Graphite
  • High Density Polyethylene (HDPE)
  • High Density Urethane (HDU)
  • 20lbs High Density Urethane
  • Lexan
  • MDF/HDF
  • PALFOAM
  • Phenolics
  • Phenolic Composites
  • Plastics
  • Poly (methyl methacrylate) (PMMA)
  • Polyethylene Foam
  • Polylam
  • Polyurethane Foam
  • PVC
  • PVC Foam Board
  • Sign Board
  • Sign Foam
  • Tooling Board
  • Wood
  • XPE (Cross Linked Polyethylene) Foam

Amana Spektra bits feature a nACo nanocomposite coating with an extreme nano hardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling:


  • nACo coating is a micro-thin ceramic coating which enables the tool's cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo nanocomposite coating will not wear off.


Milling Plastics: In a milling application, all plastics tend to behave differently so attention must be paid first and foremost to heat input, as that greatly impacts surface finish and chip control.


Suggested starting spindle speed might be 18,000 RPM, there needs to be some experimenting on the part of the programmer to best find an acceptable finish.



Specifications

  • Diameter: 1/4"
  • Radius: 1/8"
  • Cutting Height: 1/2"
  • Shank: 1/4"
  • Overall Length: 4"
  • Angle: 0.10 Degree










https://www.woodcraft.com/media/W1siZiIsIjIwMTkvMDUvMDEvMTAvNTQvMTAvNTE1L3ZlY3RyaWNfd2ViX2xvZ29fc21hbGxlci5qcGciXV0/vectric-web-logo-smaller.jpg?sha=fb58496759ac82e1


Download Vectric 46490-K File



Tool #46490-K Vectric Compatible Tool File

46490-K tool file to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve.


This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.


Installation:

1. Download to a safe location such as your desktop.

2. In the software, open the Tool Database and use the import option to load the file from the safe location.


Vectric File Warning

The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
