Amana Tool

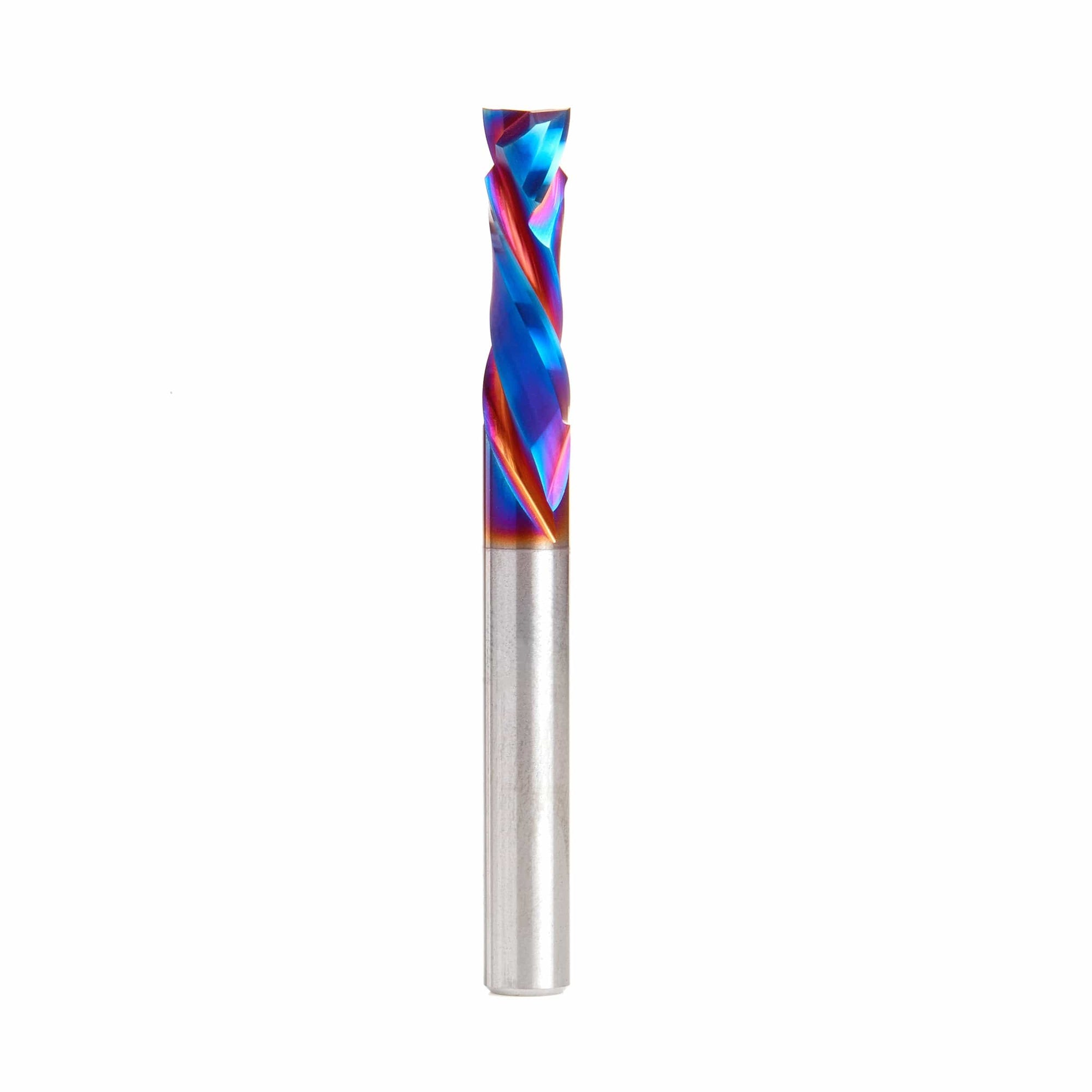

46170-K 1/4" CNC Solid Carbide Compression Spiral Router Bit, 1/4 Diameter x 7/8 x 1/4 Inch Shank

Item #166631 Model 46170-K
$77.99
$77.99 $77.99
Designed for CNC applications requiring high feed rates and a clean finish, this 1/4" Compression Bit is made special unique carbide for longer lifeti. . . View More Details

In Stock

Shipping Info

Details

Designed for CNC applications requiring high feed rates and a clean finish, this 1/4" Compression Bit is made special unique carbide for longer lifetime. It is particularly suitable for double-sided melamine or laminated material and makes flawless compression cuts. (Previous manufacturer number 46169)

Features:

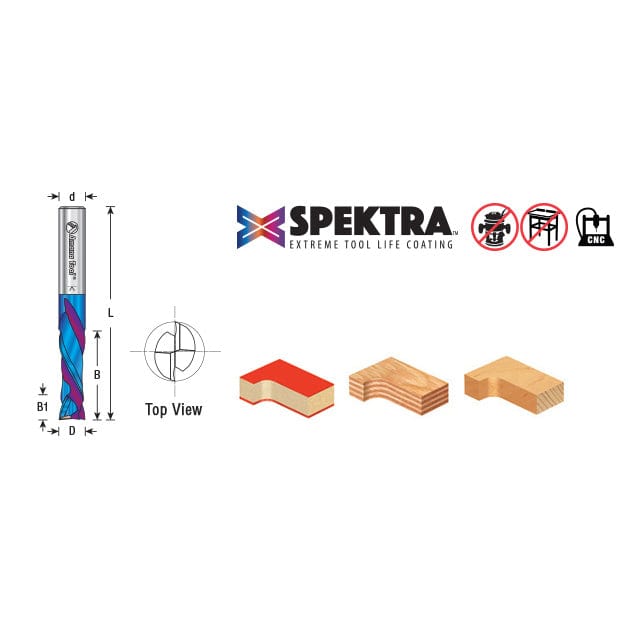

  • Diameter: 1/4"
  • Cutting Height: 7/8"
  • Shank: 1/4"
  • Overall Length: 2-1/2"
  • Flutes: 2
  • Excellent for cutting: CFRP, Double-Sided Melamine, Laminate, Laminate Plywood, MDF, Melamine Particleboard, Oriented Strand Board (OSB), Particleboard, Softwood, Hardwood, Veneered Plywood
  • Like all Amana CNC bits, this product is Vectric Software compatible. Each Vectric tool file can be found at http://www.amantool.com
  • Spektra™ Router Bits are coated with nACo®, a micro thin ceramic coating that prevents high heat and oxidation, which impede cutting tool performance. These brilliant multi-colored bits will lose their color with use, but the coating will remain.



Download Vectric 46170-K File 		Tool #46170-K Vectric Compatible Tool File
46170-K tool file to be used with all versions of Vectric software from version 8.0 and up. Works with Aspire, VCarve, Cut2D, Cut3D and PhotoVCarve.

This tool file is to be used as a starting point for your CNC projects and the parameters should be adjusted based on your project and material.

Installation:
1. Download to a safe location such as your desktop.
2. In the software, open the Tool Database and use the import option to load the file from the safe location.

Vectric File Warning
The Vectric .tool file should only be used in conjunction with the Amana Tool item number specified. Using this file with other brands is dangerous to the operator and CNC machine.
