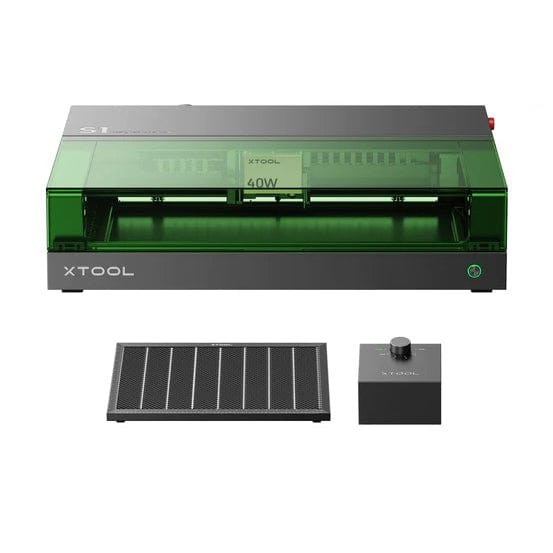

The xTool S1 40W is an ultra-accurate and fast laser cutter and engraver. This special package also includes a honeycomb panel (#191058) and Air Assist (#191059) to improve cutting performance. Experience higher productivity with an incredible speed of up to 600 mm per second! With advanced laser compression technology, eight 5.5W lasers are combined into 40W, realizing high power cutting efficiency comparable to CO2 machines. The S1 40W laser is strong enough to cut through 18mm basswood, 15mm dark acrylic or 0.1mm stainless steel in one pass. The diode laser can cut: paper, wood, leather, MDF, felt, some dark opaque acrylic. You can engrave: paper, wood, leather, MDF, stainless steel, some dark opaque acrylic, bamboo, fabric, dark glass, ceramic, jade, marble, shale, cement, brick, plated metal and painted metal. The small laser focus (0.08 mm x 0.1 mm) and tiny engraving line width can also create impeccable detail. The xTool S1 boasts a spacious bed size measuring 23.93" x 15.16" (608 mm x 385 mm). With a working area of 19.6" x 13" (498 mm x 330 mm), it caters to larger projects with ease.

The xTool S1 40W laser engraver uses novel encoders and algorithms to establish a precise absolute coordinate layout that displays the laser module’s position in real time in the software. A simple button press positions the laser on whatever object you want to engrave via three handy settings. Circular positioning locates circular objects accurately with only three points—no need to struggle to find the center point or measure the diameter. Twin-point positioning achieves unbelievable precision even on ultra-tiny surfaces such as pencils and toothpicks. Polygonal positioning enables irregularly shaped areas with ease. And best of all—mark multiple processing areas in one canvas for easy batch processing. Say goodbye to creating a jig for every order.

xTool S1 boasts a cutting-edge intelligent focusing system for multi-point focus ranging and 3D object automation. Its electric Z-axis dynamically refines focus, delivering a perfect engraving effect on uneven surfaces.

This machine is very beginner friendly—get started quickly with our user-friendly software, XCS, which has over 1,000 projects and 500 elements included to help your creativity. The machine is also compatible with the more robust LightBurn software. Engraving file format supports SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2 and more. You can transfer data via Wi-Fi or USB cable.

The honeycomb working panel is a useful accessory for your S1 laser engraver that improves cutting efficiency for small materials and prevents burning. It is easy to set up – just add it into your engraver’s bed and the 5-mm anti-slip feet will keep it in place. The 15-mm honeycomb openings prevent pieces from falling through. The 22-mm-thick panel with reinforced 5-mm rods is strong enough to support 5 kg. Both axes are marked with inch and mm measurements for easy reference.

Air Assist features strong output of 30L/min to keep your engraving work nice and cool, blowing away all the smoke and debris as you cut. This also protects the laser lens for longer life and helps the laser to cut deeper. When switched to Auto Mode, the airflow output can be adjusted automatically according to the current working condition.

See additional document on Product Page

Limited Warranty - see additional document on product page
