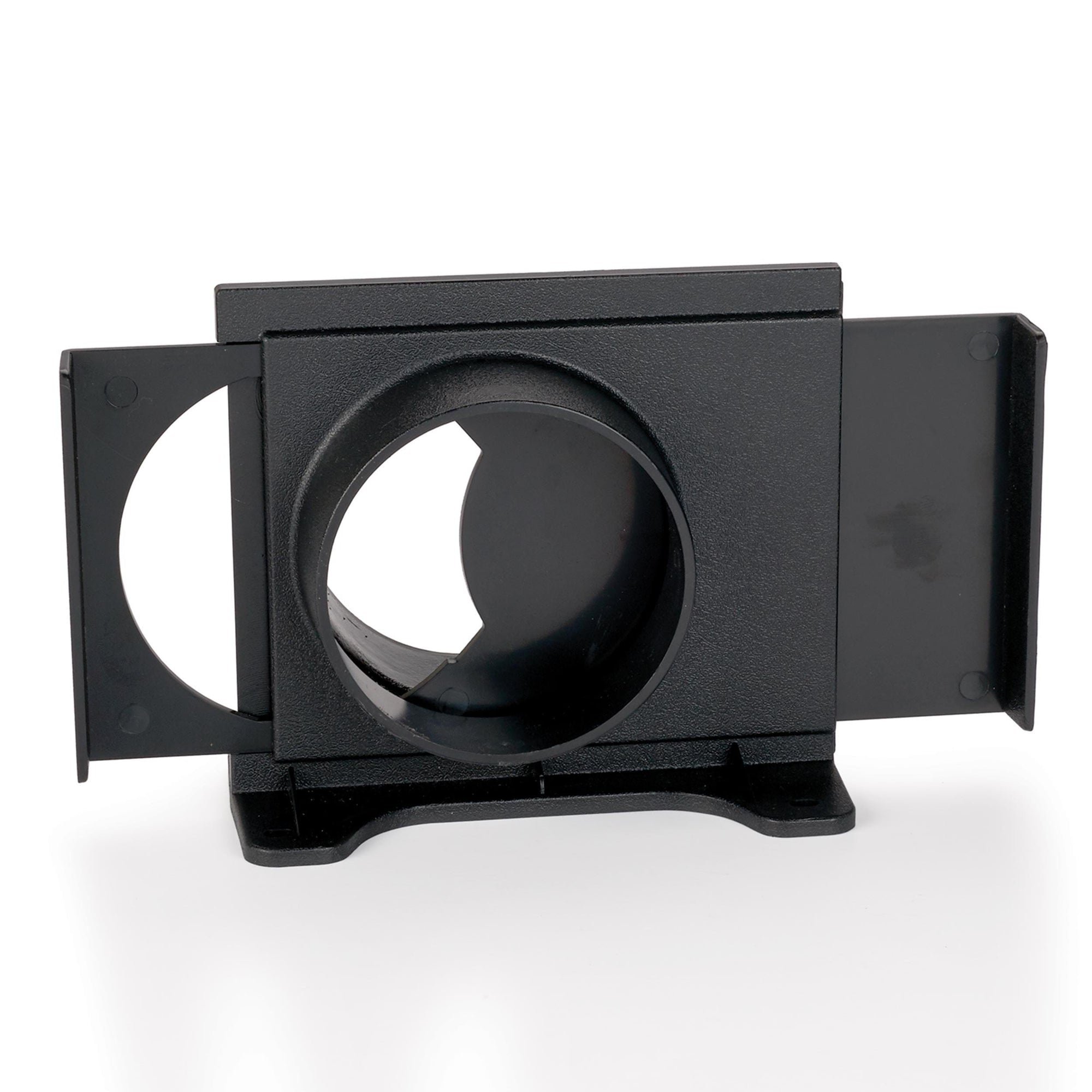

Wall mount feature on this WoodRiver® Dust Connection™ Self-Clearing Blast Gate Dust Collection Fitting provides a large, 6-1/2" x 3-1/4" flange with mounting holes to attach the fitting on the wall in either the horizontal or vertical direction. Self-clearing design has rectangular plate with opening on one end that moves inside a 2-sided frame to prevent clogging. Blast gate function provides a pass-through or shutoff to connect your dust collector to your central dust collection system or a branch line to one of your tools. Molded fitting has overall dimensions of 10-1/4" long and 5-1/2" wide in the open or closed position. Each 4" OD port on either side of the gate is 1-1/2" long to provide room to slide on hose and apply hose clamps at each connection. Molded using ABS material to maintain shape and withstand woodshop environment.

Features:

• Wall mount flange molded on blast gate fitting to shut off one dust collection line at a time
• Self-clearing design has rectangular plate that moves inside a 2-sided frame to prevent clogging
• Each 4" OD port is 1-1/2" long to provide room to slide on hose and apply hose clamps

Specifications:

• Overall Dimensions: 10-1/4" x 5-1/2" in open or closed position
• Flange Dimensions: 6-1/2" x 3-1/4"
• Size: 4"
• Material: ABS plastic

What's Included:

• (1) WoodRiver Dust Connection - Wall Mounted Self-Clearing Blast Gate
