Wood-Mizer

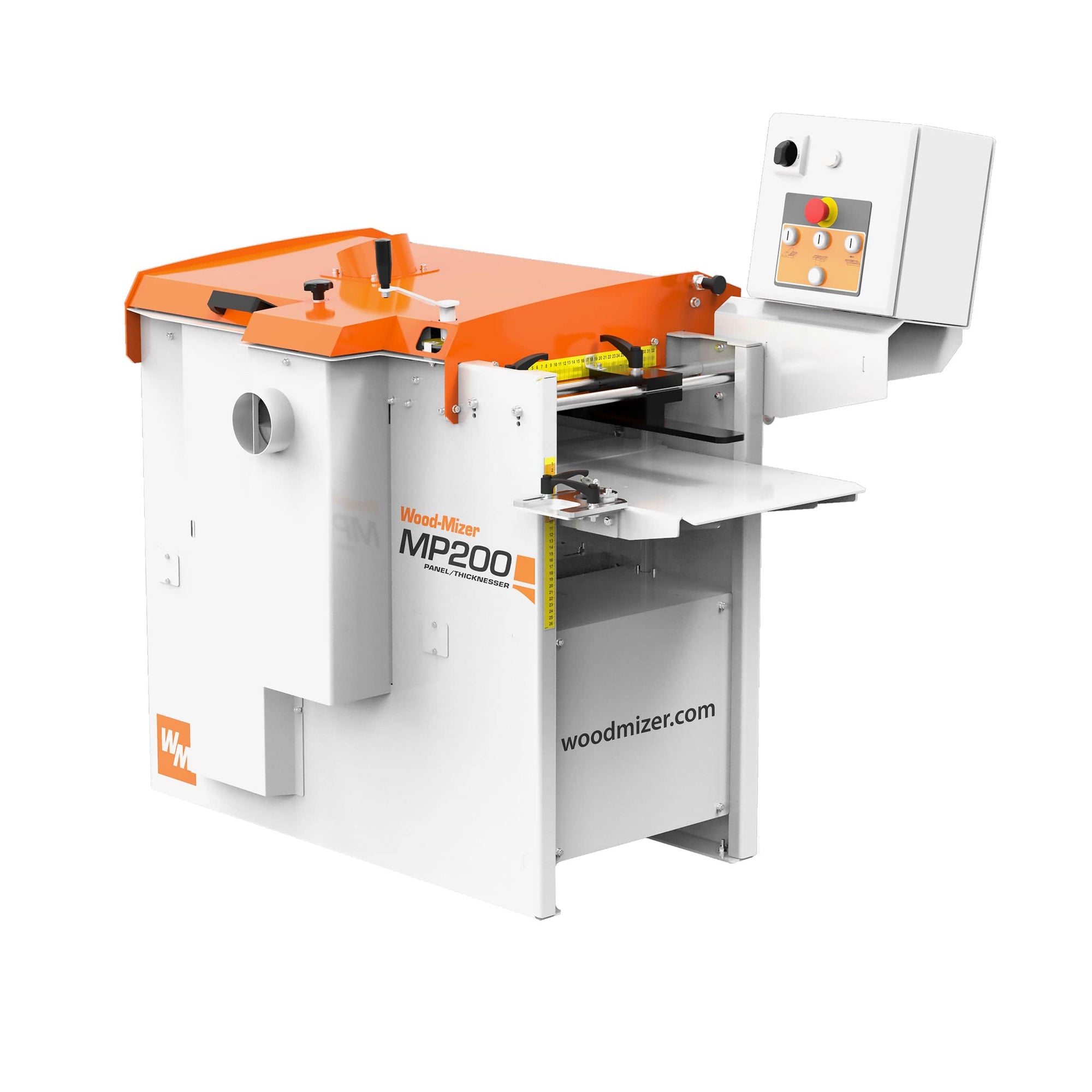

MP200 2-sided Planer / Moulder - 230v 1 Phase with Variable Feed
Item #191173
Model MP200EA6U-V
Regular price
$7,995.00
Sale price
$7,995.00
Regular price
$7,995.00
Unit price
per
Plane and mould material on one or two sides at once with the MP200 2-Sided Planer Moulder. The MP200 includes 1 horizontal top cutter and 1 vertical . . .
View More Details
Details
Plane and mould material on one or two sides at once with the MP200 2-Sided Planer Moulder. The MP200 includes 1 horizontal top cutter and 1 vertical side cutter that can be fitted with planing knives or moulding profile knives to produce finished mouldings or flooring. With the top cutter and side cutter, planing or moulding material is completed on one or two adjoining sides in one pass. The power feed rollers move the board under the horizontal cutter and past the vertical side cutter with each pass. After planing the top and side of the board, simply flip the board over, adjust the table height, and plane the final two sides. After moulding a profile on the top or side of the board, simply change out the knives, adjust the table height and then mould the final two sides. With the MP200, you can completely plane and mould material on all four sides in only two passes. The MP200 is built to last with heavy duty cast-iron tables, durable sheet steel chassis, and premium components. Engineered for woodworkers, carpenters, or joiners in the construction trade, the MP200 planer/moulder can produce a variety of professionally finished products including flooring, planed boards, crown moulding, cabinet trim, paneling, door and window frames, furniture components, and more. Proven in workshops throughout the world, the MP200 is backed by the same legendary service, quality and safety features shared by the entire family of Wood-Mizer wood processing equipment.
Features:
- Planes and moulds 2 sides in one pass
- One horizontal cutter that can be fitted with planing knives or profile knives
- One 2" Vertical cutter that can be fitted with planing knives or profile knives
- Cast iron table
- Smart compact construction
- Easy tooling changes
- 2-sided max board width: 11-13/16" (300mm
- 2-sided board height: 5/8" to 2" (15 - 50mm)
- 1-sided max board width: 16" (410mm)
- 1-sided max board height: 8-7/8" (225mm)
- Horizontal cutter diameter: 2-7/8" (72mm)
- Horizontal cutter width x height: 16" x 8-7/8" (410mm x 225mm)
- Horizontal cutter power: 4HP (3kW)
- Horizontal cutter rotation speed: 5,840 rpm
- Horizontal cutter max planning depth: 1/8" (5mm)
- Horizontal cutter max profile depth: 3/4" (20mm)
- Vertical cutter spindle diameter: 1-3/16" (30mm)
- Vertical cutter diameter x height: 3-5/8" x 1-9/16" (92mm x 40mm)
- Vertical cutter max planning depth: 1/8" (5mm)
- Vertical cutter max profile depth: 3/4" (20mm)
- Vertical cutter power: 4HP (3kW)
- Vertical cutter rotation speed: 5,840 rpm
- Vertical cutter max diameter: 5-1/2" (140mm)
- Planer knives: 4 planer knives included (2 horizontal and 2 vertical)
- Power feed power: 3/4HP (0.55kW)
- Variable feed speed: 6 - 40 fpm (2 - 12 mpm)
- Total electrical power: 8 3/4HP (6.55kW)
- Connection requirements: 1-Phase, 240V, 60HZ, 35.5A
- Machine weight: 995 lbs (452 kg)
- Machine length x width: 50" x 37" (1,258mm x 932mm)
- Machine length with optional table: 97" (2,465mm)
- Machine height: 52" (1314mm)
- Shipping weight: 995 lbs (450 kg)
- Delivery Methods: Pallet
- Warranty: 2-Year
- Planing Knives for top and side cutting heads
- 17" infeed table
- Fencing and pressure roller
- Parts kit and manual
Shipping / Billing Information
This product ships direct from the manufacturer:
- Your order will ship in approximately 5 business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
See additional document on Product Page
Warranty Information
Limited Warranty - see additional document on product page
