TrueTrac

Pro-Series 8' Combo Universal Track Saw Kit

Item #417690 Model 105TPC
Regular price $289.99
Sale price $289.99 Regular price $289.99

This item has an additional shipping charge

Skip to product information
1 of 4

TrueTrac

Pro-Series 8' Combo Universal Track Saw Kit

Item #417690 Model 105TPC
Regular price $289.99
Sale price $289.99 Regular price $289.99

This item has an additional shipping charge

The TrueTrac Universal Saw System gives you the capabilities and precision of a big table saw in a compact package that you can carry to the yard or j. . . View More Details

Ships from Manufacturer

Shipping Info

Items you may need

  • LU96R010 Red Circular Saw Blade 10" x 5/8" Bore x 80 Tooth TCG Thin Kerf

    Regular price $89.97
    Sale price $89.97 Regular price $89.97
    LU96R010 Red Circular Saw Blade 10" x 5/8" Bore x 80 Tooth TCG Thin Kerf alt 0
  • LU89M012 Circular Saw Aluminium Saw Blade 12" x 1" Bore x 86 Tooth TCG

    Regular price $138.97
    Sale price $138.97 Regular price $138.97
    LU89M012 Circular Saw Aluminium Saw Blade 12" x 1" Bore x 86 Tooth TCG alt 0
  • LU90M012 Circular Saw Aluminium Saw Blade 12" x 1" Bore x 120 Tooth TCG

    Regular price $160.97
    Sale price $160.97 Regular price $160.97
    LU90M012 Circular Saw Aluminium Saw Blade 12" x 1" Bore x 120 Tooth TCG alt 0

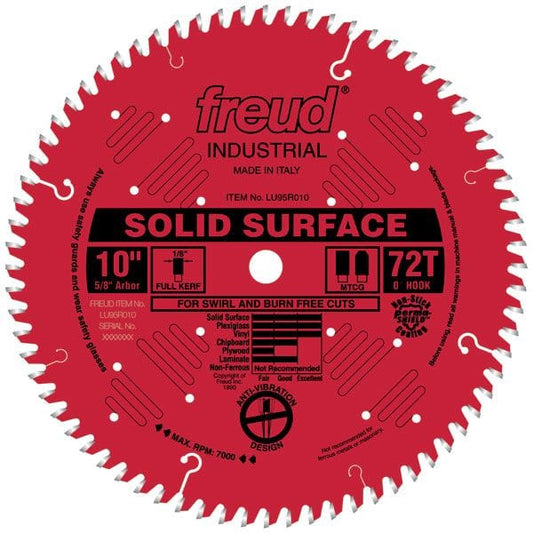

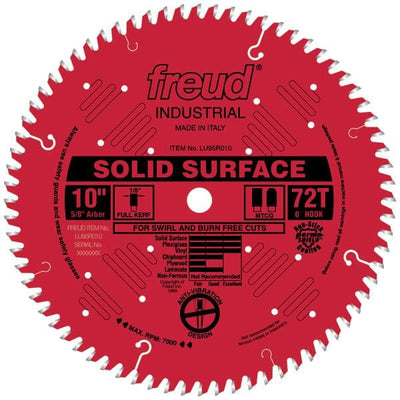

  • LU95R010 Circular Saw Solid Surface Saw Blade 10" x 5/8" Bore x 72 Tooth TCG

    Regular price $151.97
    Sale price $151.97 Regular price $151.97
    LU95R010 Circular Saw Solid Surface Saw Blade 10" x 5/8" Bore x 72 Tooth TCG alt 0

Details

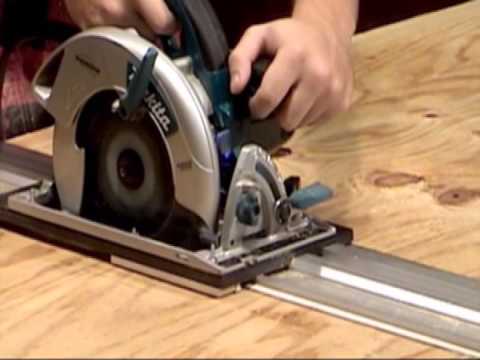

The TrueTrac Universal Saw System gives you the capabilities and precision of a big table saw in a compact package that you can carry to the yard or jobsite with ease. Just attach it to your existing circular saw - right or left side - and get started. Use any circular saw with a 6-1/2" to 8-1/4" diameter blade. With the 8' Combo Kit, you can rip 4' x 8' panels length-wise or trim the side edges of doors. Also great for straightening the crooked or waned edges of boards up to 8' long. The rugged 1/8" thick track won't sag even with the 48" extension in place. Makes straight, precise cuts every time. Hang the flat track from a peg or hook in your shop. Easy to transport. The TrueTrac can fit in the trunk or back seat with room to spare.

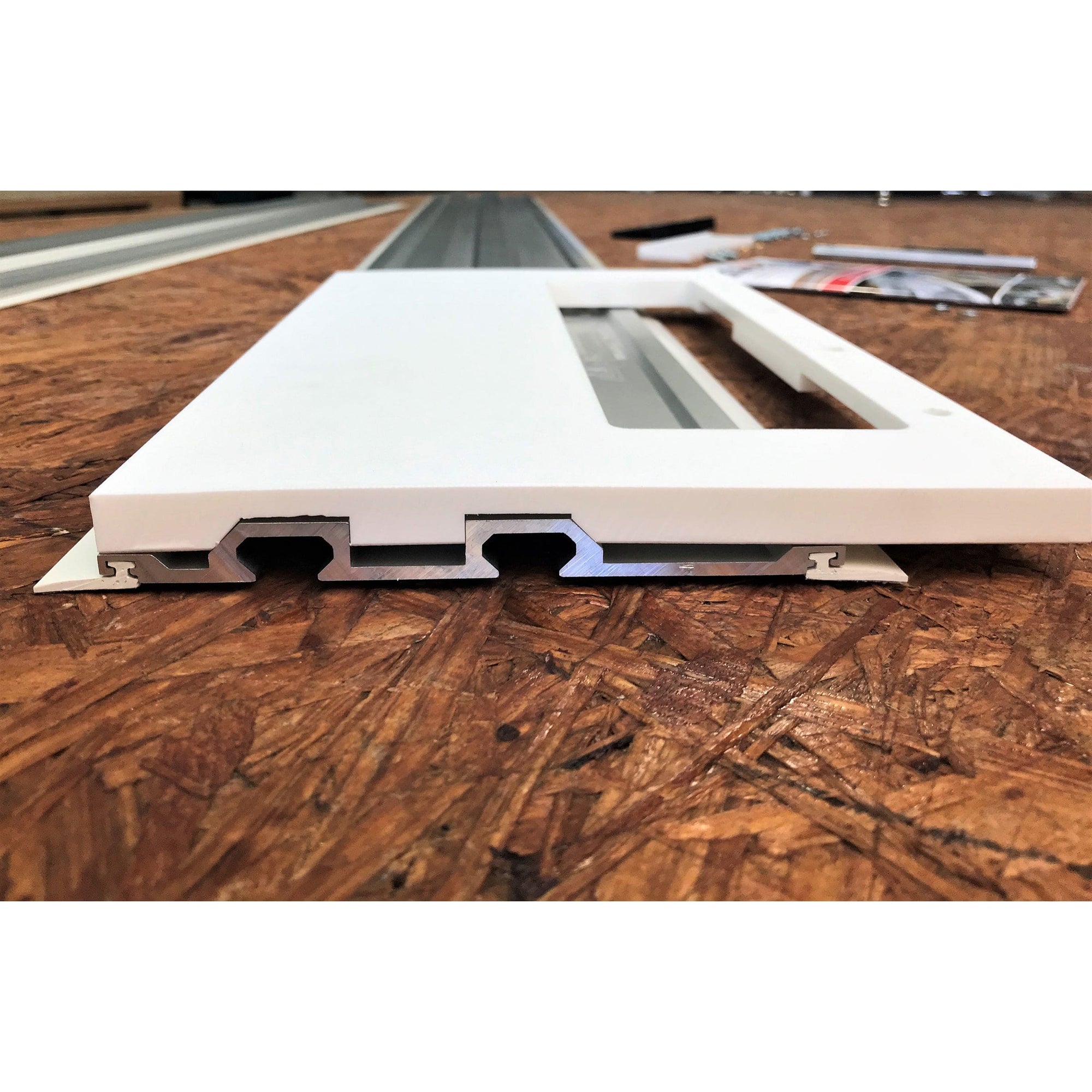

The Adapter Plate positions your saw on top of the guide track instead of against it. As a result, the sacrificial edge of the poly-vinyl track strip marks the cut position precisely without factoring. Once the chamfered edges of the Adapter Plate grooves are dropped over the mating chamfered edges of the track rails, there's zero play between them so your saw cannot wander away from the edge of the track and ruin your cut. The weight of your saw keeps every cut on track and precisely positioned.



With the TrueTrac Universal Saw System, you can:




  • Turn a hand-held circular saw into a track system
  • Uses any circular saw with a 6-1/2" to 8-1/4" diameter
  • Crosscut multiple boards at the same time
  • Rip narrow boards like a table saw
  • Bevel the edges of sheet goods or individual boards
  • Shave thin strips off workpiece edges to produce precise widths - down to a mere 1/32"
  • Cut tapered shapes for cabinet fillers and similar projects
  • Eliminate rough or waned edges easily

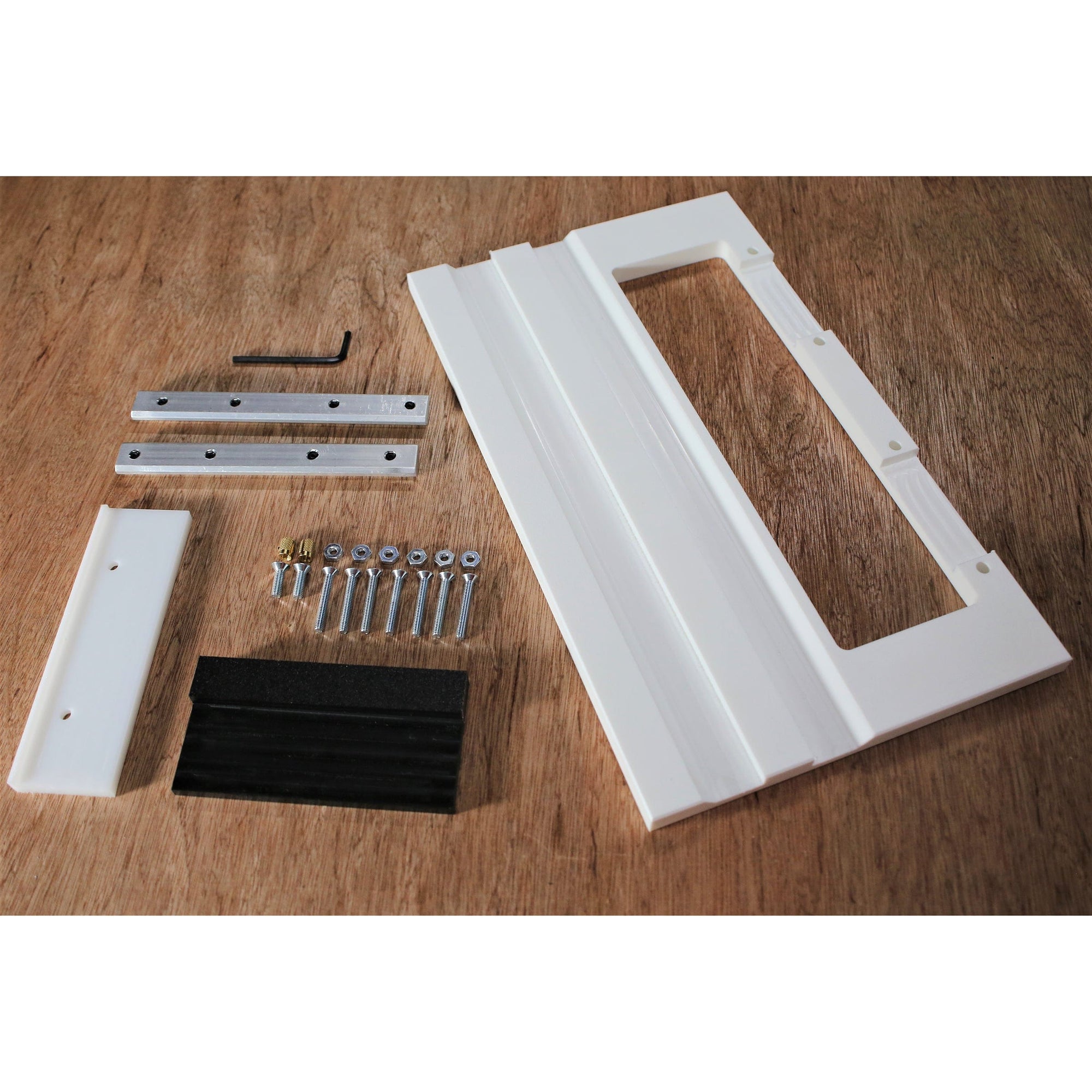

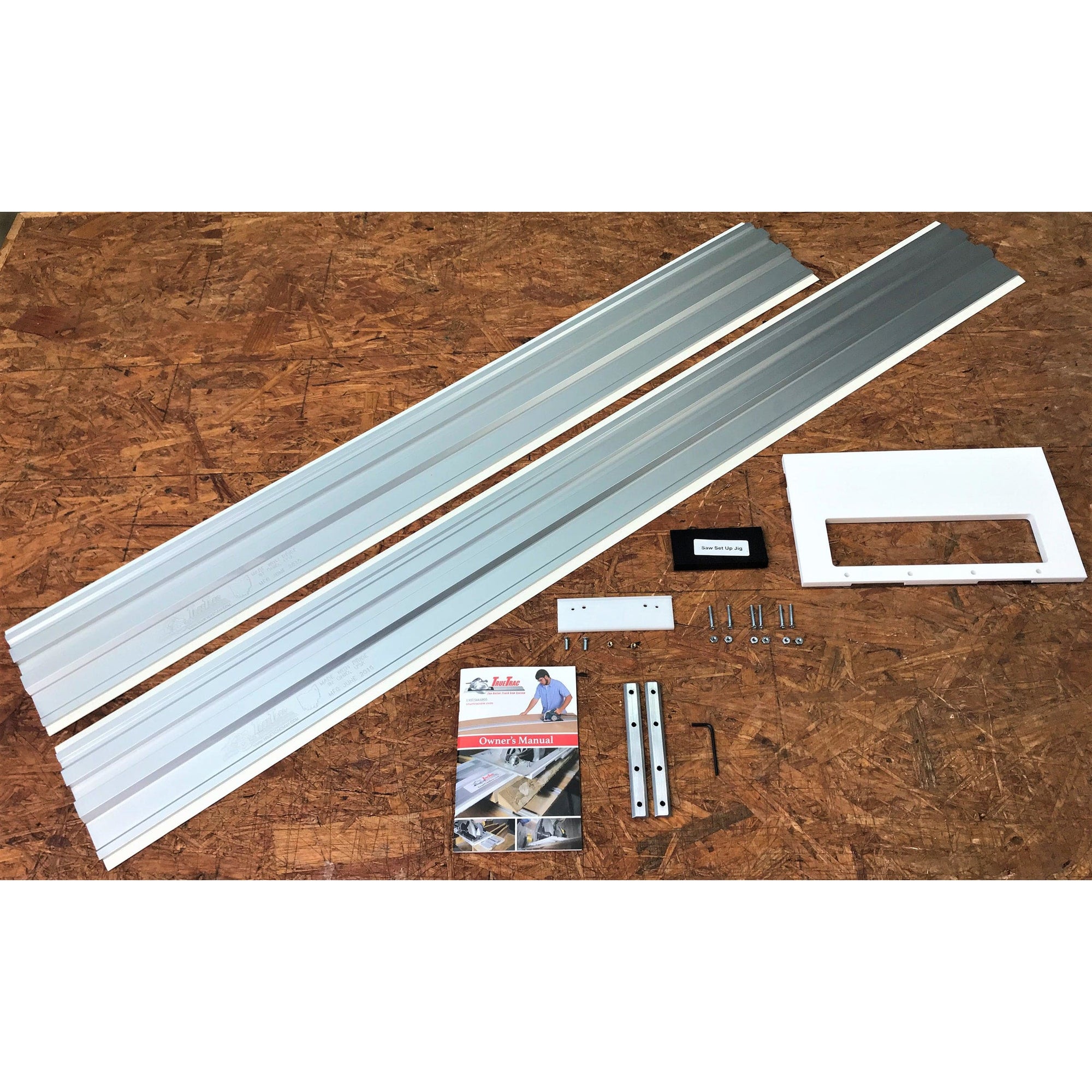

Includes:



  • One 57" track
  • One 48" track
  • Two 57" length anti-chip strips, installed on track
  • Two 48" length anti-chip strips, installed on track
  • Universal Saw Adapter Plate
  • Hardware packet (6 bolts, 6 nuts, L-shaped hex wrench)
  • Setup Jig
  • Two dovetail connectors, with setscrews installed
  • Zero Clearance Block
  • Installation instructions

Note: Circular saw is not included



Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 5-8 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

Insight Toolworks accepts returns within 60 days of receipt with prior authorization. Subject to restocking fee. Customer responsible for return freight. Item must be in new, resaleable condition. Contact Woodcraft Customer Service at 800-535-4482 for return assistance.

Warranty Information

Insight Toolworks (TrueTrac) warranties their products for 5 years against manufacturer's defects. Contact Woodcraft Customer Service at 800-535-4482 for warranty assistance.
