Oneida Air Systems - Supercell High-Pressure Dust Collector, 55 Gallon
Flat Shipping Fee of $99.00
From Oneida, the Supercell High-Pressure Dust Collector, 55 Gallon, may be the solution to your dust collection problems. Named for one of the world's most powerful cyclonic storm systems, the...
Item 171313Model XSK000014
Item 171314Model XSK000035
Item 172604Model XSK000014-P
Item 154402Model AXD000010
Item 424386Model 1792200HK
Item 158396Model AXD002030A
- 10x higher suction power than standard dust collectors
- Accommodates simultaneous use of up to 3 tools with 1" to 2.5" dust ports
- 3 - 1300W modular motors (combined 5HP equivalent) operates at 230V with magnetic starter and overload protector
- Wireless remote control operates at radio frequency
- Ultra-high efficiency cyclone separator removes 99% of dust from incoming airstream
- Premium HEPA filtration rated at 99.97% efficient at 0.3 microns with non-stick, PTFE membrane

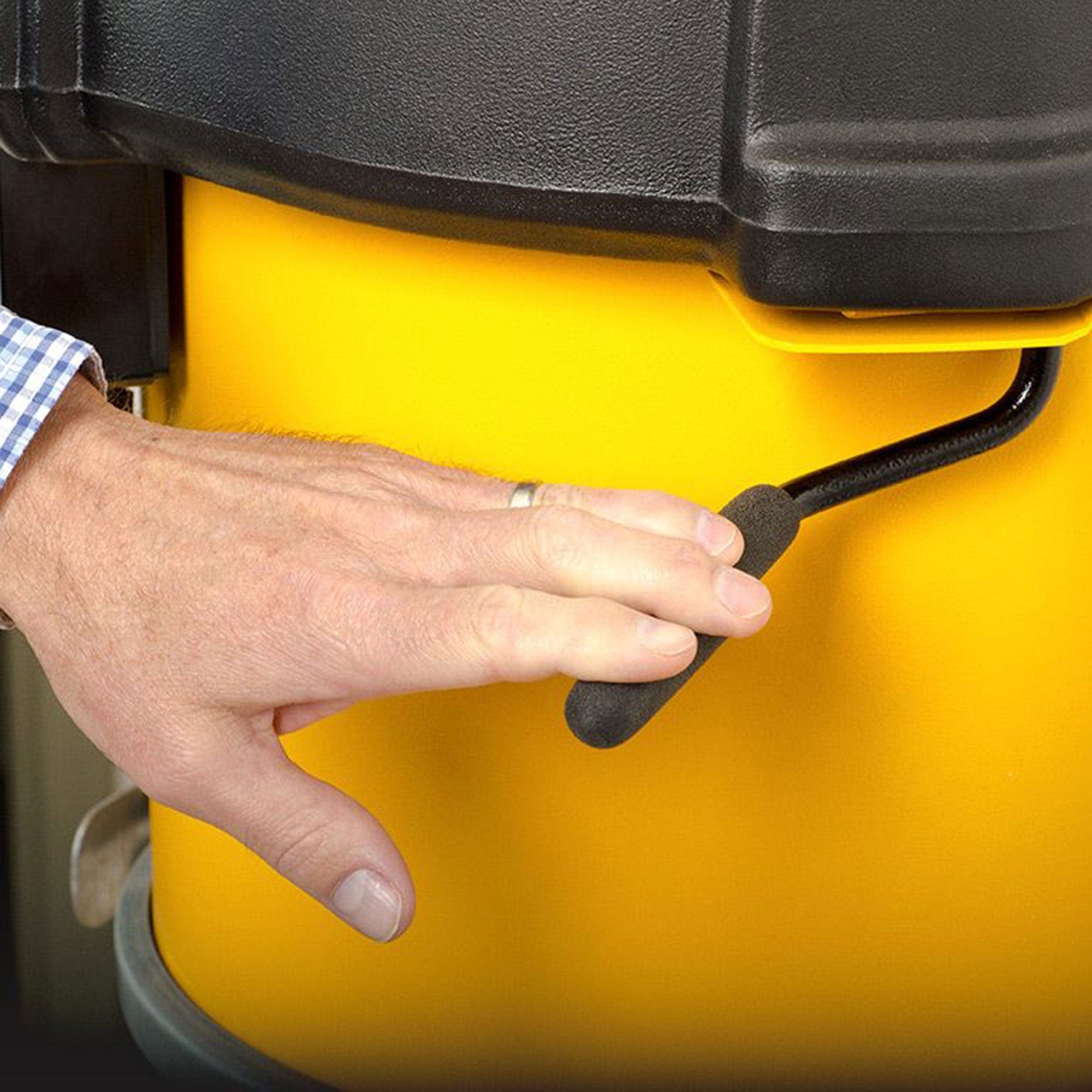

- Internal pulse filter cleaner removes clogs in seconds
- 55-gallon steel dust drum with liner bag holder and fill level viewing window
- Dust Sentry automatically alerts when the dust drum/dust bin is full
- Mounts to walls with standard 16" stud spacing. Inlet rotates to match your shop layout.
- Includes 25' of reinforced, 4" diameter vacuum-pressured rated flex hose

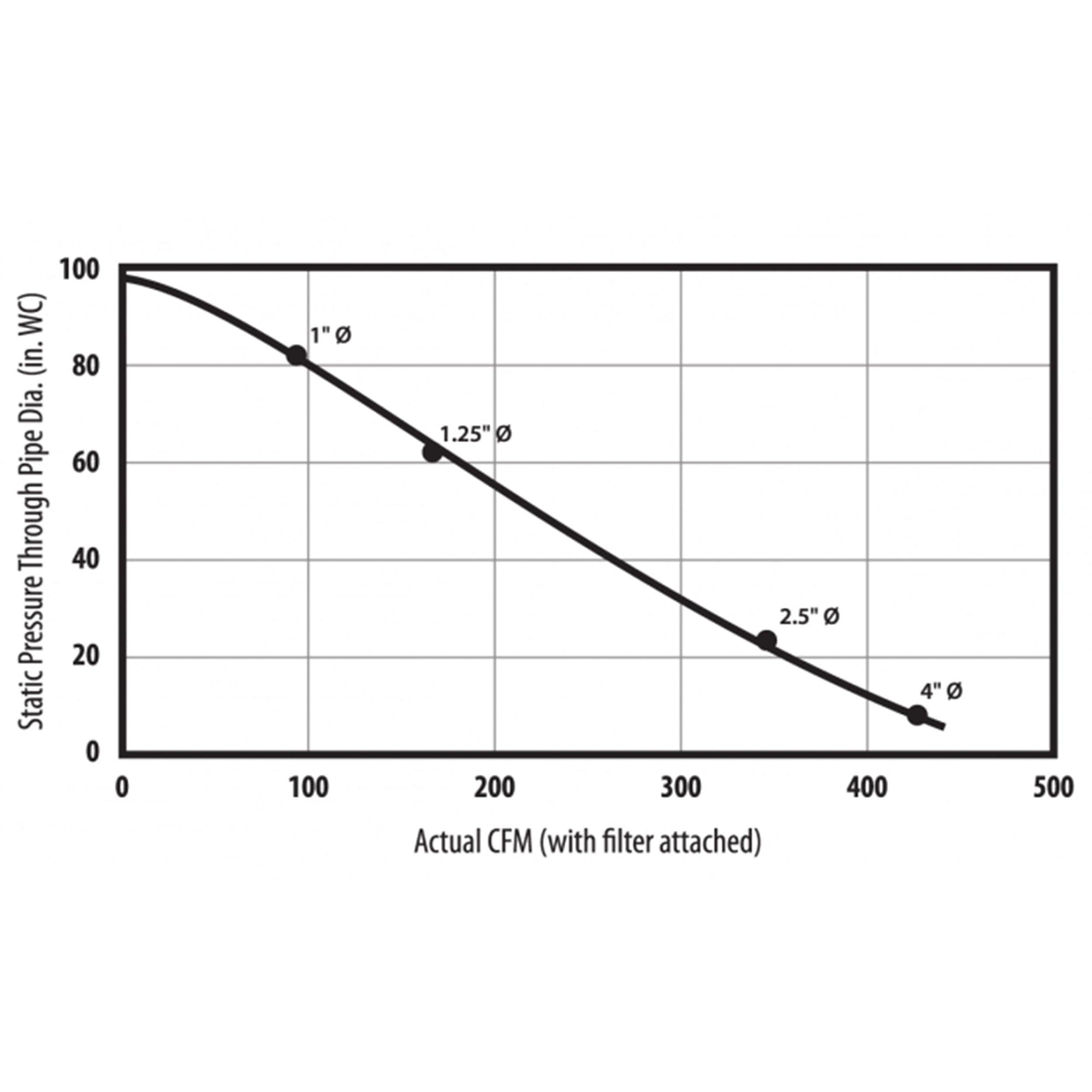

- Maximum Suction Rating: 97.8" WC
- Motor Type: 3x 1300W Modular Motors
- Horsepower: 5HP Total
- Motor Speed: 48,800RPM
- Phase: 1PH/Single Phase
- Voltage: 208-230V
- Cycle: 60HZ
- Listed FLA: 18A
- On/Off Switch: Magnetic Starter with on-off Switch preset for Included Remote
- Power Cord Length: 10'
- Power Connector: NEMA 6-20
- Recommended Circuit Size: 20 A
- Recommended Circuit Type: HACR
- Sound Emission: 80 dBA at 10'
- Filter Media Type: HEPA Certified
- Filter Efficiency: 99.97% at 0.3 microns
- Filter Surface Area: 40 sq. ft.
- CFM Rating: 465
- Waste Capacity: 55 Gallons
- Primary Build Materials: Cold rolled steel, SD Polyethylene, seam welded
- Static Resistance Rating: Conductive (metal)
- Inlet Size: 4' O.D.
- Discharge Size: 5"O.D.
- Measurements: 23.5"w x 23.5" d x 71.5" h
- Weight: 102lbs
- Fan Motor Assembly
- Magnetic Starter
- Remote Control
- Cartridge Filter
- Pulse Filter Cleaner
- Cyclone Separator
- Wall Bracket
- Blast Gate
- Turn Key Clamp - 2 each
- Dust Drum
- Dust Sentry Bin level indicator
- Bag Retainer System
- 25' x 4" Vacuum Pressure rated Hose
- 5 Liner Bags
- Viewing Window
1 year warranty
Only use vacuum pressure rated flex-hose and duct with the Supercell Dust Collector.
Due to systems high suction, standard hose/pipe may collapse and cause damage to equipment or injury.
Remote Control is packed in the starter.
Supercell requires a 20 Amp outlet receptacle.
