Shaper

Origin Handheld CNC Router

Item #187178
Regular price $2,899.00
Sale price $2,899.00 Regular price $2,899.00

Shaper's Summer Deal Is Here! FREE Shop Package with Purchase! Over $600 Value! Now Through June 26!

Bring digital precision to the craft of woodworking with Origin – the handheld CNC router. Cut with unparalleled precision, flexibility and effi. . . View More Details

In Stock

Shipping Info

Free item with purchase

Your free item will be added to the cart automatically

Items you may need

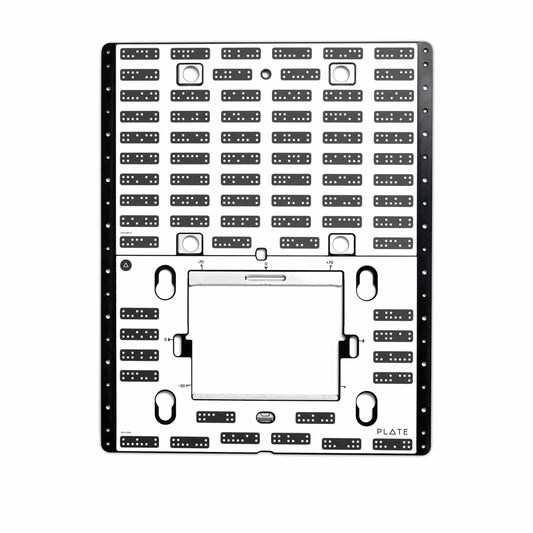

  • Shaper Plate for Origin Handheld CNC Router

    Regular price $375.00
    Sale price $375.00 Regular price $375.00
    Shaper Plate for Origin Handheld CNC Router alt 0

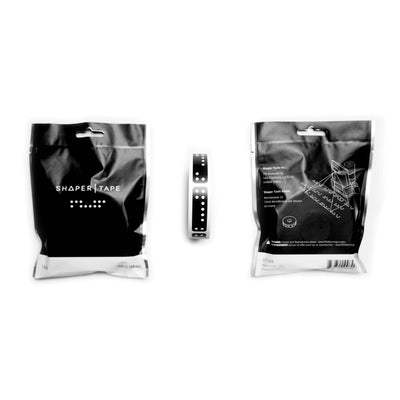

  • ShaperTape for Origin Handheld CNC Router - 150'

    Regular price $22.00
    Sale price $22.00 Regular price $22.00
    ShaperTape for Origin Handheld CNC Router - 150' alt 0

Details

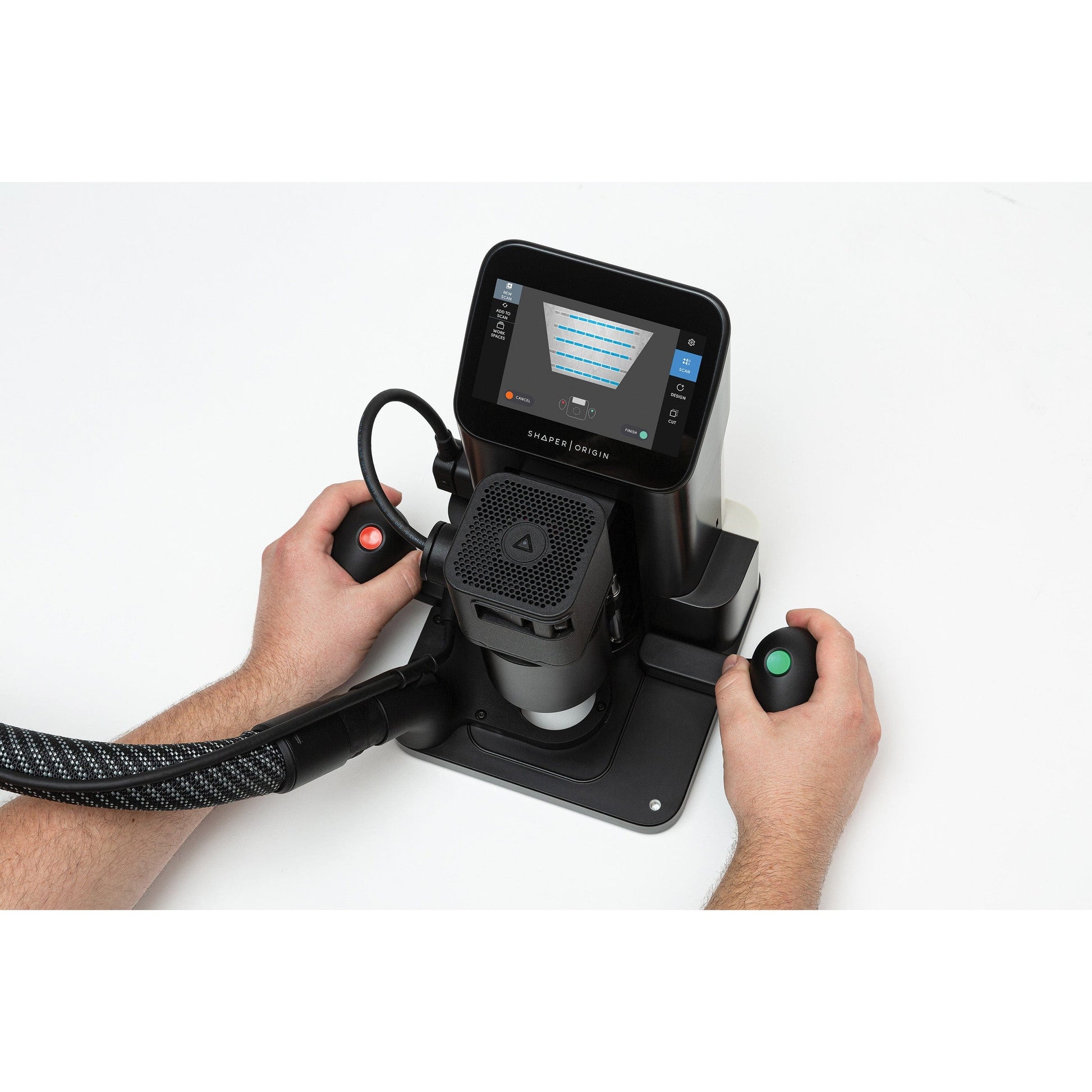

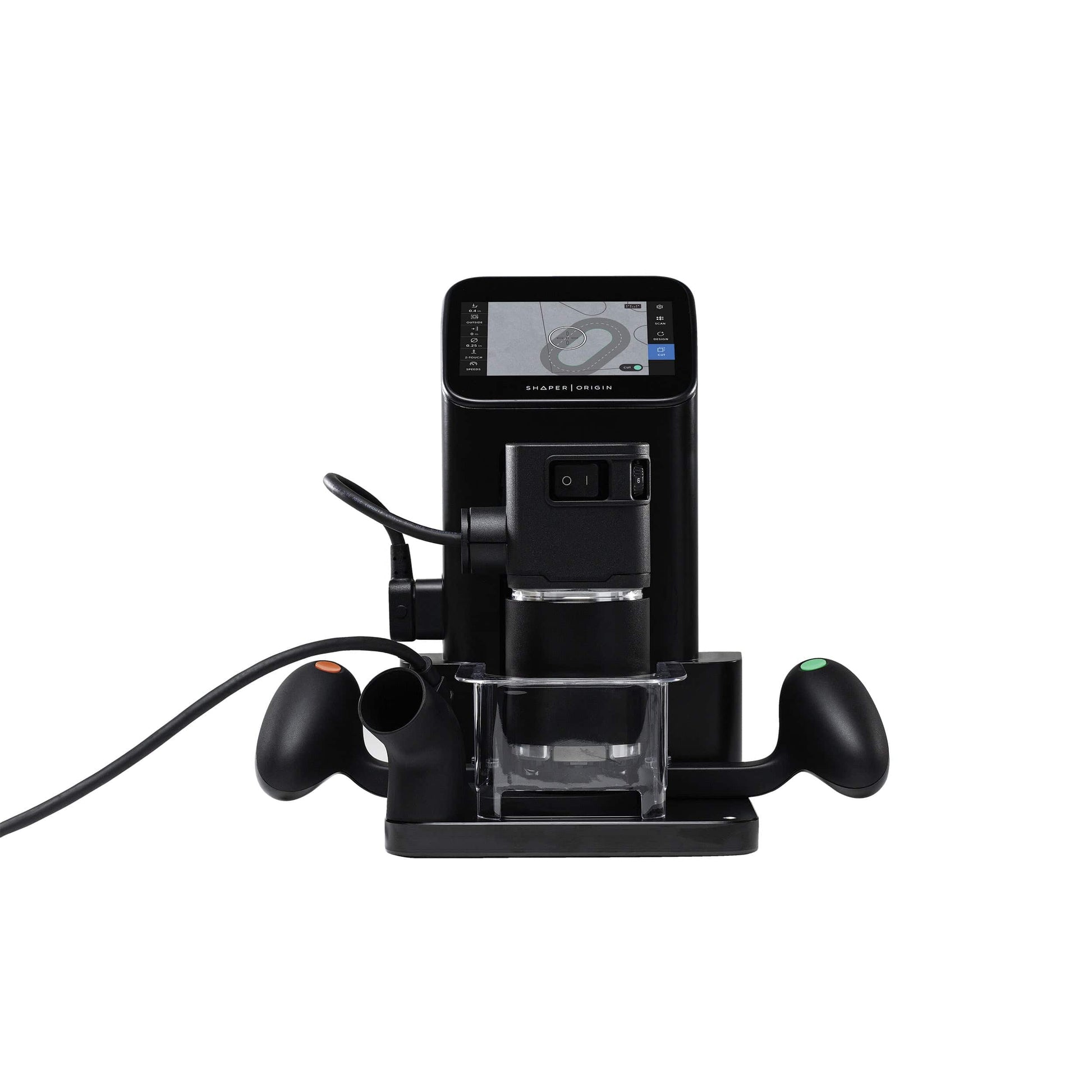

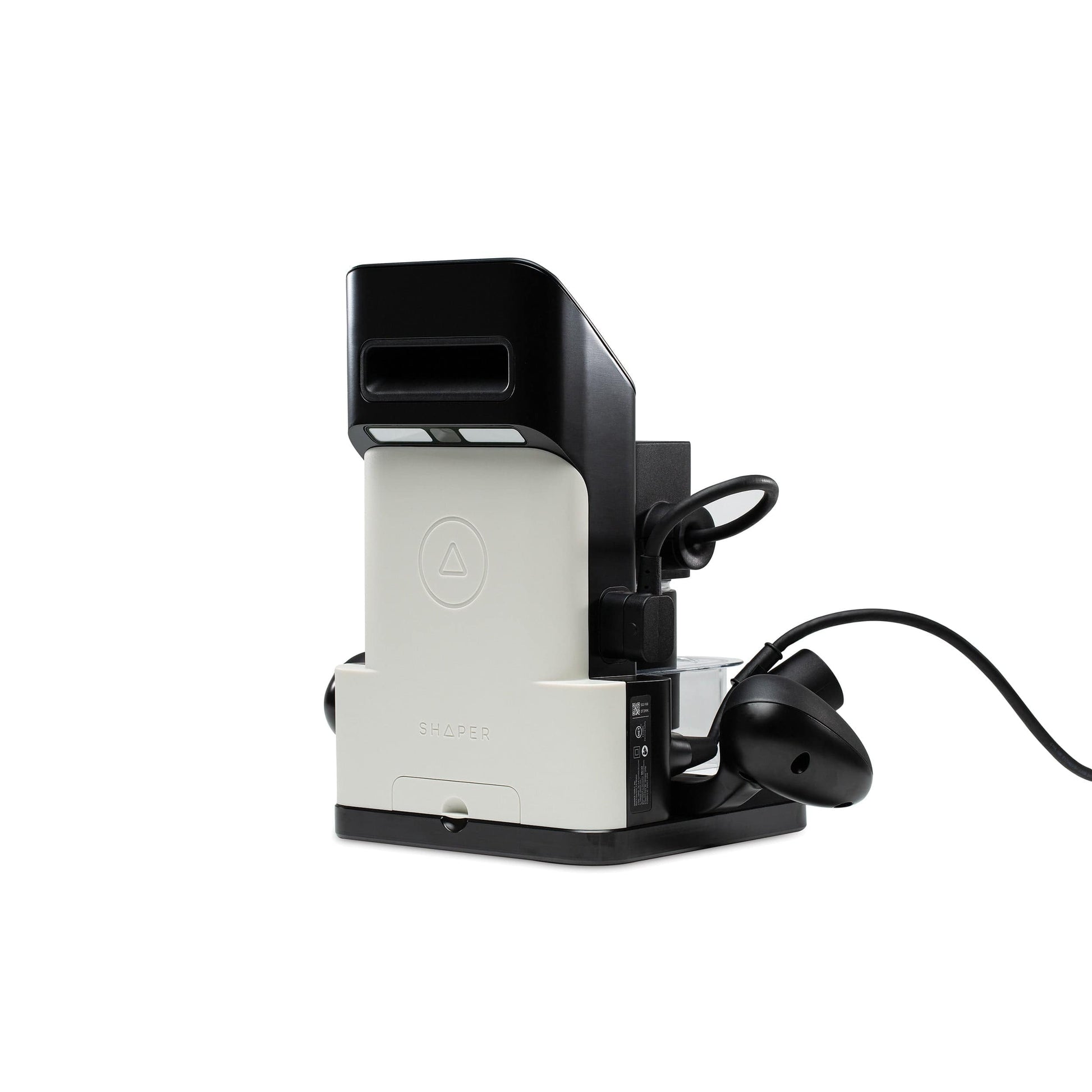

Bring digital precision to the craft of woodworking with Origin – the handheld CNC router. Cut with unparalleled precision, flexibility and efficiency. Origin is the world’s first hand-held CNC router. With onboard automatic cut correction, Origin makes precision cutting easy. Avoid the envelope limits of traditional CNC machines and tackle projects at a wide range of scales with a single, compact tool. With annual system updates and optional extensions, Origin is the only power tool that gets better with age. Create simple designs on the tool itself, or using Shaper Studio. You can also upload an existing design of your own.


Features:



  • Automatic cut correction
  • No programming required
  • Intuitive touch screen interface
  • On-tool design
  • Suitable with a range of router bits
  • Precise depth control
  • Easy adjustments for tight fitting joints
  • Cut perfect box joints and mortise and tenons
  • Work at any scale


Specifications:



  • Input Power: 120VAC, 60Hz. 7A
  • Spindle Motor: 720W brushed AC motor, 10,000 - 26,000 RPM with load-compensating speed control, Soft-start, over-temperature and over-load safety cut-offs
  • Collet: Includes a 1/4" collet that accepts any commonly available 1/4" shank router bits,1/8" collet sold separately (#190957)
  • Depth Control: 43 mm (1.7”) of total Z-axis travel, digitally adjustable depth-of-cut, automated touch-off sensor
  • Dust Extraction Port: Designed with the SM-1 spindle to provide optimal debris extraction, 34 mm inner diameter by 39 mm outer diameter port dimensions, fits most standard 27 mm (35 mm OD) and 36 mm suction hoses (e.g. Festool, Fein), includes a 6.5’ adaptor hose with a 2-1/4" OD nozzle for use with US-standard wet/dry vacs
  • Connectivity: Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updates, USB port allows easy offline transfer of design files

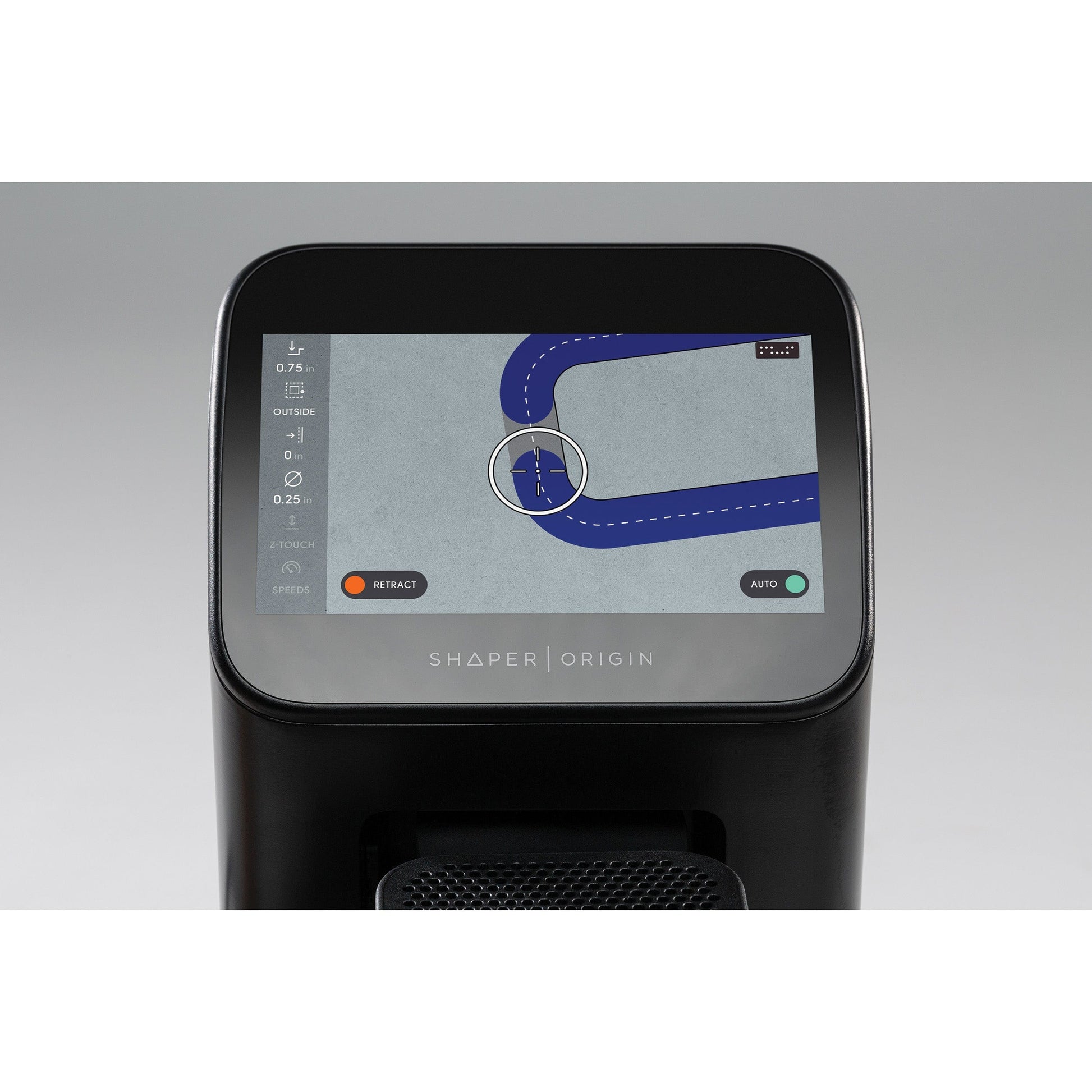

  • Touch Screen: Capacitive multi-touch full-color LCD
  • Dimensions: Origin: 13.35” (handle-to-handle) x 8.94” x 12.04”, Systainer: 15-1/2" x 11-1/2" x 17” (SYS 5 T-LOC Systainer)
  • Weight: Origin: 14.9 lbs, packaged (with accessories) in Systainer: 23.5 lbs


What’s Included:



  • (1) Shaper Origin Handheld CNC Router

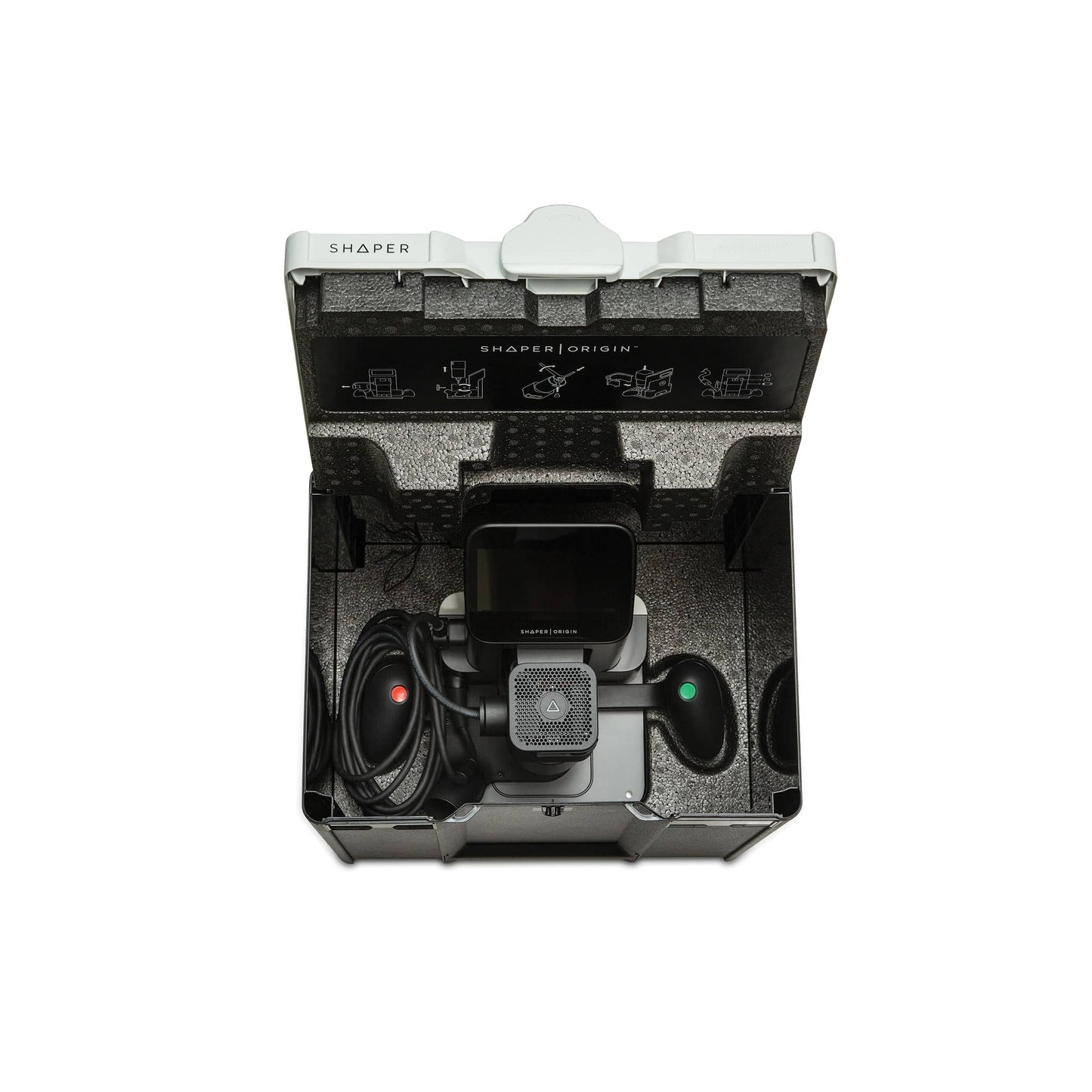

  • (1) Shaper Branded Systainer³ M437 Carrying Case
  • (2) ShaperTape (150' each)
  • (1) Tool change accessories
  • (1) Reusable transport locks
  • (1) USB A/C dual flash drive
  • (1) 1/4" Up-spiral flat router bit
  • (1) 1/8" Up-spiral flat router bit
  • (1) 60° Engraving router bit
