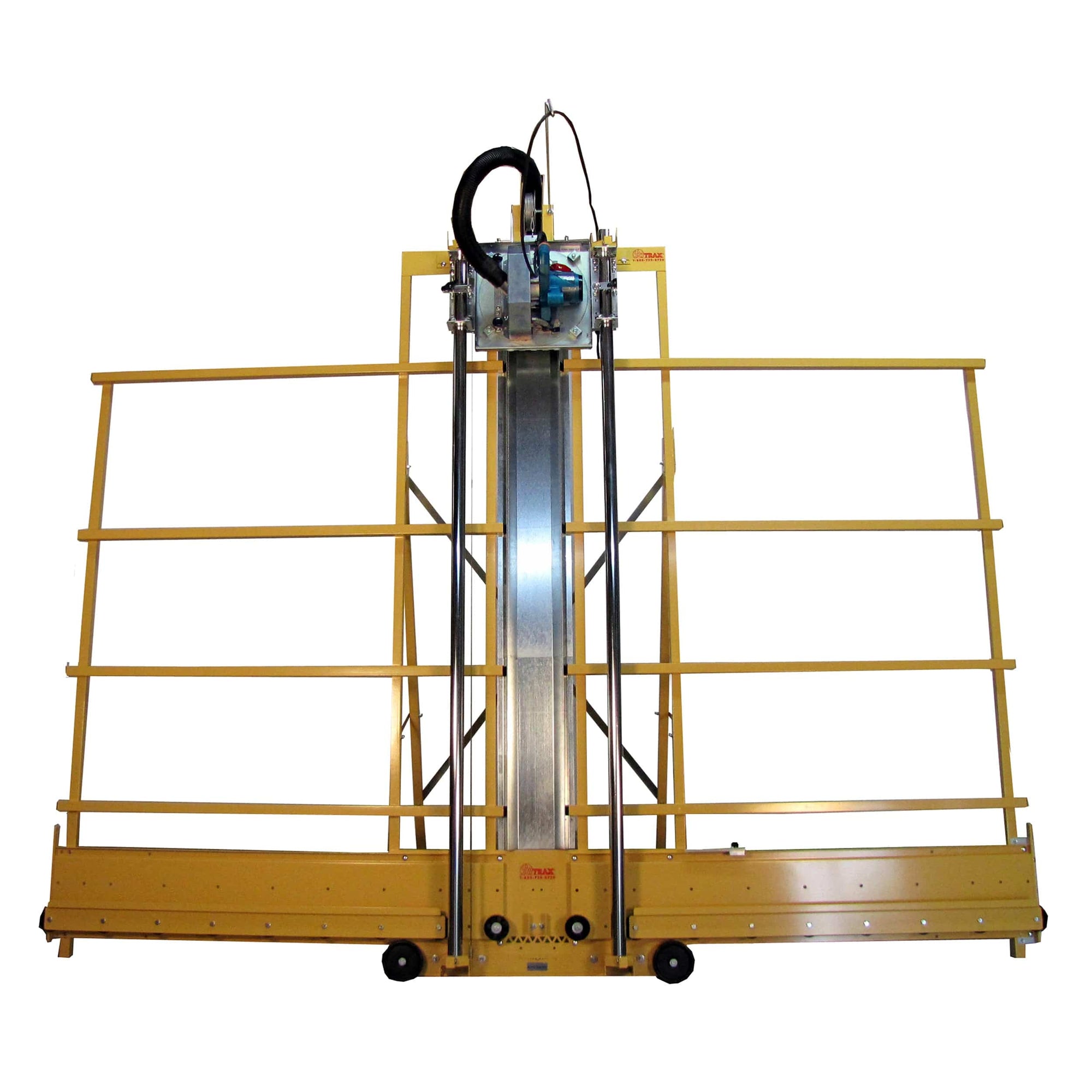

View a Larger Image of 1076 Full Size Panel Saw - 76" Crosscut
  • View a Different Image of 1076 Full Size Panel Saw - 76" Crosscut
  • Default
Item 416420
Model 1076

Saw Trax - 1076 Full Size Panel Saw - 76" Crosscut

$3,399.99

Write a Review
check in-store availability

Protect Your Purchase With A Woodcraft Protection Program

Learn More

  • - Contiguous 48 States Shipping Only

    Learn More

  • - Ships from Manufacturer, Expedited Shipping Unavailable

    Learn More

  • - Freight Shipments Deliver to Curbside Only

    Learn More

  • - Not Available for Express and Overnight Shipping.

    Learn More

  • - Ships in approximately 7 business days

The Saw Trax 1076 Panel Saws provides woodworkers with the ability to break down sheet goods that are less than 1-3/4" thick with precision cuts. This full size (10') panel saw lets you make cross...

More Details
Instructions / MSDS Videos

Compare With

Details

The Saw Trax 1076 Panel Saws provides woodworkers with the ability to break down sheet goods that are less than 1-3/4" thick with precision cuts. This full size (10') panel saw lets you make cross cuts up to 76" and unlimited rip cuts. Designed especially to provide additional material support and ease of use when rip cutting.

Features Makita 7-1/4" circular saw on a spinning saw insert and dust collection hook ups. The folding stand is as easy to open and close as a ladder while providing complete stability during operation. For portability and mobility, transport wheels are included.

Both the vertical and horizontal measuring systems ensure accurate cuts while the stop bar lets you make repetitive cuts. The patented Accu-Square alignment system assures that your machine will stays square. The unique sealed roller bearing system provides for smoother carriage action and tighter tolerances.

Specifications

  • Blade Size: 7-1/4"
  • Arbor: 5/8"
  • Depth of Cut: 1-3/4"
  • Frame Width (set up): 122"
  • Max. Cross Cut: 76"
  • Max. Rip Cut: unlimited
  • Shipping Weight: 460 lb.
  • Operating Dimensions: 122" W x 42" D x 102" H
  • Makita 7-1/4" Circular Saw
  • 120V, 15AMP
  • 5800 RPM
  • Single Phase


Includes: Accu-Square Bracket, Accu-Fence, Trigger Lock, Spinning Saw Insert, Dust Collection hook up and brush, Material Rollers and Hubs, Dual Rip Gauge, Measuring Tape, Stop Bar with two (2) Tapes, and a General Purpose Blade.

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Express or overnight shipping is not available for this product.
  • Ships via ground to the 48 contiguous states.

Return Information

Saw Trax accepts returns on warranty claims only.

Warranty Information

Saw Trax offers a 1 year limited warranty. Contact Woodcraft Customer Service at 800-225-1153 if you have a warranty issue.
