RIKON

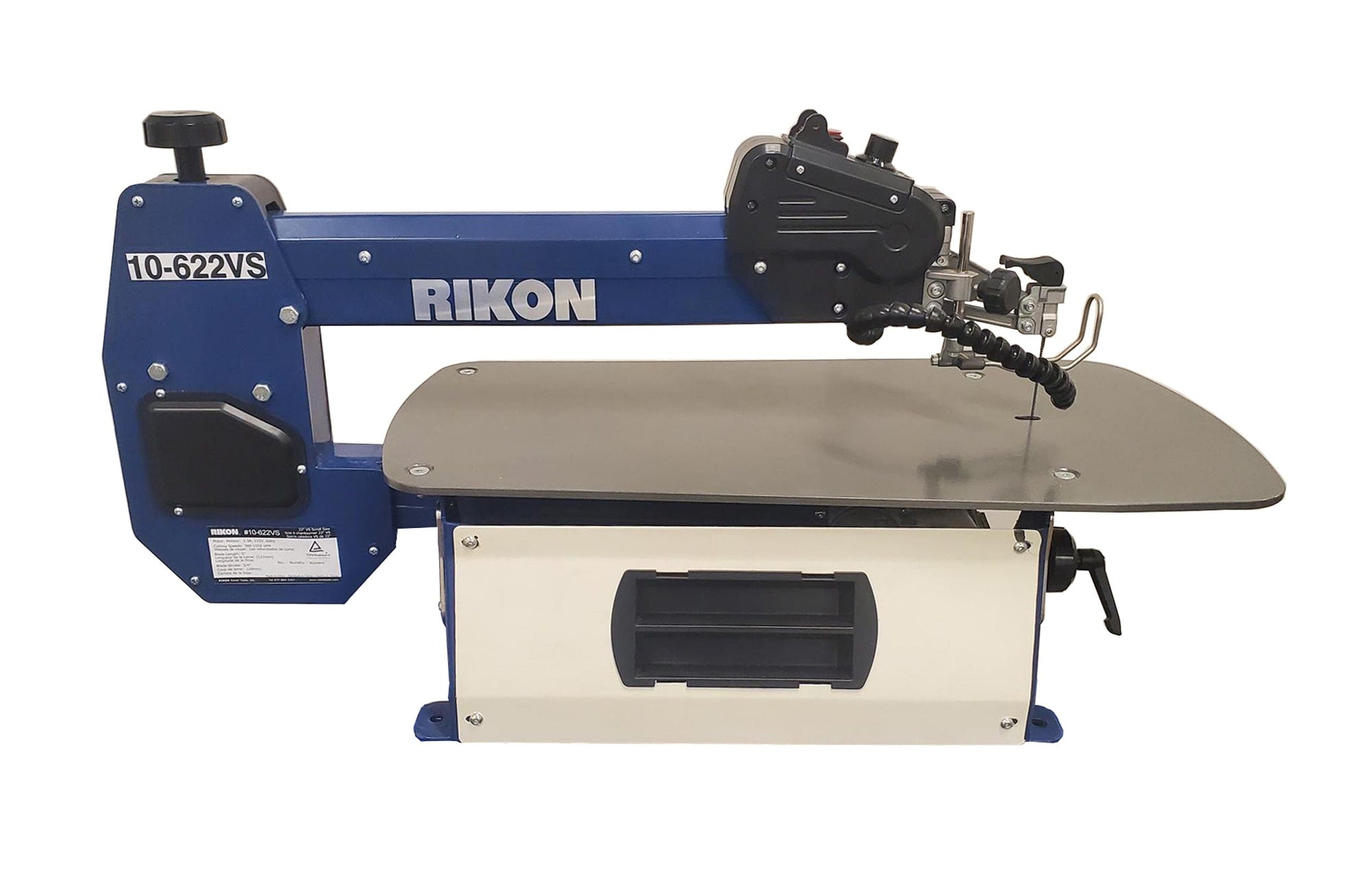

22" Variable Speed Scroll

Item #184545
$599.99
$599.99 $599.99
Rikon 22" Variable Speed Scroll Saw is designed for making small, intricate curved cuts in thinner woods that are used in making decorative scrol. . . View More Details

Ships from Manufacturer

Shipping Info

Details

Rikon 22" Variable Speed Scroll Saw is designed for making small, intricate curved cuts in thinner woods that are used in making decorative scroll work, puzzles, inlays, and craft items. The thin, working blade allows the material being cut to be freely turned in tight arcs, unlike any other power saw. The DC motor provides variable operating speeds, so adjusting the blade’s cutting action to different materials is easily done with just a twist of the dial. The saw’s extra deep 22” throat and large steel table give extra access and stability when sawing large projects. Table also tilts left and right for making angled cuts. Machine uses 5” long plain end (pinless) blades. Includes sturdy, all-metal base, adjustable built-in dust blower nozzle, lower dust port with vacuum attachment and blade/tool storage in the base.

Features:

  • Extra large finished steel table measures 25-5/8″ long x 13-3/4″ wide and tilts -30° Left to 45° Right for angled cutting
  • 36 holes surrounding the main hole for the blade aids in dust removal when the saw is used with a vacuum
  • Reliable 1.6A, 120V, 60Hz motor with Electronic Variable Speeds allows speeds from 550 to 1550 strokes per minute (SPM)
  • Ideal for setting the best cutting speeds for working a variety of materials – woods, plastics, soft metals etc.
  • Maximum cutting height is 2″. Saw’s cutting up/down stroke is 3/4″
  • Dust port diameter is 1-3/8″ (35 mm) O.D. and includes a 90° Dust Hose fitting attachment
  • Base to table height is 7-9/16″ (192 mm)

Specifications:

  • Motor Amps, Voltage, Hertz: 1.6A, 120V, 60Hz
  • Electronic Variable Speed - Strokes Per Minute: 550 - 1,550
  • Blade Length: 5"
  • Cutting Height - Maximum: 2"
  • Stroke: 3/4"
  • Throat Depth: 22"
  • Table Tilt - Left: 30° - 45° Right
  • Dust Port Diameter: 1-3/8”
  • Maximum Sound Level - Idle: <80dB
  • Overall Size (L x W x H): 34" x 14-1/8" x 16"
  • Base Size (W x D): approximately 9” x 15-1/2”
  • Net Weight: 68 lbs

What's Included:

  • (1) Rikon® 22" Variable Speed Scroll

Shipping / Billing Information

This product ships direct from the manufacturer:

  • Your order will ship in approximately 7-21 business days.
  • This product is considered special order. Your account will be charged when you place your order.
  • Residential delivery fee applies for all LTL items.
  • Express or overnight shipping is not available for this product.
  • Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.

Return Information

If you have a return issue, contact Woodcraft Supply customer service @ 1-800-535-4482 for return details. Customer pays return freight.

When returning product, please include the invoice number or customer number and refer to the back of the invoice for shipping instructions.

If purchased at a Woodcraft Store, please return the item directly to the store where your purchase was made.

To be eligible for credit for returned Rikon goods, customers must comply with each of the following requirements:
    Written authorization to return any products must be obtained from the RIKON Power Tools Customer Service Department before the products are returned. RIKON Power Tools will issue a Return Goods Authorization Number (RGA#), which must be clearly marked on the shipping label and bill of lading with the returned goods. RIKON Power Tools Will Not Accept Any Unauthorized Returns. A 15% restock fee will apply.

    Warranty Information

    Rikon offers a 5 year warranty.Customers with warranty claims, defective or damaged goods should contact RIKON Power Tools before returning any product to the distributor. RIKON Power Tools reserves the right to ship parts to effect repairs or replace product, whichever they may deem appropriate.

    Request to return defective or damaged goods by distributors must be submitted to RIKON Power Tools and will be reviewed for product misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear before giving authorization to return said goods.

    Defective/Damaged goods that are returned to RIKON Power Tools and show misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear are subject to a restocking charge equal to 15% of the credit given for the returned goods or $25.00, whichever is greater.
