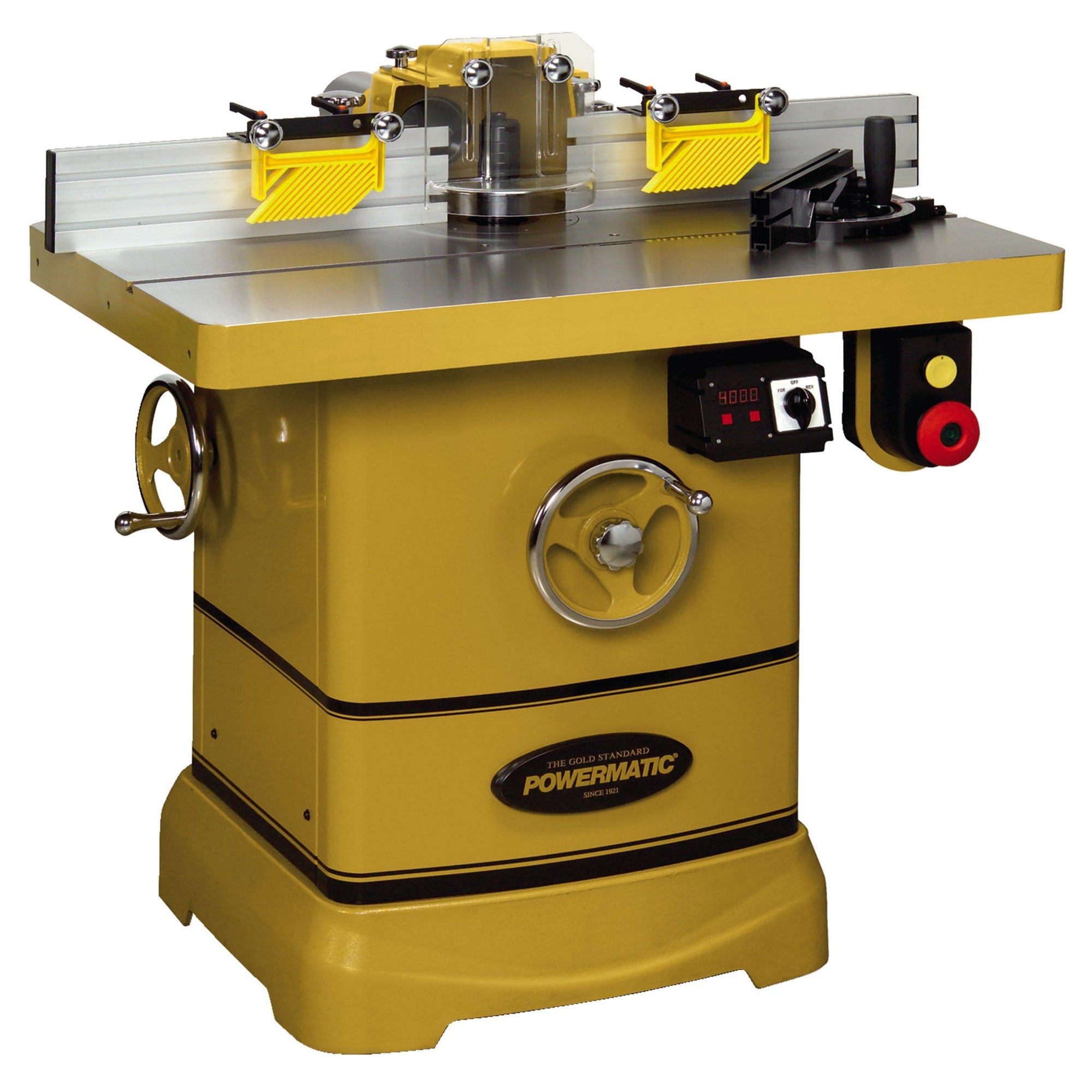

Powermatic - PM2700 Shaper, 3HP 1PH 230V
This new PM2700 Shaper offers more features to you than any other shaper in the same class. The extra large 30" x 40" precision ground cast iron table includes a heavy duty miter gauge with an...
Item 424388Model PM23150K
Item 823891Model 1791284
Item 424389Model PM23150RK
Item 819164Model 1791241
• Integrated caster system built into the cast iron base for instant shop mobility
• Spindle height digital readout for making fine incremental adjustments on multiple passes
• Heavy duty 30" x 40" precision ground tabletop for smooth stock feeding
• Convenient quick lock belt tensioning for easy speed adjustment
• Industrial fence system with fine adjust dials for more precise positioning
• 3HP totally enclosed motor offers plenty of power
• Two spindle speeds (reversible) for a variety of work
• Superior clear cutter guard promotes safety, allows observation of the entire cut
• Table predrilled and tapped for feeder mounting in two locations
• Fence has dual featherboards for work holding
• Dual 4" ports for attachment to dust collection system
• 3/4" and 1-1/4" interchangeable spindle collets
• Spindle height digital readout
• Featherboard hold downs
• Deluxe miter gauge
• Integrated caster system
Amps : 14
Digital Readouts : spindle height
Dust Collection Minimum CFM Required : 600
Dust Port Diameter (OD/in) : 4 (dual ports)
Electrical Controls - Magnetic Starter : magnetic
Fence Size (L x H/in) : 18-3/4 x 4-7/8
Height (in): 45
Length (in): 40
Motor HP : 3HP
Motor Phase : 1PH
Motor Voltage : 230V
Net Weight : 664 pound
Overall Dimensions : 40x37x45
Part Number : 1280100C
Reversible : Yes
Router Bit Collet Diameter (in) : 1/4 and 1/2 (optional)
Spindle Diameter (in) : 3/4, 1-1/4
Spindle Size Under Nut (in) : 3/4 spnd = 3-3/4, 1-1/4 spnd = 6
Spindle Speed (RPM) : 7,500 & 10,000
Spindle Travel (in) : 4
Table Height From Floor (in) : 35-1/2
Table Insert Opening Diameter (in) : 2.55, 4.16, 5.75
Table Inserts : (3) 2.55", 4.16", 5.75" I.D.
Table Opening Diameter (in) : 7-3/8
Table Size (in) : 40 x 30
Table T-Slot (in) : standard
Width (in): 37
Shipping weight 698 lb.
