Powermatic
14" Woodworking Bandsaw - 1-1/2 HP 1 Ph 115/230V - PWBS-14CS
$1,699.99
Shipping Fee of $99.00
The Powermatic® PWBS-14CS can handle the most demanding tasks with ease. Equipped with a powerful 1-1/2 HP motor, this 14" woodworking bandsaw delivers reliable performance for various cutting applications. Offering a full 6" under guide capacity with 13-1/2" frame to blade clearance,...
Items You May Need
-
$149.99
-
$49.99
$59.99
Details
The PWBS-14CS has an extra-large, two-piece cast iron table. It consists of a 15 x 15" tilting section and a fixed 15" x 5" extension for a total working surface area of 15" x 20". The balanced, 9-spoke cast iron wheels ensure smooth operation. At the same time, the micro-adjustable dual-bearing blade guide system guarantees precise blade control above and below the table. Carter's quick tension release lever expedites blade changes, making your workflow more efficient. The rigid, one-piece welded stand requires no assembly, providing long-term stability and durability. Illuminate your work area with the built-in 60-watt halogen lamp, providing direct light on the blade and workpiece for enhanced cutting visibility. The chip blower ensures a clean and precise cut line, allowing you to maintain accuracy throughout your projects.
Features:
- Extra-large, 2-piece cast iron table for a total working surface area of 15" x 20"
- 1-1/2 HP 115/230V motor
- Full 6" under-guide capacity with 13-1/2" frame-to-blade clearance
- Poly V-belt maximizes power transmission while minimizing noise and vibration

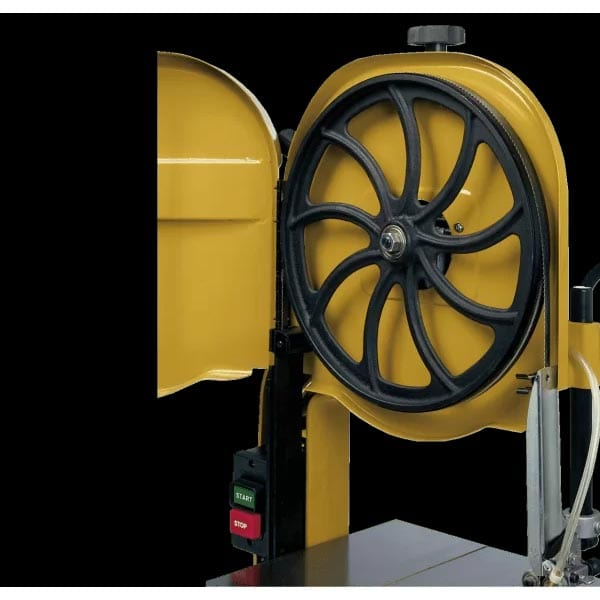

- Balanced, 9-spoke cast iron wheels run smoothly
- Easy-to-read tensioning gauge settings indicated in blade width increments
- Carter quick tension release lever speeds up blade changes
- Durable micro-adjustable dual-bearing blade guide system above and below the table
- Quick-release T-square style fence system with resaw assembly
- 93-1/2" long blade with a blade width ranging from 1/8" to 3/4" wide
- Option for a 6" Riser Block, making the total blade length 105"
- 60-watt halogen lamp built into the body, providing direct light on the blade and workpiece while cutting
- Chip blower ensures a clean, visible cut line
- Built-in 4" dust port
- Frame-mounted push-button switch
- Rigid 1-piece welded stand requires no assembly
- Style: Floor Model
- Motor Type: TEFC (totally-enclosed fan-cooled)
- Motor Power: 1-1/2 HP
- Motor Current: 11 / 5.5A
- Motor Phase : 1
- Motor Voltage: 115 / 230V
- Prewired Voltage: 115V
- Recommended Circuit Size: 30A (115V), 20A (230V)
- Wheel Diameter: 14"
- Blade Length: 93-1/2" (With 6" Riser Block installed, blade length required will be 105")
- Blade Speed: 3000 SFPM
- Cutting Capacity Height: 6"
- Cutting Capacity Width: 13-1/2"
- Dust Collection Minimum CFM Required: 350 CFM
- Dust Port Outside Diameter: 4"
- Maximum Saw Blade Width: 3/4"
- Minimum Saw Blade Width: 1/8"
- Overall Dimensions (L x W x H): 20" x 34" x 68"
- Stand Footprint (L x W): 16" x 17-1/2"
- Table Height from Floor: 44"
- Main Table Size (L x W): 15" x 15"
- Extension Table Size (L x W): 15" x 5-1/2"
- Table Tilt: 10° Left, 45° Right
- (1) Powermatic - PWBS-14CS 14" Woodworking Bandsaw
- (1) 6” Riser block kit
- (1) Adjustable miter gauge
- (1) Rip fence
- (1) Gooseneck work light and chip blower
- (1) Bandsaw blade - 93-1/2" x 3/8" x 0.020" x 6 TPI
- With 6" Riser Block installed, blade length required will be 105"
Shipping / Billing Information
All shipments must be inspected and any damage reported within 3 days of receipt.Address corrections and cancellations may not be possible once order is submitted. Requested changes may incur additional charges.
This product ships direct from the manufacturer:
- Your order will ship in 4 -7 approximately business days.
- This product is considered special order. Your account will be charged when you place your order.
- Express or overnight shipping is not available for this product.
- Ships by Ground to the 48 contiguous states. Cannot ship to Alaska, Hawaii, PO Boxes, APOs, US Territories, Canada or other foreign countries.
Return Information
All returns must be pre-approved. Any non-warranty returns must be unused and in original packaging. A 25% restock fee will apply. Customer pays return freight. Please call our Customer Service Dept. at 1-800-535-4482 with any return questions.
Warranty Information
Because this item is purchased and shipped directly from the manufacturer, their warranty supersedes any offered by Woodcraft. Click here for Powermatic Warranty
Instructions / MSDS
Articles & Blogs
The American Woodshop’s Back Door Pass with Scott Phillips
The American Woodshop with Scott Phillips begins it’s 18th season on PBS starting on Monday, August 29th, 2011. This year’s 13 episodes entitled “Weekenders,” focus on woodworking projects to augment the home. While discovering and using new tools to become a more proficient woodworker, you should be able to finish each of these projects in one weekend.
The American Association of Woodturners 2012 Symposium
The American Association of Woodturners (AAW) held its 26th annual International Symposium in California’s Silicon Valley this past June at the San Jose McEnery Convention Center.
With over 14,500 members, this international nonprofit organization is dedicated to the advancement of excellence in woodturning with the mission of providing education, inspiration, information, and organization to those interested in the art of traditional woodturning. This show provides the opportunity to learn new techniques, improve skills, and share the knowledge of woodturning.
The Quick Turned Bowl with John Wolf
You might say, what’s the big deal about turning a bowl in about 3 hours time, anyone can do that! Well in this project we will instruct you on how to turn a bowl while it’s green, dry it, finish it, all in just a few hours. John Wolf (from the Turning Tuesday’s woodworkers) shows us how it’s done starting out with a piece of “green” curly maple saved from the scrap pile.
Joe Ness Wins $15,000 Gold Rush Sweeps
After 21,961 de-duped entrees to the Gold Rush Sweepstakes sponsored by Woodcraft, Powermatic and Woodcraft Magazine, we have our winners list to share with you. The contest promotion ran from August 1 to September 30th, 2013 where there were 5,552 store entries and 16,409 online & mail-in entries. Winners were selected on October 10, 2013.
Reviews
-
changing drive belt
The best way I have found to change the drive belt is to find an old sizer lift jack to use. Have the 4 motor bolts just a little less then finger tight so the motor will slide down and up. Place the jack under the motor on level floor and jack up motor to put belt on. Use a small level to make sure motor is level. Next, lower the motor to as tight as the belt will go with out changing to level. Spin the belt by hand and if the belt hold it's groves then tighten the bolts. Worked great on my saw doing all the work by myself. Machine is great, but instruction in manual on this will drive you nuts.
-
Powermatic 14"
I just finished setting up my new Powermatic 14" band saw. I also purchased the riser kit. I did not run into any real problems and the instructions were good. Adjusting the tension on the motor with the belt was a little tricky. I had to cut a block of wood to support the motor while I adjusted bolts. The only issue I have is the light does not work ( No it's not the bulb )I need to trouble shoot that one yet Overall it seems to be a very well built saw.
-
Nice bandsaw but ...
Nice bandsaw but break out your tap and die set to assemble. There is a lot of paint and debris in the threads of the pieces. You don't want to cross-thread or break a bolt or screw. Once you set up this saw properly, everything tracks true which makes for nice cuts.
-
Powermatic PWBS-14CS Bandsaw
PWBS-14CS Bandsaw owners will tell you that properly adjusted it is a great machine and I am no different. It takes some research and experimentation to get the saw tuned just right. It is worth it. Read Mark Duginske's Band Saw Handbook first before tuning the bandsaw. The biggest flaw I have found so far is the tensioning of the drive belt. What a joke!!! Other bandsaws make provisions for this but not this one. You can struggle with this for a long time before it is right. I finally made a jig to help me get the motor down far enough to tension the drive belt. Blade tensioning is easy compared to drive belt tensioning on this machine. I read alot of comments before I purchased this bandsaw about how bad assembly instructions were written, poor castings, saw not cutting right, missing parts, etc and I did not encounter any of it. My 4 star rating was influnced by the drive belt tensioning experience.
-
Powermatic, the best
Excellent all the way across the board. Riser kit installed without a hitch. I highly reccommend this saw.
-
My first Big Boy Bandsaw
Great saw. My first "real" bandsaw and I'm impressed. The only issue I had was the lower trust bearing barely has enough clearance for my 3/4" resaw blade, but I'm pushing the limit of the saw so I really can't complain. Love it and look forward to creating dust for years to come!!!
-
Powermatic 14
I completed a lot of research prior to making my final purchase decision. I went with the PowerMatic due to its performance in history/quality. This being my first bandsaw, I found the assembly required was more than for one person. The overall design is very good. I did have problems in various adjustments mostly due to access and getting use to the machine. One alan wrench was missing from the tool set but, I had enough hand tools to take care of this issue. Getting tension set for the motor was a little difficult due to the small space through the back door, for access. After working with the trunnion mount and extension table, I finally got the saw squared up and both tables level. It takes a little getting familiar with this new saw, in order to get it setup to make straight cuts. My first experience in replacing the original 3/8" blade with a 1/2", took a little effort but, good experience. Use gloves to work with the adjustment of the new blade. Taking time to adjust the upper and lower bearing blade guides makes a big difference in cut performance. I even called and talked to a tech and he was very helpful. He gave me some helpful hints on adjustments. Now I'm ready to do some projects. I really like the quality of this saw and want to switch over to 220 volt. That seems to be more trouble because, of the small access space to the motor in order to switch the wires. Plus you need to either use a 220 volt bulb for the lamp or ground one leg of the lamp on the 120 volt side.
-
Powermatic 14" Great machine
I am a serious non-professional. I bought mine several months ago and it works great. Powerful, and accurate. The blade that comes with it has proven to be a good one. The blade tracks very well. Something you would expect from a good machine. I assembled this myself, I recommend you use two people as it is a heavy assembly. I would suggest you purchase the mobile base. I did and it is sturdy and makes movement easy. I don't usually move it, but due to my shop size I sometimes need to. I have the Riser block, but have not installed it yet, I can see it would work nicely if you are re-cutting boards etc.
