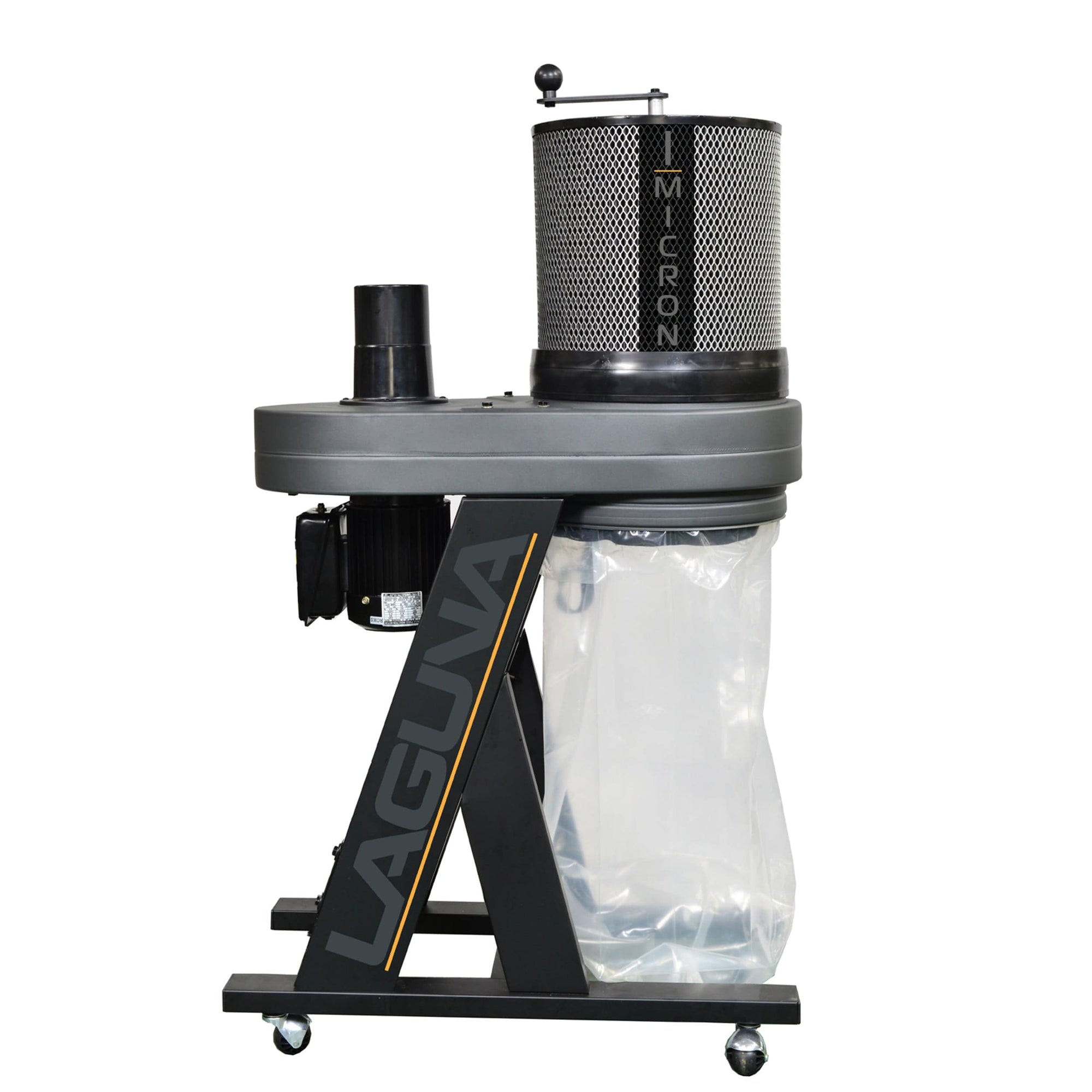

B | Flux 1 HP 110 v Canister Dust Collector
Shipping Fee of $150.00
Laguna’s B|Flux has a sleek design and power to match. You won’t have to fumble with a steel band to mount your lower bag, the B|Flux comes with a patented SnapBand that makes changing the bag a breeze. Unlike most 1 HP units the B|Flux feels solid and has a low dB rating. The...
The B|Flux:1 comes standard with a 1 micron canister providing filtration of 99.97% of particles between 0.2 to 2 microns and features 17.2 square feet of polyester spun bond pleated filter to ensure maximum airflow. Its hand crank cleaning prevents clogging of the filter.
- Motor HP: 1 HP, Single Phase, 110V
- Amps: 8.4
- Hertz: 60 Hz
- RPM: 3450
- Motor mounted direct switch
- Nominal CFM: 650
- Max Static Pressure (inches of water): 4.86”
- Impeller / Fan Size: 9”
- Impeller Material: Steel
- Inlet Diameters: 4” x 1 ports
- Filtration efficiency: 0.2 - 2micron @ 99.97%
- Canister cleaning: Manual hand crank
- MERV Rating: 12
- 2” ball casters
- Machine Weight: 71 lbs.
- Shipping Weight: 77 lbs.
- Assembled Dimensions (L x W x H): 29” x 14.8” x 50.4”
Great for a small shop
I have a small shop. Permanently connected to my SawStop, but have ports available to connect to my Router table, planer, bandsaw and jointer. Just have to juggle the ducts/tubing. Great improvement over a shop vac. Yes you can assemble with the intake coming from below the fan, or above. Your choice. Physical size just perfect, and Dust collection and noise both greatly improved.
Nice unit, but i wish inlet port was better designed for airflow. Why does a 1hp unit have a inlet facing up?
Spend a little more for better quality
Have had the same problem. Dust constantly coming out from seems of motor housing and added issue of intake tube clogging once and awhile just before the motor. Only run a table saw and Dewalt Planer with dust separator to the unit. Does the job but for the money shouldn't have these problems.
Product seemed to be very high quality and sturdy but was disappointed to find air leaking from where the motor mounted to the unit. Emailed customer service and was told "sorry, shouldn't be leaking air, take it apart and put silicon caulking around it". Expected much better quality given the price. Hopefully an anomaly but expected better.
