The OF 1010 R router enables you to work with maximum precision. The double-sided column clamp makes it extremely torsionally rigid and the parallel edge guide can be precisely adjusted without any tools. The easily accessible working area with LED light ring provides an optimal view of the workpiece. The light ring provides shadow-free lighting directly on the workpiece; everything you need for extremely precise routing results. Moreover, thanks to the extensive range of accessories, the application possibilities of the OF 1010 R are virtually unlimited.

• Ergonomic: Thanks to the compact design and low weight.
• Integrated: Chip extraction system directly integrated into the router base for D 27 and D 36 hose diameters.
• Unobstructed view: Clearly visible routing area.
• Precise: Simple routing depth adjustment, accurate to 1/256" (1/10 mm).
• Steady: Torsionally rigid router base due to guide columns on both sides.
• Quick: Quick and easy bit changes.

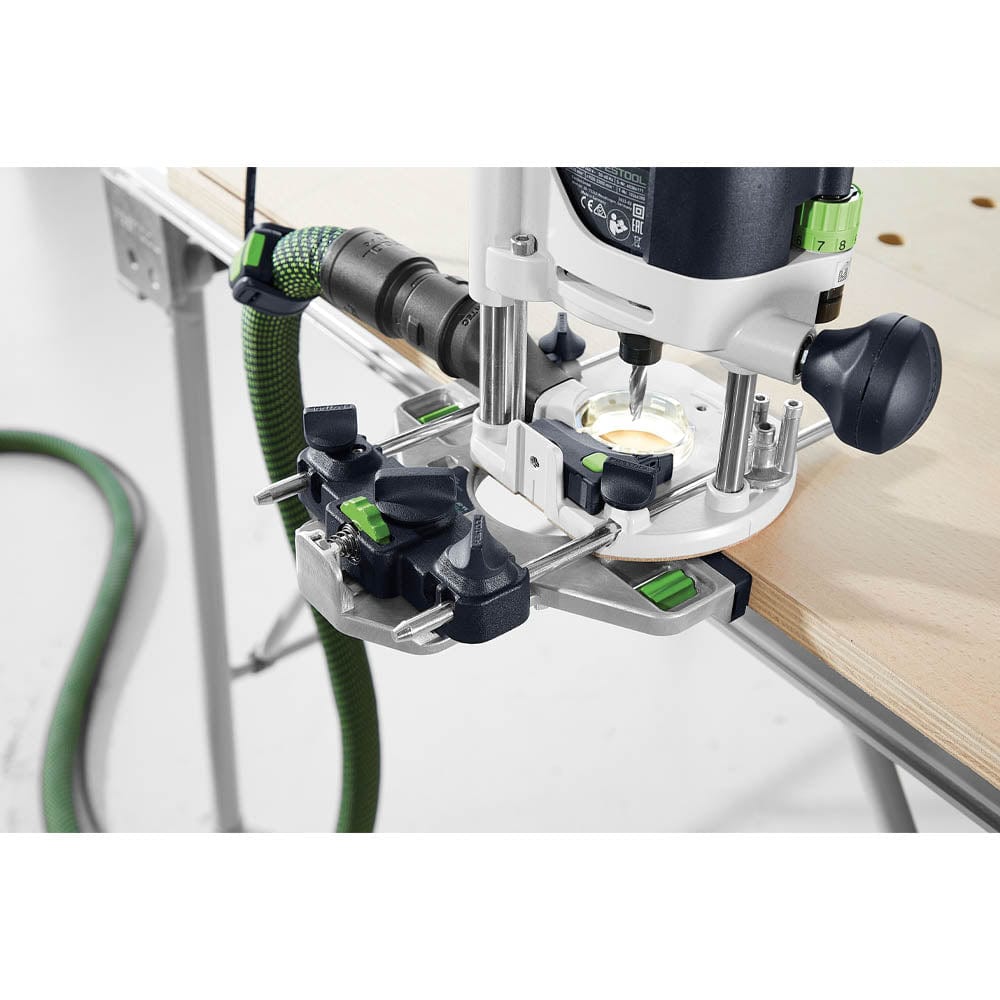

• Parallel edge guide: Quick and precise to adjust thanks to the central clamp with fine adjuster and tool-free adjustable fence pieces.

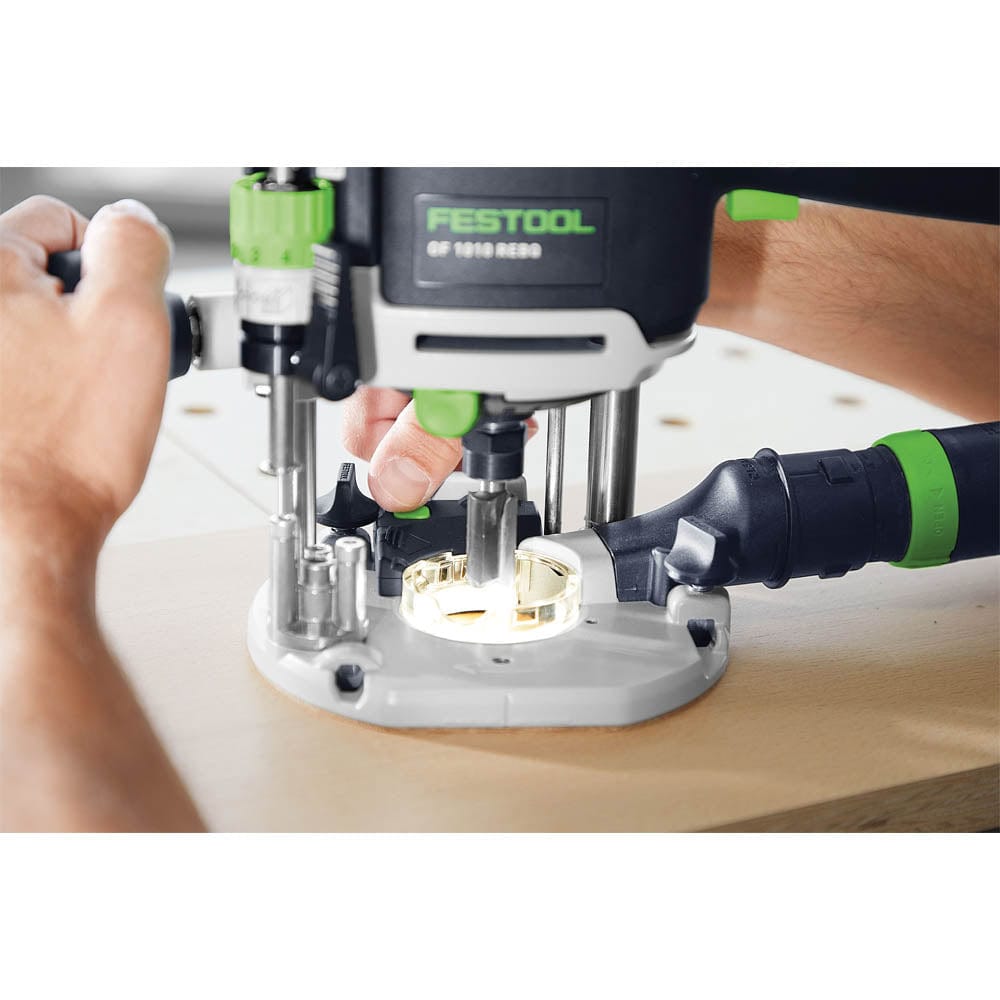

• Well lit: Thanks to the rechargeable LED work light in the base.
• Smart: Designed with restart protection.
• Material specific: MMC electronics for optimal work and temperature monitoring.

• Power consumption: 1010 watt
• Idle engine speed: 9,500 - 23,000 RPM
• Collet dia.: 1/4" - 5/16" (6 - 8 mm)
• Routing stroke: 2-1/8" (55 mm)
• Routing depth fine adjustment range: 5/16" (8 mm)
• Dust extraction connection dia.: 1-1/16" (27 mm) / 1-13/32" (36 mm)
• Cable length: 13.123 ft (4 m)
• Weight: 7.06 lbs (3.2 kg)

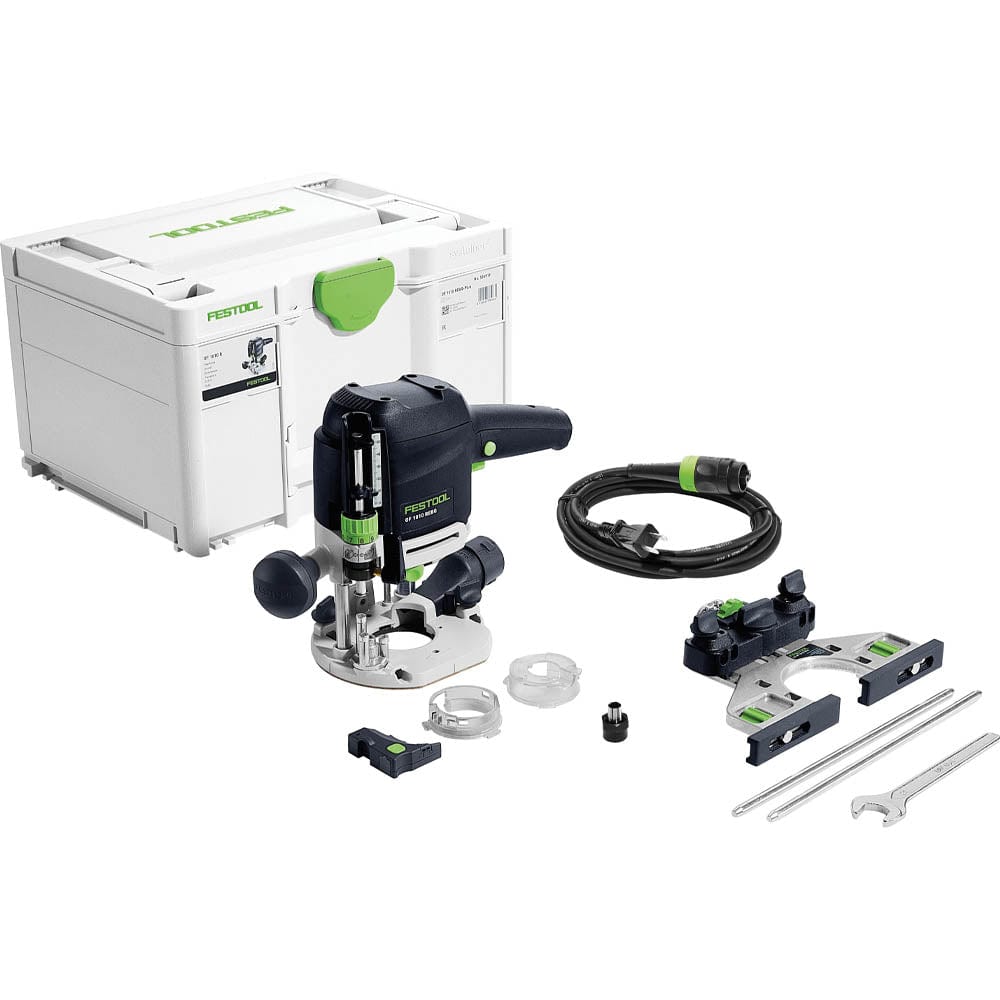

• (1) OF1010 Router
• (1) Parallel Edge Guide

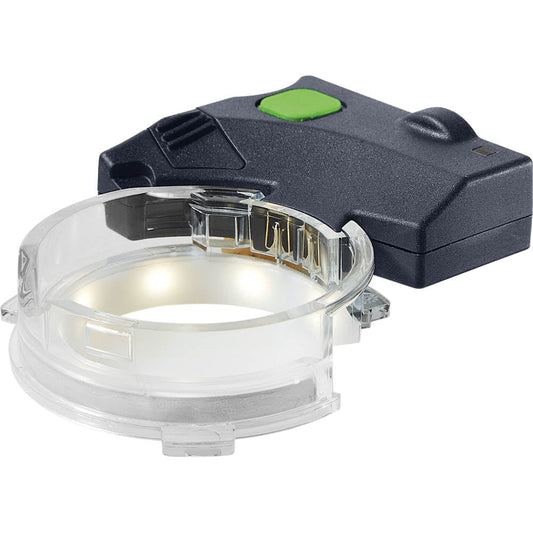

• (1) Light Module
• (1) 5/16” Collet
• (1) ¼” Collet
• (1) Collet Wrench
• (1) Plug it Power Cable

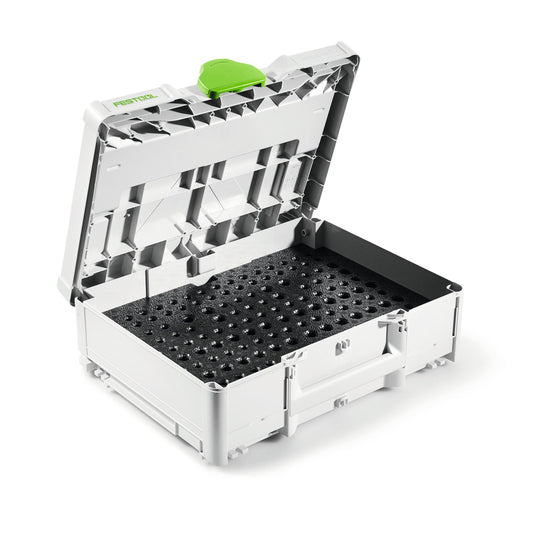

• (1) SYS3 M 237 Systainer
