Dake

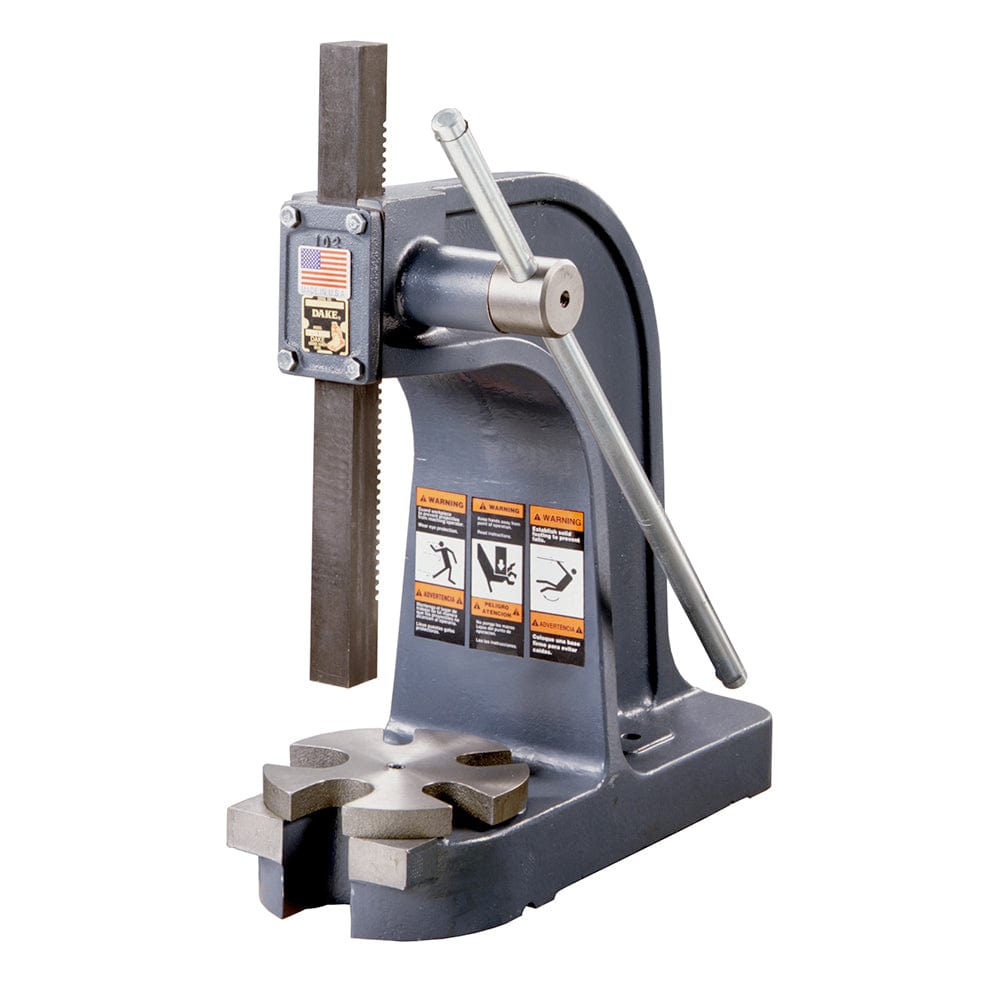

Single Leverage Arbor Press - Model 1 - 3-Ton

Item #194312 Model D-901006
$ 1,075 00
$ 1,075 00 Was $1,075.00
  • 3-Ton Single Leverage Press
1 1

Dake

Single Leverage Arbor Press - Model 1 - 3-Ton

Item #194312 Model D-901006
$ 1,075 00
$ 1,075 00 Was $1,075.00
The Dake Single Leverage Arbor Press - Model 1 - 3-Ton is built to handle demanding workshop projects with its powerful 3-Ton capacity. Designed for p. . . View More Details
Ships from Manufacturer Shipping Info
Items you may need

  • Dry Longlife Automatic Pencil

    $ 16 99
    $ 16 99 Was $16.99
    Dry Longlife Automatic Pencil alt 0

  • Cappture Safety Glasses - Over the Glasses Fit

    $ 15 99
    $ 15 99 Was $15.99
    Cappture Safety Glasses - Over the Glasses Fit alt 0

  • General Utility Mens Gloves, Coyote, Medium

    $ 18 99
    $ 18 99 Was $18.99
    General Utility Mens Gloves, Coyote, Medium alt 0

  • 12-Pocket Tool Apron - 16 oz Waxed Canvas - 26-1/2" Length

    $ 64 99
    $ 64 99 Was $64.99
    Tool Apron alt 0

  • Stealth 28 Hearing Protectors

    $ 64 99
    $ 64 99 Was $64.99
    Stealth 28 Hearing Protectors alt 0

  • F1 Dust Mask Filter (M)

    $ 6 00
    $ 6 00 Was $9.99 Save $3.99 (39% off)
    F1 Dust Mask Filter (M) alt 0

Details

The Dake Single Leverage Arbor Press - Model 1 - 3-Ton is built to handle demanding workshop projects with its powerful 3-Ton capacity. Designed for precision and durability, this single leverage arbor press is perfect for pressing, bending, stamping, and assembly tasks in metalworking and industrial applications.The most heavy duty arbor press in our single leverage line, this 3 ton press features a slotted table plate and base opening. Add an optional pedestal to make this machine a favorite in your shop.


Features:



  • Shimmed ram cap permits take-up for potential wear
  • Smooth action gears permit finite ram control
  • Friction Brake
  • Adjustable handle allows convenient handle positioning
  • Base opening and slotted table plate for arbor work


Specifications:



  • Capacity: 3 tons
  • Leverage Ratio: 36:01:00
  • Ram Size: 1-¼ x 1-¼ x 16-½”
  • Maximum Diameter Work: 14”
  • Throat: 7”
  • Largest Arbor: 2”
  • Maximum Ram to Table: 11-½”
  • Minimum Ram to Table: 10-¾”
  • Capacity Over Table 11 1/2"
  • Capacity Over Table Plate: 10 3/4"
  • Base Length: 18"
  • Base Width: 7-¼”
  • Height: 19”
  • Weight: 130 lbs


What's Included:



  • Cast Iron Base
  • Ram
  • Slotted Table Plate
  • Adjustable Handle
