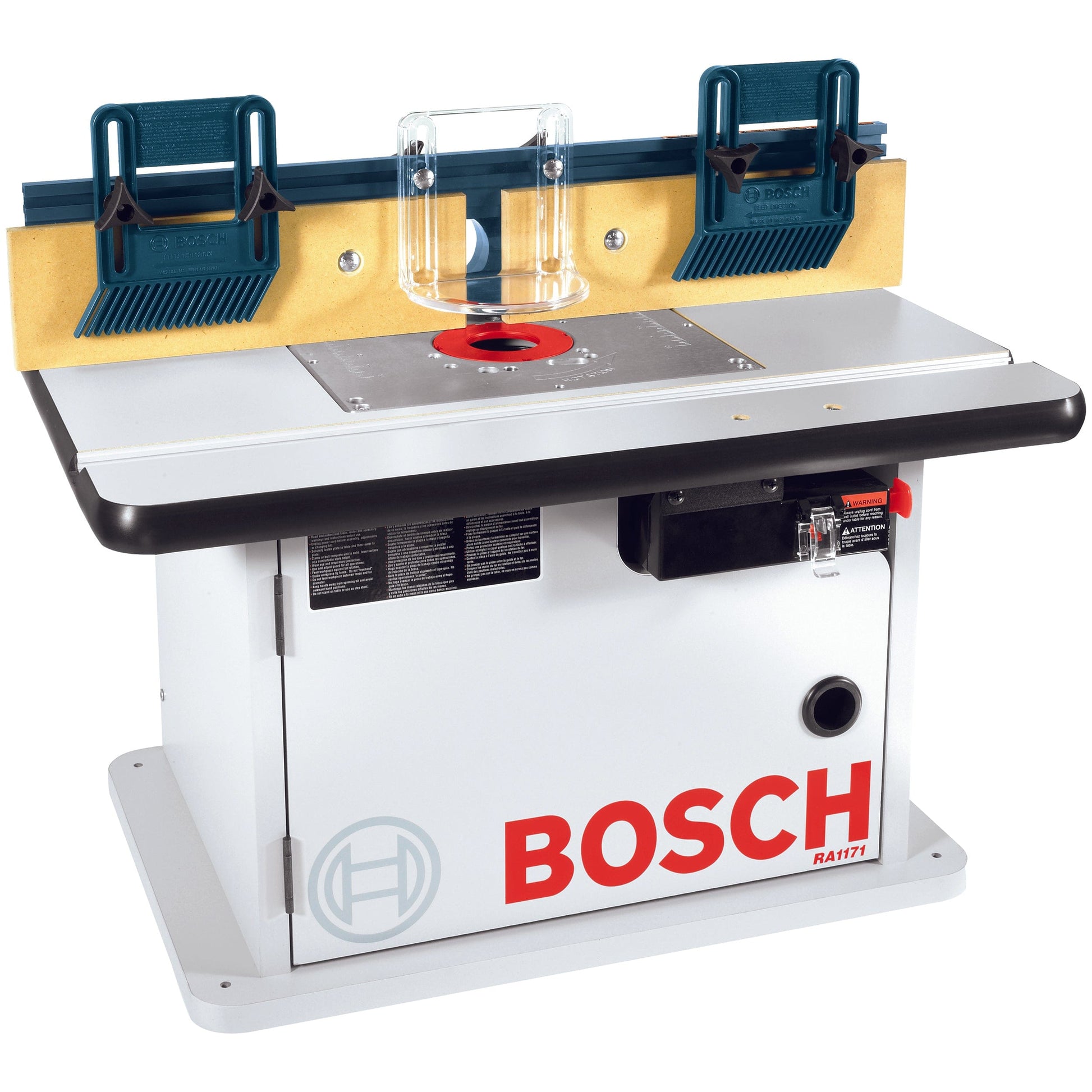

View a Larger Image of Bench Top Router Table

Bosch

Bench Top Router Table

$224.99

Don’t let the size fool you; the versatile design of the RA1171 enables woodworkers to tackle a wide variety of routing applications. With a sturdy aluminum fence that measures 4-7/8" high by 25-1/8" long, handling tall stock is not a problem, and the adjustable MDF faceplates allow for...

Items You May Need

Details

Don’t let the size fool you; the versatile design of the RA1171 enables woodworkers to tackle a wide variety of routing applications. With a sturdy aluminum fence that measures 4-7/8" high by 25-1/8" long, handling tall stock is not a problem, and the adjustable MDF faceplates allow for better support and smoother operation. The fence has a max opening of 3-3/16" and a max throat opening of 3-5/8". This unit comes with a rigid aluminum router mounting plate that will remain flat and true for precise, accurate cuts time after time and is predrilled for variety of routers, including Porter-Cable, DeWalt, Makita, Craftsman and, of course, Bosch.
The enclosed cabinet-style design efficiently removes dust and has two dust-collection ports for removing dust and debris above and below the table. Both ports are designed to fit standard-sized 2-1/2" vacuum hoses. This Router Table measures 25-1/2" wide by 14-1/2" high by 15-7/8" deep and weighs 42 pounds.
The easy-to-use featherboards attach to the fence, or the table, and are fully adjustable to fit a variety of workpieces, while providing support and control to safely feed stock across the routing table. The miter slot fits standard 3/4" accessories or any miter gauge measuring 3/4" x 3/8" deep. Bosch also includes a dual outlet switch with a 6' power cord as standard equipment.
Includes: Bench Top Router Table, Aluminum Router Mounting Plate, 3X Mounting Plate Rings, Mounting Hardware, 2X Adjustable Featherboards, Adjustable Clear Guard, Starter Pin and Guard, and 2X Outfeed Fence Shims.

Reviews

1.5 out of 5 stars
2 Reviews
  1. 1.0 out of 5 stars
    by on

    Junk

    The adjustable fence doesn't lock, and is a bear to align and tighten, spelling disaster! The plate is warped, abnormally sized, with only four points to attempt to adjust, nightmare! Save your money, buy the Kreg tabletop unit, add a shutoff and the lift, you'll be much happier!

  2. 2.0 out of 5 stars
    by on

    Meh

    Purchased this sometime ago on special along with a Bosch router from a big box store (don't tell the folks at WoodCraft). It'll get you by for a bit. Table is too small for serious work. Fence is fussy. Dust collection tolerable at best. Router plate is only okay, and the opening will not accept any other plate. Benefit - it will get you thinking about a better router table.
