Item 178948
Model MJ8X72P-0130

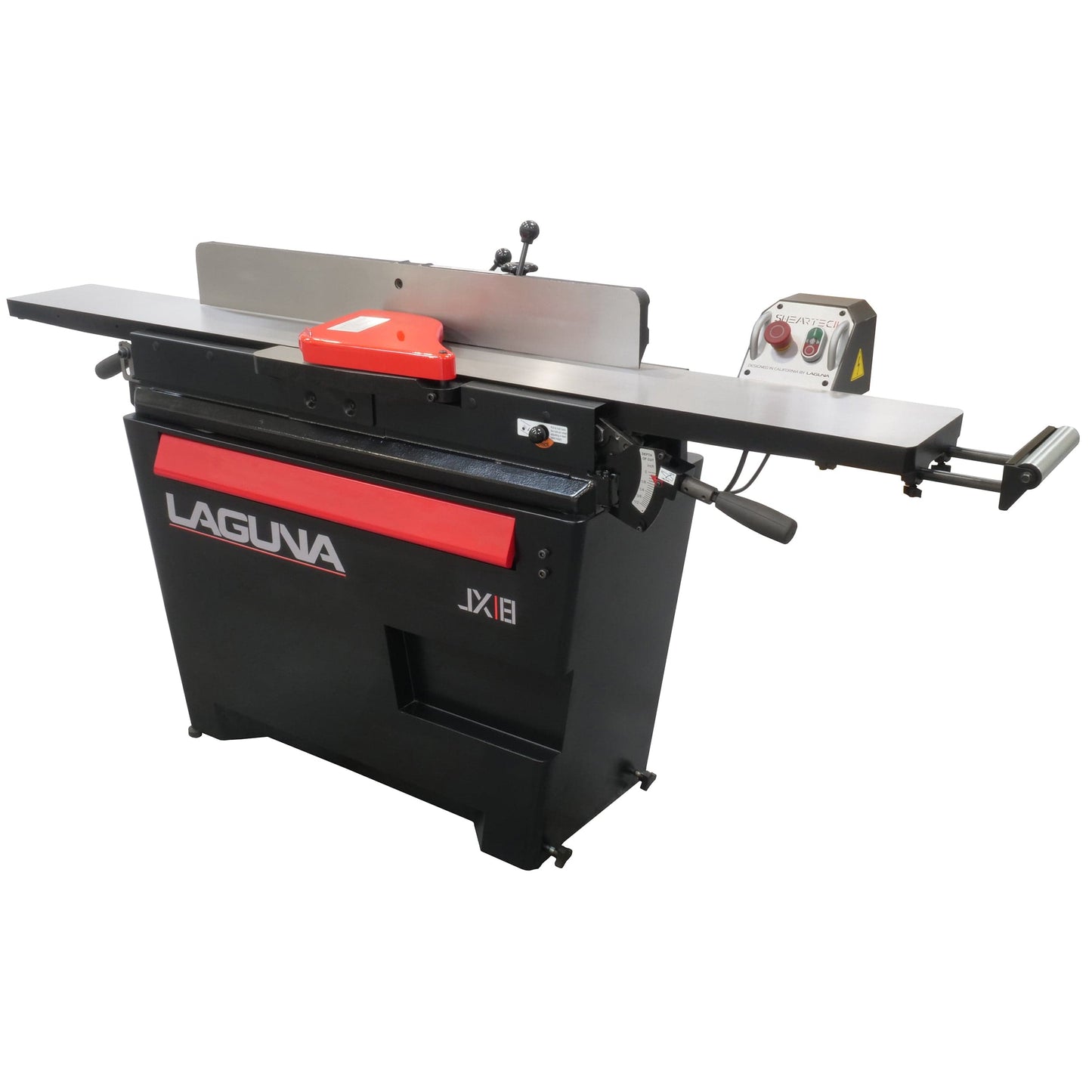

Laguna - 8" Jointer ShearTec II

$2,999.00

Estimated Ship Date February 25, 2022 check in-store availability

Protect Your Purchase With A Woodcraft Protection Program

Learn More

The Laguna JX|8 ShearTec II is loaded with great features to make jointing safer and more enjoyable. It includes parallelogram table adjustments that travel along an arc to keep the same distance...

Compare With

Details

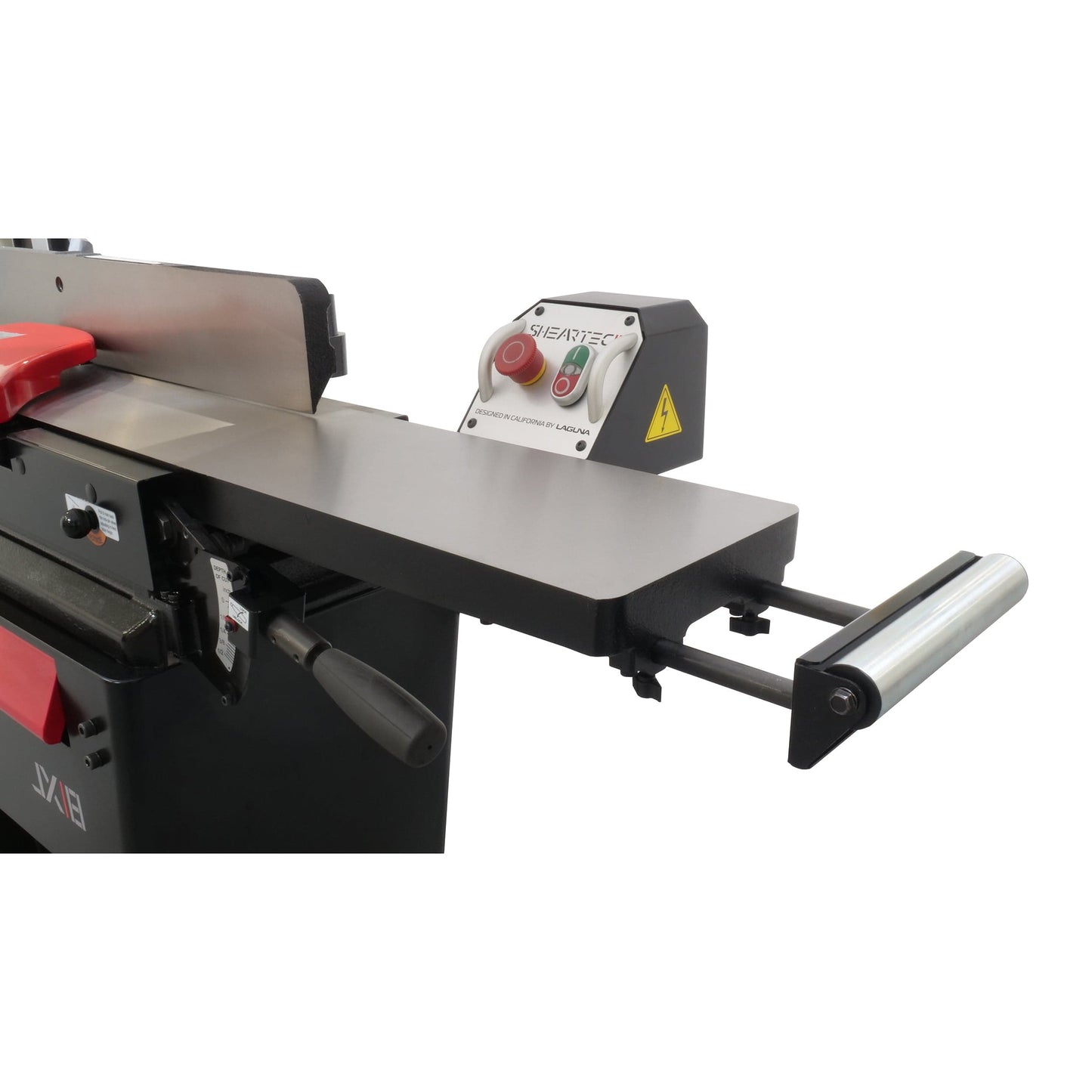

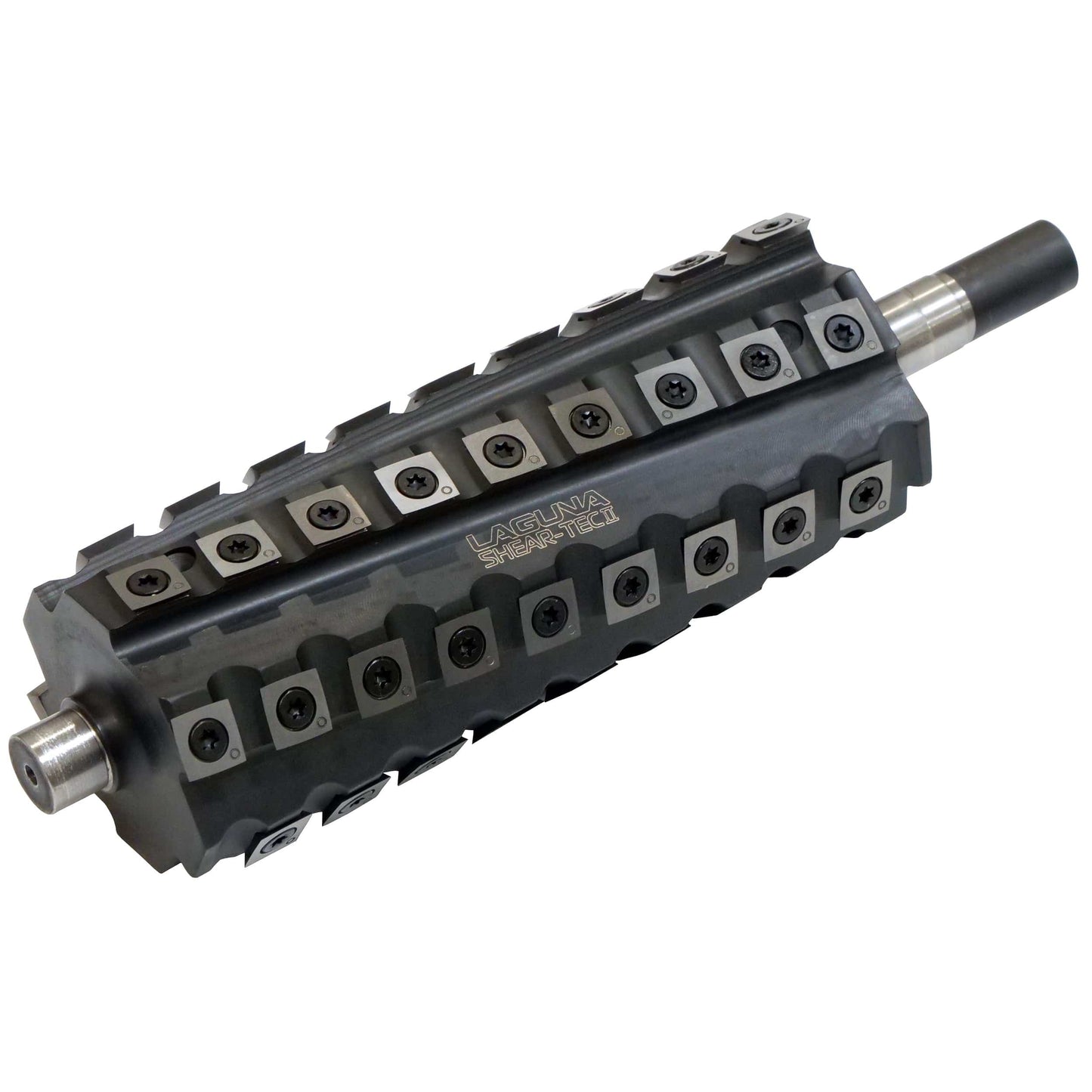

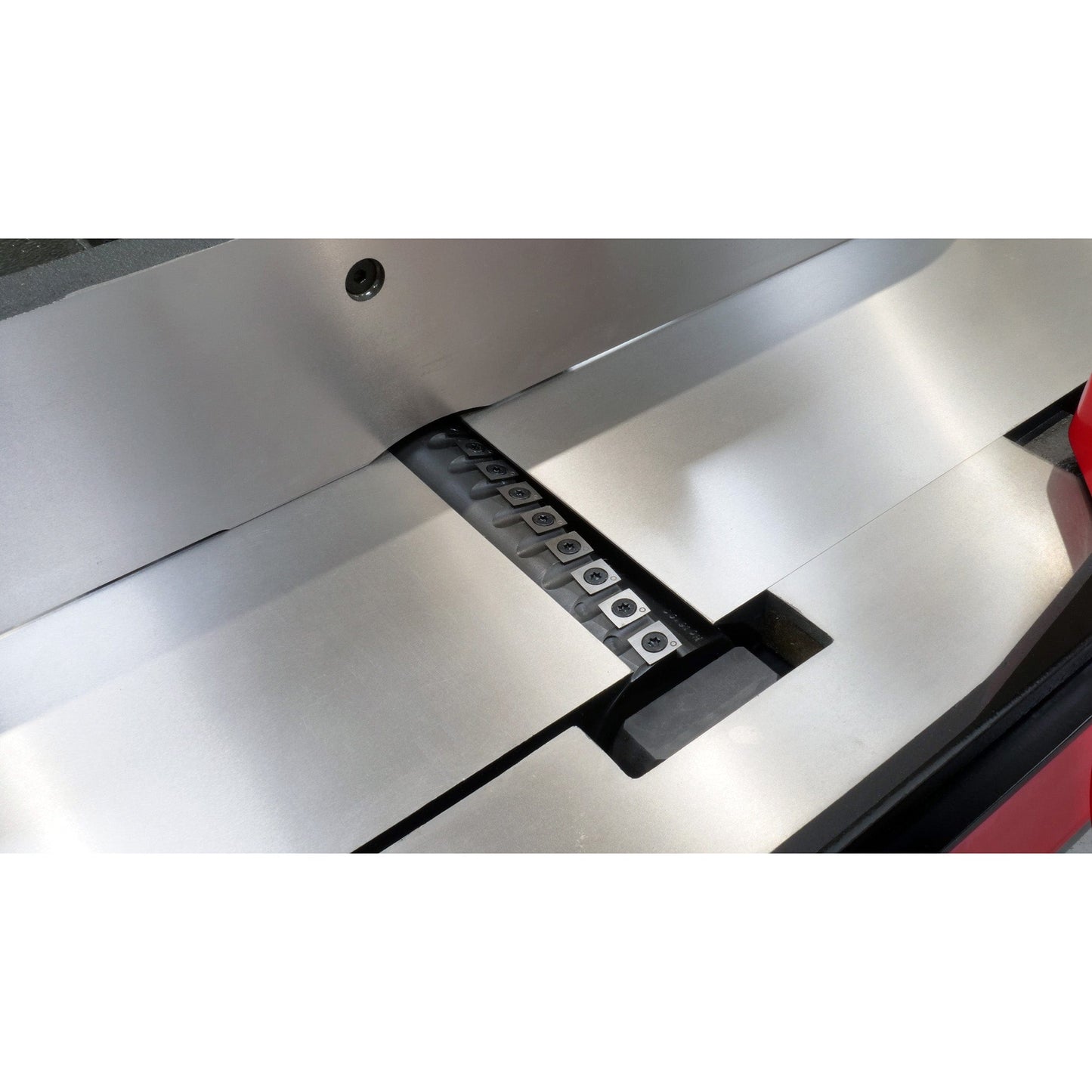

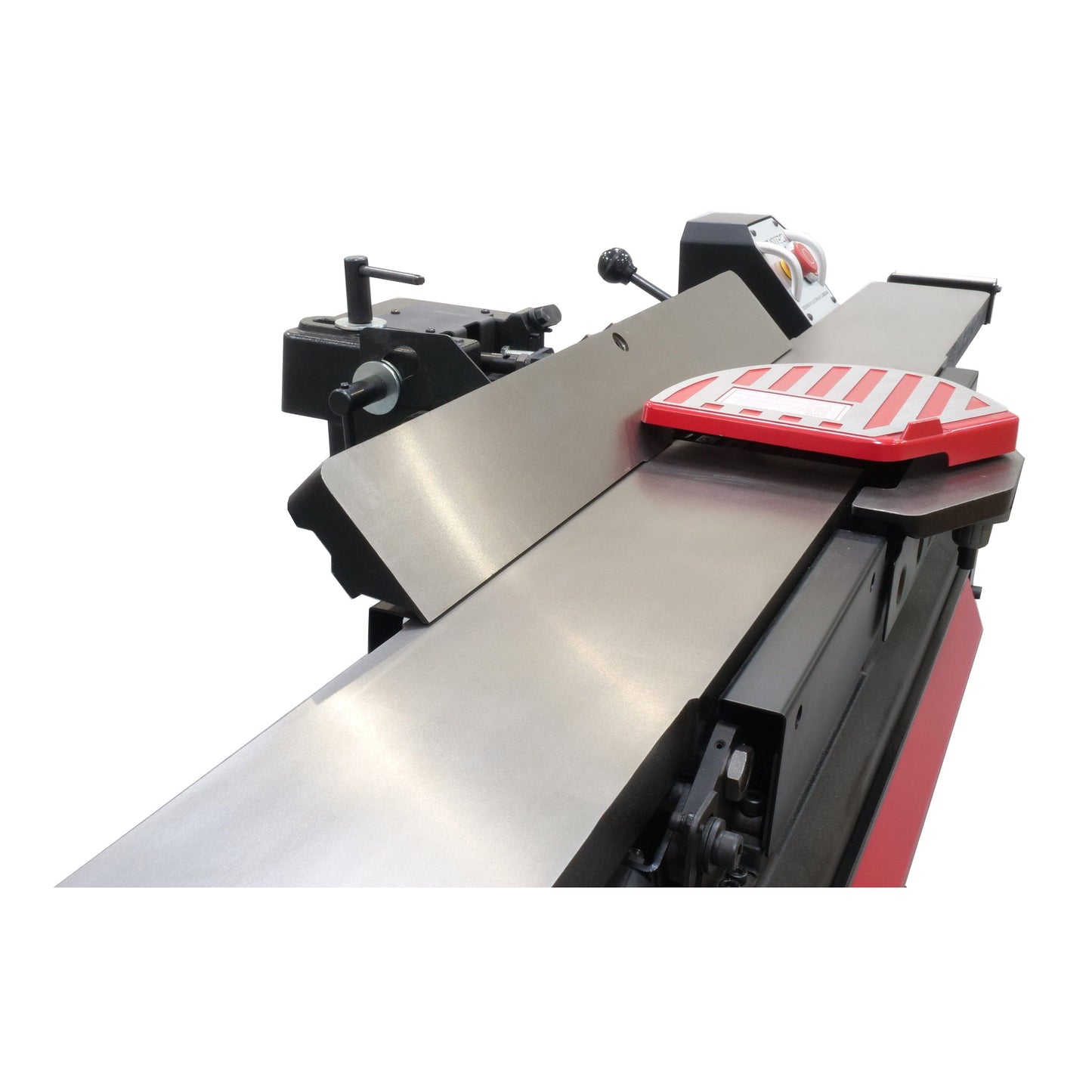

The Laguna JX|8 ShearTec II is loaded with great features to make jointing safer and more enjoyable. It includes parallelogram table adjustments that travel along an arc to keep the same distance to the cutterhead. An emergency knee stop that uses a body-length bar at knee height to shut off the jointer allows the machine operator to stop the machine quickly at any position along the front of the machine, while keeping hands on the workpiece. The new JX Series machine body has been redesigned with a toe kick to allow the user to be positioned closer to the machine tables and move safer and easier along the length of the machine. Infeed tables are fitted with a pullout support roller to help support longer materials. The ShearTec II is a 6-row carbide insert cutterhead that produces a shear cut for superior surface finish on all woods, including challenging hardwoods. The ShearTec II knives and fasteners have a T-step design to maximize clamping force on the knives, preventing knife cracking and chatter. The ShearTec II cutterhead has deep grooves that make the cutterhead very quiet and improve shaving ejection.

Specifications
  • Motor: 220V, 3 HP, 1 phase, 60 HZ, 12 amp
  • CSA: Yes
  • Bed Size: 8" x 72"
  • Infeed Table Pullout Extension: 8"
  • Rabbeting Capacity: 1/2"
  • Fence Size: 38" x 4-3/4" cast-iron
  • Fence Tilt: 45°/90°
  • Max. Depth of Cut: 1/8"
  • Table Height from Floor: 31"
  • Safety Bar Shutoff: Yes
  • Wheels Built-In: Yes
  • Dust Port Diameter: 4"
  • Number of Knives: 54 four-sided carbide knife inserts
  • Cutterhead RPM: 5,500
  • Cutterhead Diameter: 3-1/8"
  • Bed Adjustment: parallelogram
  • Overall Dimensions: 75-1/2" x 26-1/2"
  • Shipping Dimensions: 76" x 25" x 41"
  • Net Weight: 380 lbs.
  • Shipping Weight: 495 lbs.
